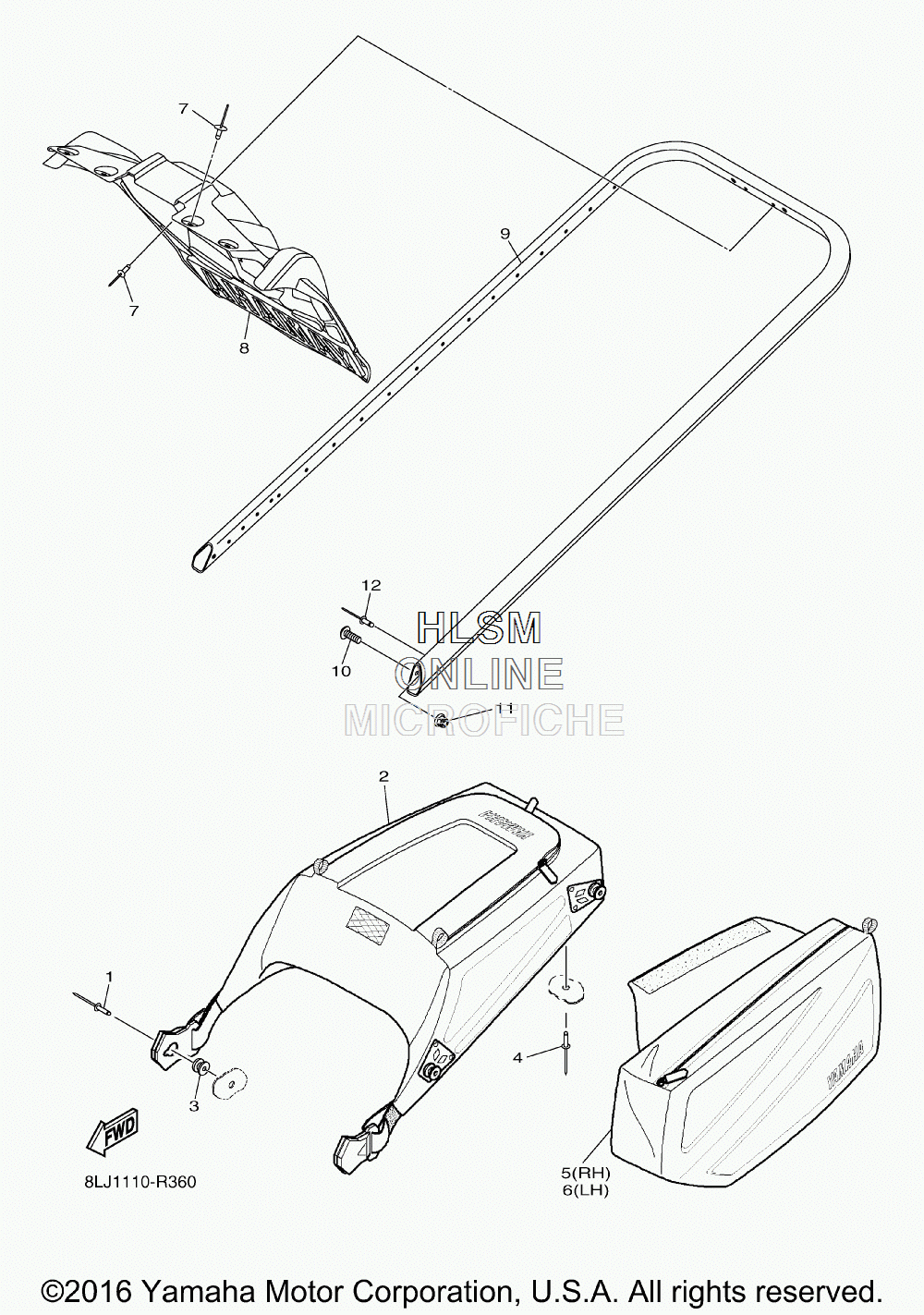

BUMPER - FRONT AND REAR для Yamaha SRVIPER S TX DX 137 - 2016 года выпуска
-
№АртикулНазвание
-
18JP-RA516-00-00 ...RIVET, 7...RIVET, 7
-
28JP-F8441-30-00 SADDLE BAG 1SADDLE BAG 1
-
38JP-F8423-00-00 STAY, SIDE BAGSTAY, SIDE BAG
-
48LJ-RA529-00-00 RIVET, 17RIVET, 17
-
58JP-F8448-00-00 SADDLEBAG 3SADDLEBAG 3
-
68JP-F8449-00-00 SADDLEBAG 4SADDLEBAG 4
-
78JP-RA524-00-00 RIVET, 15RIVET, 15
-
88JP-K7595-00-00 FLAPFLAP
-
98JX-K7541-30-00 BUMPER, REAR 1BUMPER, REAR 1
-
108JP-RA260-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
118JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
128JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
