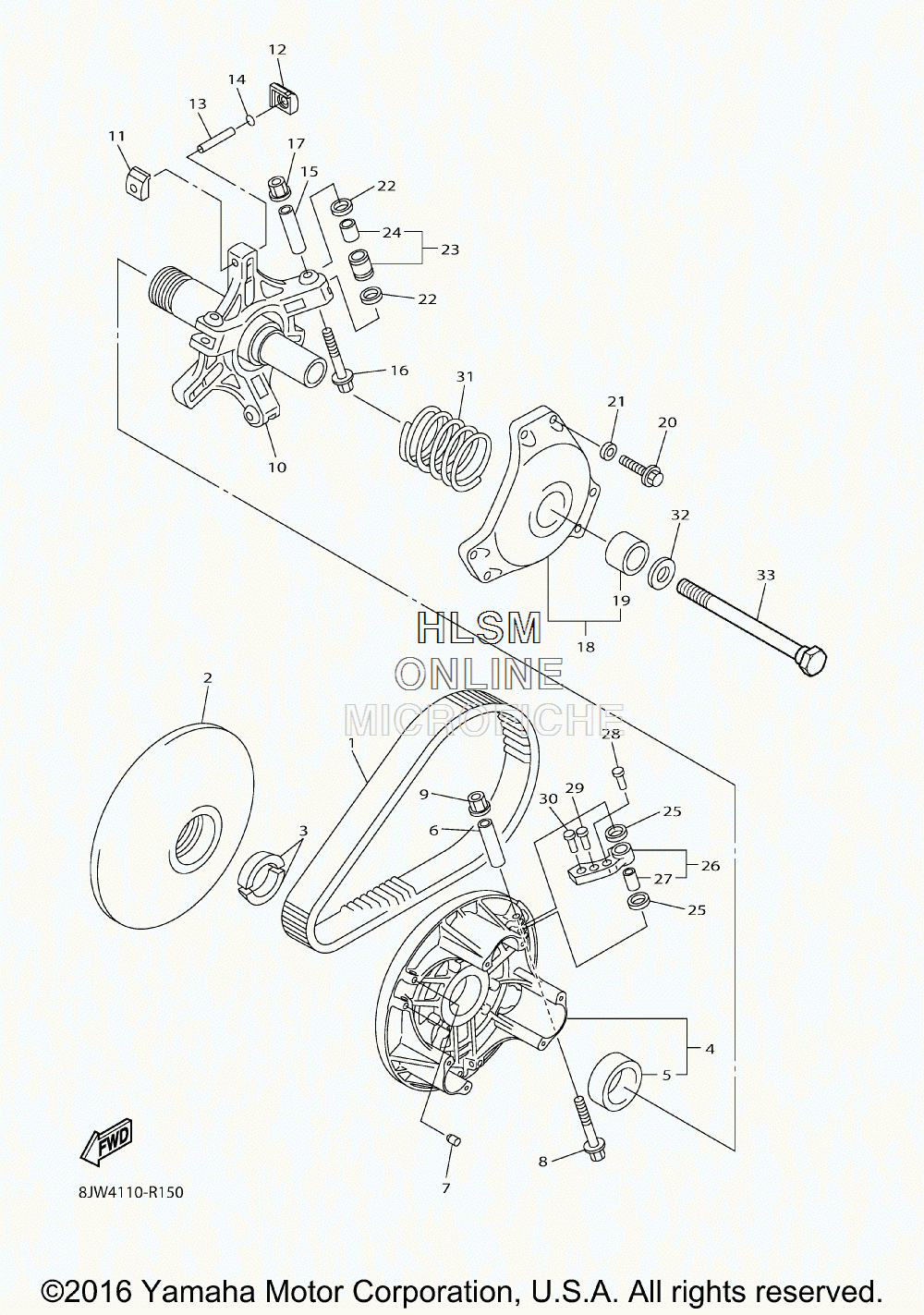

CLUTCH - DRIVE для Yamaha SRVIPER R TX SE - 2016 года выпуска
-
№АртикулНазвание
-
18JP-17641-00-00 V-BELTV-BELT
-
28FA-17611-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
38V0-17639-00-00 STOPPERSTOPPER
-
48FP-17620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
590384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
690387-0514T-00 COLLARCOLLAR
-
790113-05053-00 BOLT, SETBOLT, SET
-
890105-05644-00 BOLT, FLANGEBOLT, FLANGE
-
995602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
108ES-17640-02-00 SPIDER COMPLETESPIDER COMPLETE
-
118BW-17653-00-00 SLIDERSLIDER
-
128ES-17653-00-00 SLIDERSLIDER
-
1391609-50032-00 PIN, SPRINGPIN, SPRING
-
148ES-17655-00-00 DAMPER, SLIDERDAMPER, SLIDER
-
1590387-0514U-00 COLLARCOLLAR
-
1690105-05644-00 BOLT, FLANGEBOLT, FLANGE
-
1795602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
188DF-17630-00-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
1990380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
2097017-06030-00 BOLTBOLT
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
2290202-09227-00 WASHER, PLATEWASHER, PLATE
-
238FG-17624-20-00 ROLLER, COMPROLLER, COMP
-
2490386-09001-00 ...BUSH...BUSH
-
2590202-08204-00 WASHER, PLATEWASHER, PLATE
-
268GL-17605-00-00 WEIGHT COMPWEIGHT COMP
-
2790386-08002-00 ...BUSH...BUSH
-
2890261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) INNERRIVET, COUNTERSUNK (ST13.9MM) INNER
-
2990261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) CENTERRIVET, COUNTERSUNK (ST13.9MM) CENTER
-
3090261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) OUTERRIVET, COUNTERSUNK (ST13.3MM) OUTER
-
3190501-570A0-00 SPRING, COMPRESSION (BL-SL-BL)SPRING, COMPRESSION (BL-SL-BL)
-
3292907-16100-00 WASHERWASHER
-
338V0-17647-10-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
