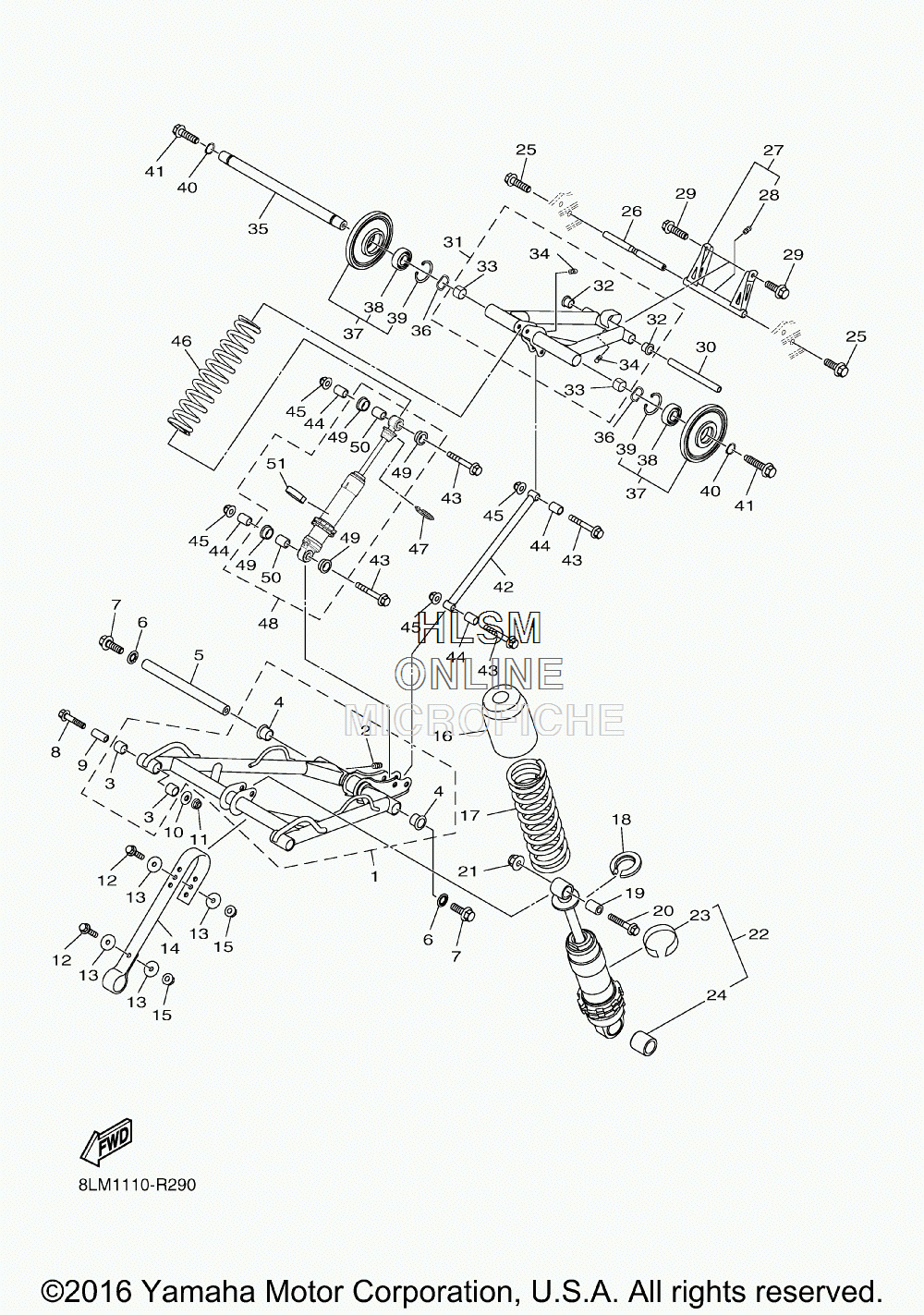

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha SRVIPER M TX 162 - 2016 года выпуска`
-
№АртикулНазвание
-
18JR-G7331-10-00 ARM, PIVOT 1ARM, PIVOT 1
-
28JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
38JP-RA812-00-00 ...BUSH, 0.751...BUSH, 0.751
-
48JP-RA814-00-00 ...BUSH, 5...BUSH, 5
-
58JP-G7486-10-00 SHAFT 4SHAFT 4
-
68JP-RA457-00-00 WASHER, TOOTH M10WASHER, TOOTH M10
-
78KG-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
88JP-RA296-00-00 SCREW, 7SCREW, 7
-
98JP-RA733-00-00 COLLAR, 16COLLAR, 16
-
108JP-RA462-00-00 WASHER, PLAINWASHER, PLAIN
-
118JP-RA360-00-00 NUT, FLANGE LOCKING M10X1.25NUT, FLANGE LOCKING M10X1.25
-
128JP-RA183-00-00 BOLT, FLANGE M6X1.0X30BOLT, FLANGE M6X1.0X30
-
138JP-RA450-00-00 WASHER, 6.87X25.4X2.32WASHER, 6.87X25.4X2.32
-
148KG-G7495-00-00 STOPPER 1STOPPER 1
-
158JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
168JP-F2211-00-00 COVERCOVER
-
178JR-G7336-00-00 SPRINGSPRING
-
188JP-F2214-00-00 GUIDE, SPRING 1GUIDE, SPRING 1
-
198KV-RA726-00-00 COLLAR, 14COLLAR, 14
-
208JP-RA1A2-00-00 BOLT, FLANGEBOLT, FLANGE
-
218JP-RA360-10-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
228JR-F2201-20-00 DAMPER SUB ASSYDAMPER SUB ASSY
-
238JP-F2259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
248JP-RA730-00-00 ...COLLAR, 22.4...COLLAR, 22.4
-
258JP-RA186-00-00 BOLT, FLANGE M8X1.25X25BOLT, FLANGE M8X1.25X25
-
268JR-G7488-00-00 SHAFT 6SHAFT 6
-
278JR-G7417-10-00 BRACKET 3BRACKET 3
-
288JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
298JP-RA198-10-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
308JR-G7487-10-00 SHAFT 5SHAFT 5
-
318JR-G7332-20-00 ARM, PIVOT 2ARM, PIVOT 2
-
328JP-RA812-00-00 ...BUSH, 0.751...BUSH, 0.751
-
338JP-RA815-00-00 ...BUSH, 6...BUSH, 6
-
348JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
358JR-G7475-10-00 SHAFT 2SHAFT 2
-
368JP-RA463-00-00 WASHER, WAVEWASHER, WAVE
-
378JR-G7312-00-00 WHEEL, SUSPENSION 2WHEEL, SUSPENSION 2
-
388JP-RAG08-00-00 ...BEARING, 3...BEARING, 3
-
398JP-RAH10-00-00 ...CIRCLIP, 4...CIRCLIP, 4
-
408JP-RAH11-00-00 CIRCLIP, 5CIRCLIP, 5
-
418JP-RA196-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
428JR-G7494-10-00 ROD, RELAYROD, RELAY
-
438JP-RA1A2-00-00 BOLT, FLANGEBOLT, FLANGE
-
448JP-RA724-10-00 COLLAR, 12COLLAR, 12
-
458JP-RA360-10-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
468KG-G7489-00-00 SPRING 1SPRING 1
-
478JP-F2214-00-00 GUIDE, SPRING 1GUIDE, SPRING 1
-
488LM-G7480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
498JP-RA804-00-00 ...BUSH, 3...BUSH, 3
-
508JP-RA728-00-00 ...COLLAR, 14.5...COLLAR, 14.5
-
518JP-F2259-70-00 ...LABEL, WARNING...LABEL, WARNING
