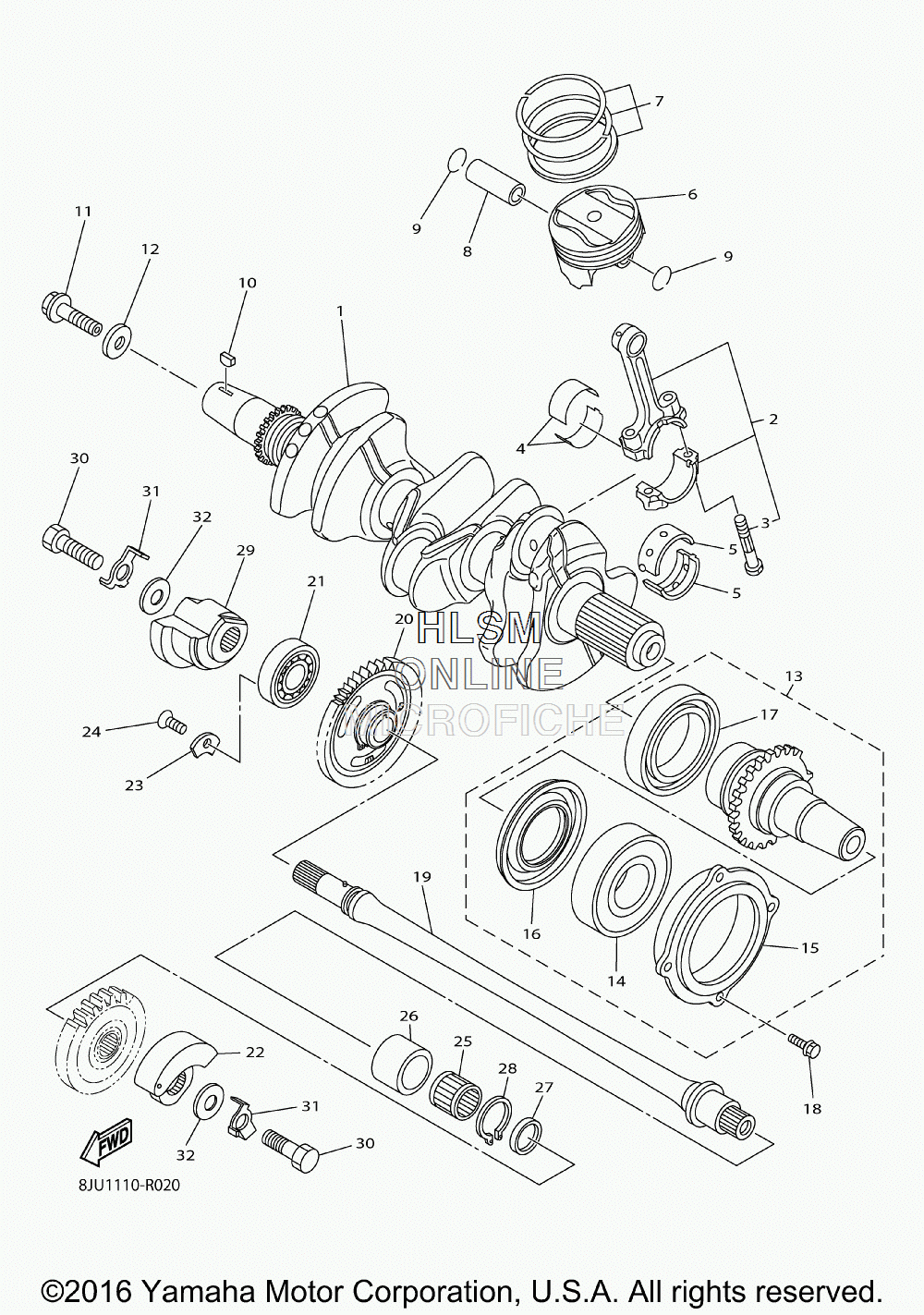

CRANKSHAFT W/ PISTON ASSY для Yamaha SRVIPER L TX SE - 2016 года выпуска`
-
№АртикулНазвание
-
12HC-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
28KH-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35PX-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
45JW-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
45JW-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
45JW-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
45JW-11656-50-00 PLANE BEARING, CONNECTING ROD (PINK)PLANE BEARING, CONNECTING ROD (PINK)
-
45JW-11656-40-00 PLANE BEARING, CONNECTING ROD (YELLOW)PLANE BEARING, CONNECTING ROD (YELLOW)
-
45JW-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
53LD-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
53LD-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
53LD-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
53LD-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (PINK)PLANE BEARING, CRANKSHAFT 1 (PINK)
-
53LD-11416-60-00 PLANE BEARING, CRANKSHAFT 1 (RED)PLANE BEARING, CRANKSHAFT 1 (RED)
-
53LD-11416-70-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
53LD-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
68KH-11631-00-00 PISTON (STD)PISTON (STD)
-
78KH-11603-01-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
82HC-11633-00-00 PIN, PISTONPIN, PISTON
-
993450-19095-00 CIRCLIPCIRCLIP
-
1090280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190105-12032-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-121H0-00 WASHER, PLATEWASHER, PLATE
-
138KH-11406-00-00 SHAFT ASSYSHAFT ASSY
-
1493306-30721-00 ...BEARING...BEARING
-
158KH-16775-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
1693102-45008-00 ...OIL SEAL...OIL SEAL
-
1793306-01003-00 ...BEARING...BEARING
-
1895812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
192HC-11407-00-00 SHAFT ASSY., 2SHAFT ASSY., 2
-
202HC-11530-00-00 BALANCER WEIGHT GEAR COMP.BALANCER WEIGHT GEAR COMP.
-
2193306-30323-00 BEARINGBEARING
-
228ES-11454-00-00 WEIGHT 1WEIGHT 1
-
234JT-15381-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2490151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2593310-42239-00 BEARINGBEARING
-
268ES-11428-01-00 BEARING 1BEARING 1
-
278ES-11478-00-00 COLLARCOLLAR
-
2893450-32152-00 CIRCLIPCIRCLIP
-
292HC-11464-00-00 WEIGHT 2WEIGHT 2
-
3097012-10025-00 BOLTBOLT
-
3190215-10003-00 WASHER, LOCKWASHER, LOCK
-
3290201-10591-00 WASHER, PLATEWASHER, PLATE
