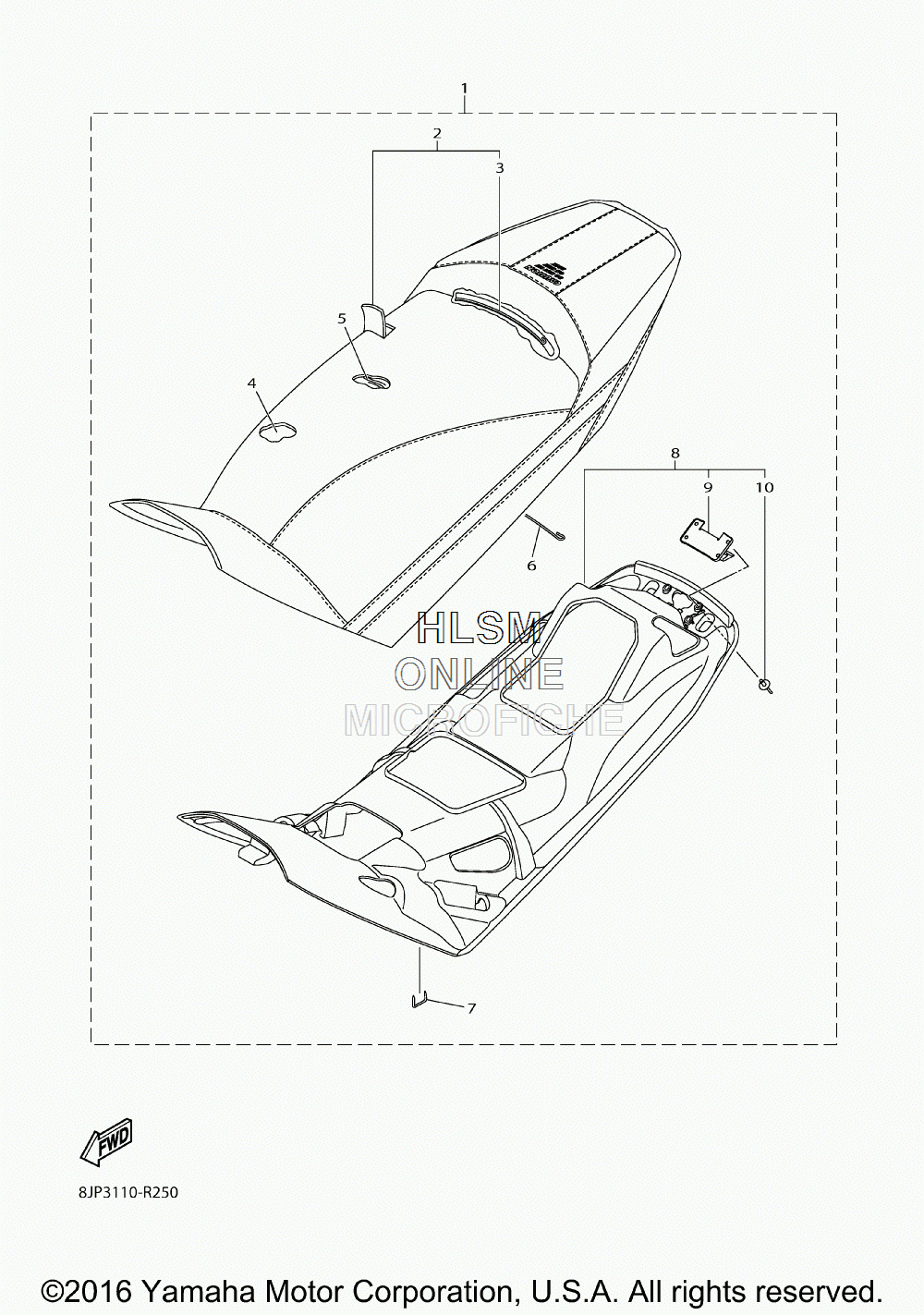

SEAT ASSY для Yamaha SRVIPER L TX DX - 2016 года выпуска`

№

Артикул

Название
1

8JP-F4710-50-00 SINGLE SEAT ASSY (YB - YAMAHA BLACK)

SINGLE SEAT ASSY (YB - YAMAHA BLACK)

0 ₽
1

8JP-F4710-60-00 SINGLE SEAT ASSY (VRC1 - VIVID RED)

SINGLE SEAT ASSY (VRC1 - VIVID RED)

0 ₽
2

8JP-F470F-60-00 ......SEAT COVER COMP. (VRC1 - VIVID RED)

......SEAT COVER COMP. (VRC1 - VIVID RED)

0 ₽
2

8JP-F470F-50-00 ......SEAT COVER COMP. (YB - YAMAHA BLACK)V

......SEAT COVER COMP. (YB - YAMAHA BLACK)V

0 ₽
3

8JP-F473J-00-00 ......WIRE

......WIRE

2 200 ₽
4

8JP-F4713-00-00 ...CUSHION

...CUSHION

57 170 ₽
5

8JP-H2951-00-00 ...HEATER, SEAT 1

...HEATER, SEAT 1

83 940 ₽
6

8JP-F1664-00-00 ...WIRE, 2

...WIRE, 2

940 ₽
7

8JM-F473U-00-00 ...STAPLE

...STAPLE

67 400 ₽
8

8JP-F470E-00-00 ...BOTTOM PLATE COMP.

...BOTTOM PLATE COMP.

25 510 ₽
9

8JP-F475H-00-00 ......BRACKET, SEAT LEVER 1

......BRACKET, SEAT LEVER 1

8 500 ₽
10

8JP-RA523-00-00 ......RIVET, 14

......RIVET, 14

620 ₽
