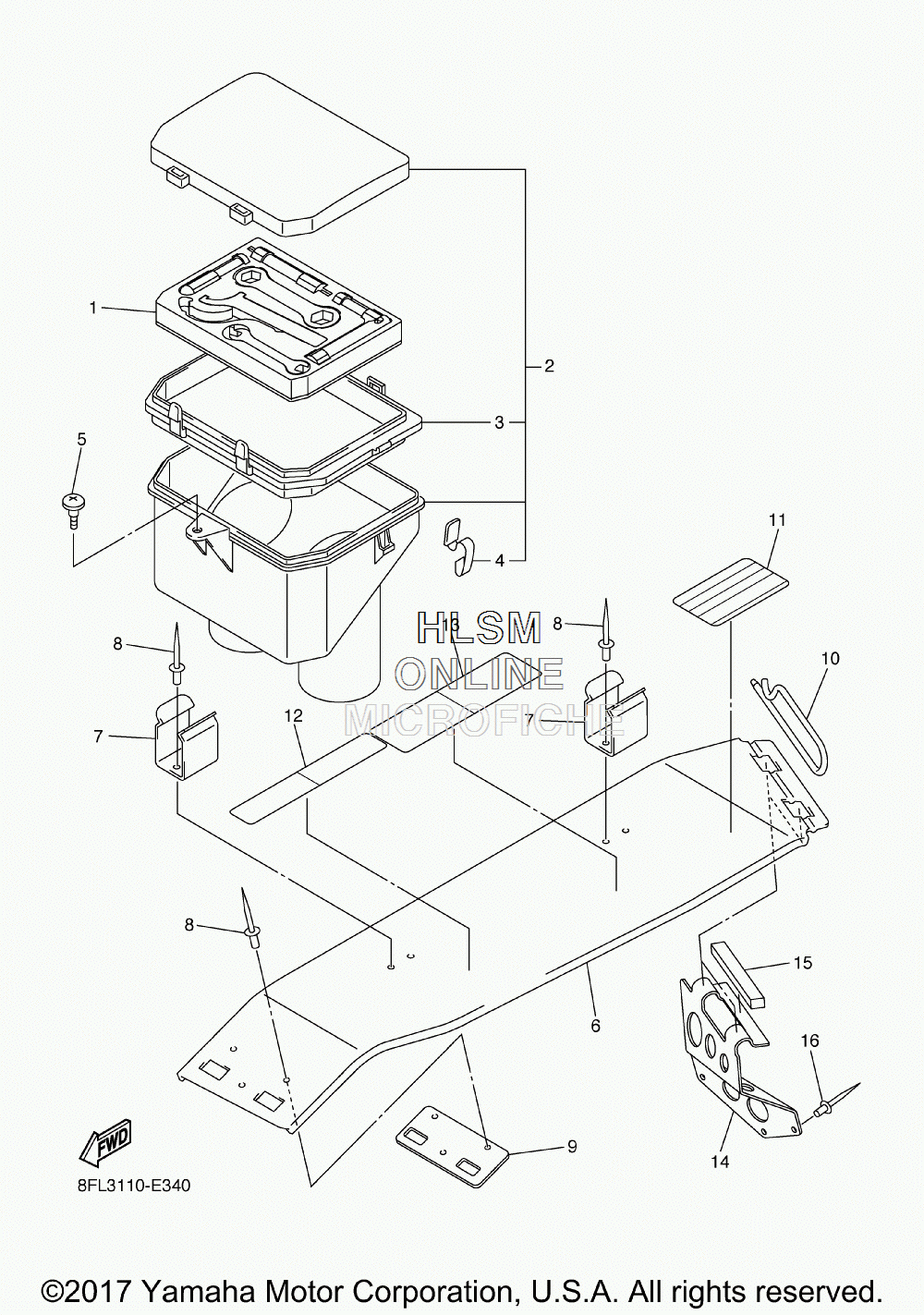

BELT GUARD W/ TOOL BOX для Yamaha RS VENTURE - 2016 года выпуска`
-
№АртикулНазвание
-
18ES-28100-00-00 TOOL KITTOOL KIT
-
28FA-77390-00-00 LUGGAGE BOX ASSYLUGGAGE BOX ASSY
-
38FA-77381-00-00 ...BOX, TOOL...BOX, TOOL
-
48FA-2814E-00-00 ...HOOK...HOOK
-
590154-06009-00 SCREW, BINDINGSCREW, BINDING
-
68FA-77311-02-00 GUARD, DRIVEGUARD, DRIVE
-
78CR-77338-00-00 STAY, BELTSTAY, BELT
-
890267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
98FA-77373-00-00 PROTECTORPROTECTOR
-
108CR-77384-01-00 PINPIN
-
118BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
128ES-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
-
138ES-47578-00-00 LABEL 1LABEL 1
-
148FA-21973-00-00 HOOKHOOK
-
158CR-77319-00-00 DAMPER 1DAMPER 1
-
1690267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
