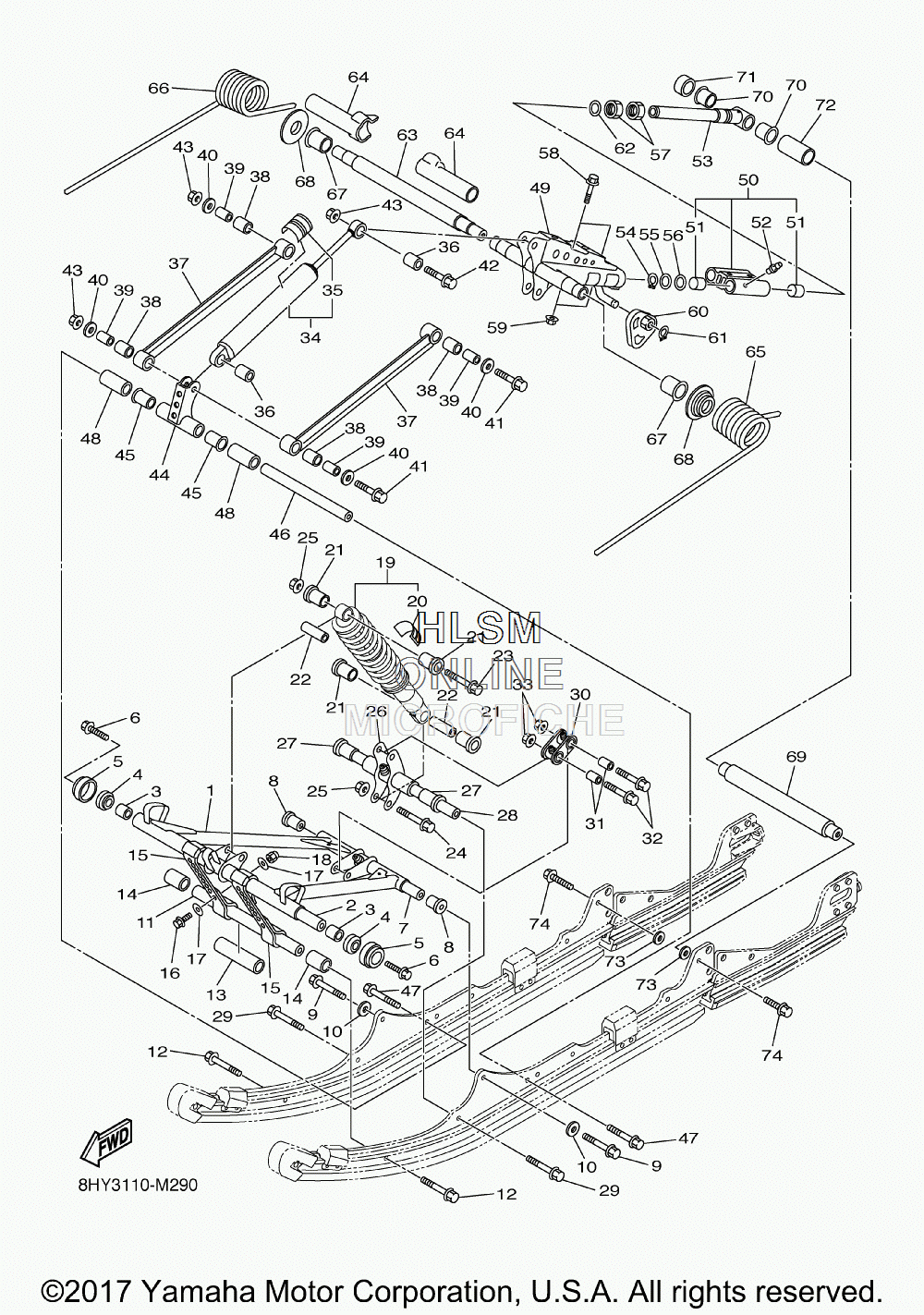

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha RS VENTURE TF E-BAT - 2016 года выпуска
-
№АртикулНазвание
-
18HP-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28HF-47465-00-00 SHAFT 1SHAFT 1
-
390383-23002-00 BUSH, FORMEDBUSH, FORMED
-
493108-37011-00 OIL SEALOIL SEAL
-
58HF-47341-00-00 SPACERSPACER
-
690109-10030-00 BOLTBOLT
-
78ES-47486-00-00 SHAFT 4SHAFT 4
-
890387-10022-00 COLLARCOLLAR
-
990105-10329-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-10072-00 WASHER, PLATEWASHER, PLATE
-
118ES-47485-00-00 SHAFT 3SHAFT 3
-
1290105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
1390387-19002-00 COLLARCOLLAR
-
1490387-19001-00 COLLARCOLLAR
-
158HF-47495-00-00 STOPPER 1STOPPER 1
-
1697002-06025-00 BOLTBOLT
-
1790201-06081-00 WASHER, PLATEWASHER, PLATE
-
1895702-06300-00 NUT, NYLONNUT, NYLON
-
198HP-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
204AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
2190381-14101-00 BUSH, SOLIDBUSH, SOLID
-
2290387-105G5-00 COLLARCOLLAR
-
2395812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2490101-10738-00 BOLTBOLT
-
2595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
268HF-47349-01-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2790386-20001-00 BUSHBUSH
-
288GN-47487-00-00 SHAFT 5SHAFT 5
-
2990105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
308FK-47416-01-00 BRACKET 2BRACKET 2
-
3190387-10024-00 COLLARCOLLAR
-
3295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
348HP-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
354AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
3690387-10023-00 COLLARCOLLAR
-
378HF-47494-00-00 ROD, RELAYROD, RELAY
-
3890386-16001-00 BUSHBUSH
-
3990387-101A1-00 COLLARCOLLAR
-
4090201-10043-00 WASHER, PLATEWASHER, PLATE
-
4195812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
4295812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
4395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
448FK-47349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
4590386-20001-00 BUSHBUSH
-
468HP-47487-00-00 SHAFT 5SHAFT 5
-
4790105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
488HP-47319-00-00 COLLARCOLLAR
-
498HF-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
508ES-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5190380-24001-00 ...BUSH, SOLID...BUSH, SOLID
-
5293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
538HF-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
5493410-24092-00 CIRCLIPCIRCLIP
-
5590201-24015-00 WASHER, PLATEWASHER, PLATE
-
5690202-25001-00 WASHER, PLATEWASHER, PLATE
-
578ES-48142-00-00 STOPPER, ADJUSTING NUTSTOPPER, ADJUSTING NUT
-
5895812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
5995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
608ES-47447-00-00 HOOK 2HOOK 2
-
6199009-14400-00 CIRCLIPCIRCLIP
-
6290202-25002-00 WASHER, PLATEWASHER, PLATE
-
638FM-47475-01-00 SHAFT 2SHAFT 2
-
648HF-47445-00-00 PROTECTORPROTECTOR
-
658FM-47473-00-00 SPRING, REAR 1 (K=2800NMM/DEG)SPRING, REAR 1 (K=2800NMM/DEG)
-
668FM-47474-00-00 SPRING, REAR 2 (K=2800NMM/DEG)SPRING, REAR 2 (K=2800NMM/DEG)
-
6790381-28108-00 BUSH, SOLIDBUSH, SOLID
-
688ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
698HF-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
7090386-25001-00 BUSHBUSH
-
7190387-26002-00 COLLARCOLLAR
-
7290387-26003-00 COLLARCOLLAR
-
7390201-10028-00 WASHER, PLATEWASHER, PLATE
-
7495817-10030-00 BOLT, FLANGEBOLT, FLANGE
