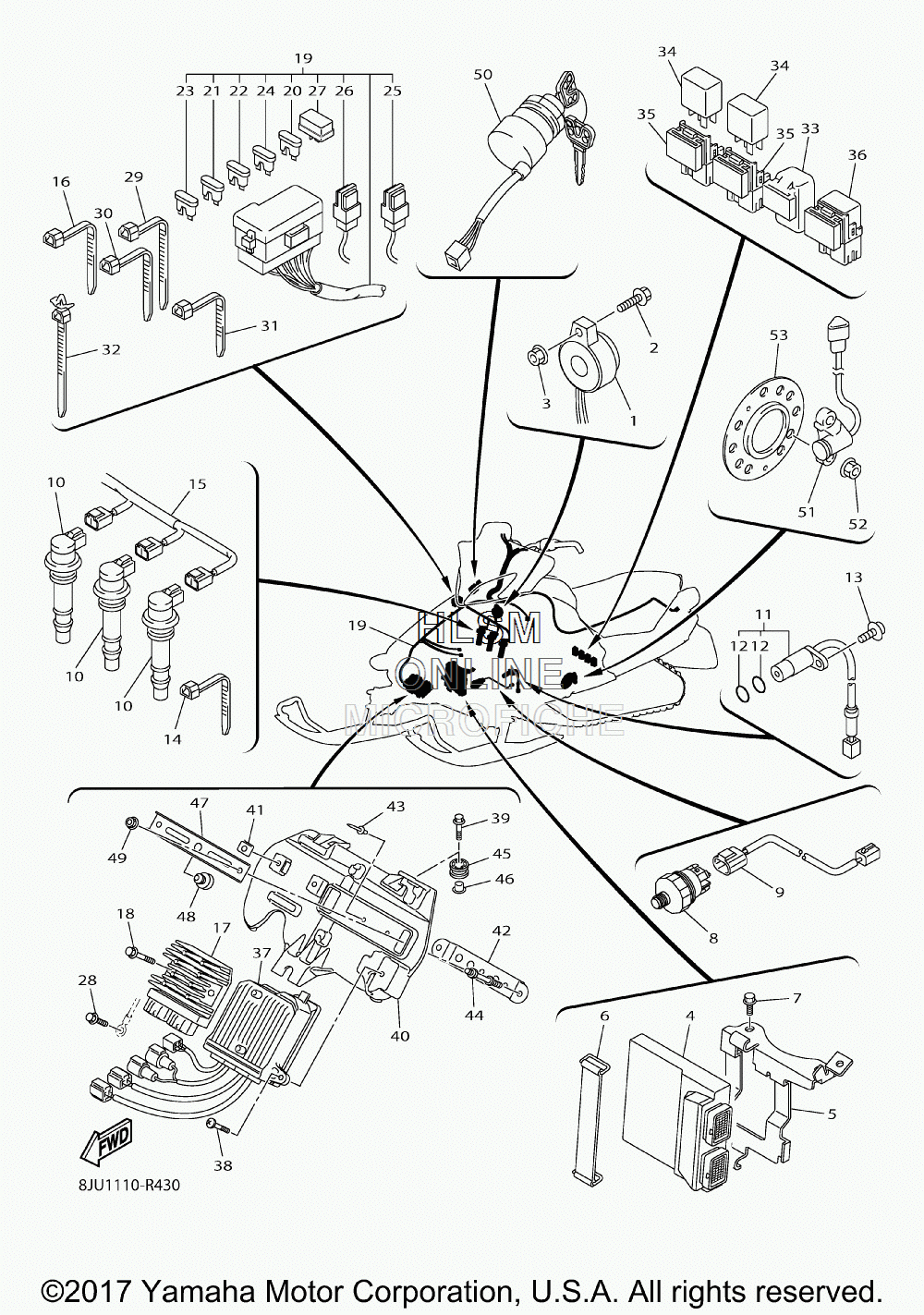

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha RS VECTOR XTX LE - 2016 года выпуска`
-
№АртикулНазвание
-
18GL-83383-00-00 BUZZERBUZZER
-
290159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
395702-05500-00 NUT, FLANGENUT, FLANGE
-
48JU-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
58HF-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
62T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
795822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
88FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
98GL-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
108ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
118GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
125VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
1390110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490464-13073-00 CLAMPCLAMP
-
158HV-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1690464-13073-00 CLAMPCLAMP
-
171D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1895802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
198JU-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
205JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
215JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
225JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
235JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
245JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
254FM-82151-00-00 ...FUSE (30A)...FUSE (30A)
-
265PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
274WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2895802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2990464-15195-00 CLAMPCLAMP
-
3090464-13073-00 CLAMPCLAMP
-
3190464-13077-00 CLAMPCLAMP
-
3290464-12036-00 CLAMPCLAMP
-
335DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
348HG-81951-10-00 RELAY ASSY (8HG-10)RELAY ASSY (8HG-10)
-
358HG-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
368GN-81950-00-00 RELAY ASSY (8GN-00)RELAY ASSY (8GN-00)
-
378HG-859A0-11-00 POWER STEERING CONTROL UNIT ASSPOWER STEERING CONTROL UNIT ASS
-
3898902-06020-00 SCREW, BINDSCREW, BIND
-
3990119-06105-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
408HG-2830X-00-00 BRACKET, CONTROL UNITBRACKET, CONTROL UNIT
-
4190183-06053-00 NUT, SPRINGNUT, SPRING
-
428HG-2836A-00-00 BRACKET 1BRACKET 1
-
4390267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
448HG-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
4590480-12023-00 GROMMETGROMMET
-
4690387-06203-00 COLLARCOLLAR
-
478HG-81948-00-00 BRACKETBRACKET
-
4822W-24741-00-00 PAD, SEATPAD, SEAT
-
4995702-06500-00 NUT, FLANGENUT, FLANGE
-
508HV-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
518HG-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
5295702-08300-00 NUT, NYLONNUT, NYLON
-
538EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
