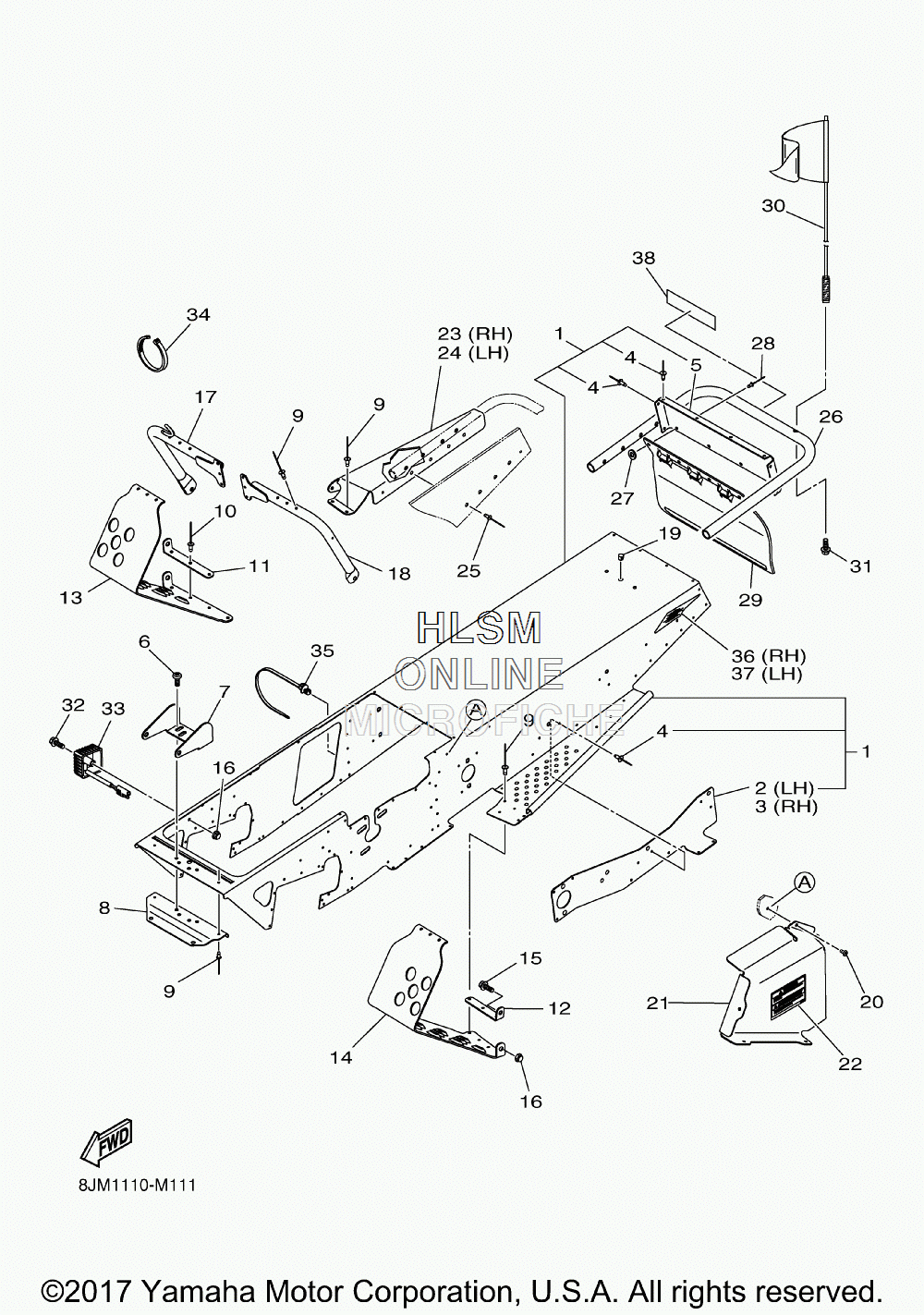

TUNNEL EXTENSION ASSEMBLY для Yamaha SRX 120 - 2015 года выпуска`
-
№АртикулНазвание
-
18JM-F1910-00-00 FRAME COMP.FRAME COMP.
-
28JM-F1943-00-00 ...BRACKET, MAIN TRACK 1 LEFT...BRACKET, MAIN TRACK 1 LEFT
-
38JM-F1953-00-00 ...BRACKET, MAIN TRACK 2 RIGHT...BRACKET, MAIN TRACK 2 RIGHT
-
48JM-RA504-00-00 ...RIVET, ROUND 1...RIVET, ROUND 1
-
58JM-F1923-10-00 ......REINEFORCEMENT, FRAME REAR......REINEFORCEMENT, FRAME REAR
-
68JM-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
78JM-F1979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
88JM-F191D-00-00 FRAME, FRONT ENDFRAME, FRONT END
-
98JM-RA500-00-00 RIVET, BLIND 1RIVET, BLIND 1
-
108JM-RA505-00-00 RIVET, BLIND 5RIVET, BLIND 5
-
118JM-F1931-00-00 REINFORCEMENT, FRAME FRONT 2 RIGHTREINFORCEMENT, FRAME FRONT 2 RIGHT
-
128JM-F1921-00-00 REINEFORCEMENT, FRAME REAR 1 LEFTREINEFORCEMENT, FRAME REAR 1 LEFT
-
138JM-F7421-00-00 FOOTREST 2 RIGHTFOOTREST 2 RIGHT
-
148JM-F7411-00-00 FOOTREST 1 LEFTFOOTREST 1 LEFT
-
158JM-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
168JM-RA300-00-00 NUT, SELF-LOCKING 1/4-20NUT, SELF-LOCKING 1/4-20
-
178JM-F192E-00-00 REINFORCEMENT, FRAME SIDE RIGHTREINFORCEMENT, FRAME SIDE RIGHT
-
188JM-F1929-00-00 REINFORCEMENT, FRAME SIDE LEFTREINFORCEMENT, FRAME SIDE LEFT
-
198JM-RA601-00-00 PLUG, 2PLUG, 2
-
208JM-RA203-00-00 SCREW, TAPPING 10-16X1/2SCREW, TAPPING 10-16X1/2
-
218JM-E3327-00-00 COVER, PUMP GEARCOVER, PUMP GEAR
-
228JM-K7762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
238JM-K7544-00-00 BUMPER, REAR 4 RIGHTBUMPER, REAR 4 RIGHT
-
248JM-K7543-00-00 BUMPER, REAR 3 LEFTBUMPER, REAR 3 LEFT
-
258JM-RA507-00-00 RIVET, BLIND 6RIVET, BLIND 6
-
268JM-K7541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
278JM-RA411-00-00 .WASHER, PLAIN 0.194.WASHER, PLAIN 0.194
-
288JM-RA508-00-00 RIVET, BLIND 7RIVET, BLIND 7
-
298JM-K7595-00-00 FLAPFLAP
-
308JM-RAY04-01-00 FLAG ASSY.FLAG ASSY.
-
318JM-RA104-00-00 BOLT, FLANGE 5/16-18X1.25BOLT, FLANGE 5/16-18X1.25
-
328JM-RA138-00-00 BOLT, FLANGE 1/4-20X1.5BOLT, FLANGE 1/4-20X1.5
-
338JM-H1910-00-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
348JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
358JM-RAB02-00-00 CLAMP, 3CLAMP, 3
-
368JM-H511F-00-00 BASE, REFLECTOR 3 RIGHTBASE, REFLECTOR 3 RIGHT
-
378JM-H511E-00-00 BASE, REFLECTOR 2 LEFTBASE, REFLECTOR 2 LEFT
-
388JM-F153A-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
