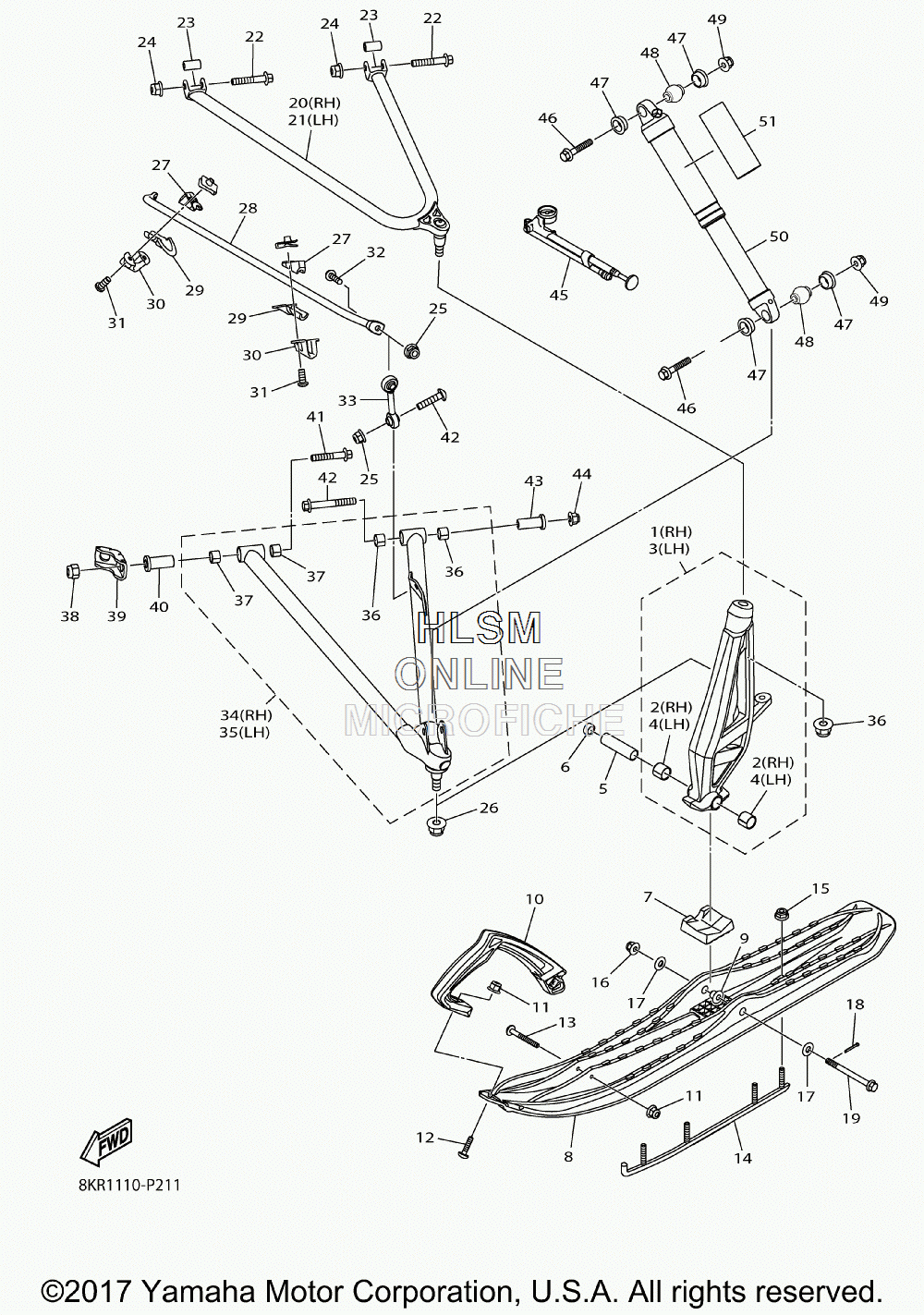

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SRVIPER X TX LE - 2015 года выпуска`
-
№АртикулНазвание
-
18KR-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
28JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
38KR-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
48JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
58JP-RA731-00-00 COLLAR, 75COLLAR, 75
-
68JP-RA718-00-00 COLLAR, 6COLLAR, 6
-
78JP-F3743-00-00 STOPPER 1STOPPER 1
-
88JR-F3711-00-00 SKI 1SKI 1
-
98JP-RA722-00-00 COLLAR, 10COLLAR, 10
-
108JP-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
118JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
128JP-RA263-00-00 SCREW, M6X1.0X25SCREW, M6X1.0X25
-
138JP-RA267-00-00 SCREW, M6X1.0X50SCREW, M6X1.0X50
-
148JP-F3731-00-00 RUNNER 1RUNNER 1
-
158JP-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
168JP-RA359-00-00 NUT, FLANGE LOCKING M10X1.25NUT, FLANGE LOCKING M10X1.25
-
178JP-RA443-00-00 WASHER, 10.98X28.00X1.6WASHER, 10.98X28.00X1.6
-
188JP-RAK01-00-00 PIN, 1PIN, 1
-
198JP-RA193-00-00 BOLT, FLANGE M10-1.25X137BOLT, FLANGE M10-1.25X137
-
208KR-F355A-00-00 ARM, FRONT UPPER RHARM, FRONT UPPER RH
-
218KR-F354A-00-00 ARM, FRONT UPPER LHARM, FRONT UPPER LH
-
228KG-RA190-00-00 BOLT, FLANGE M8X1.25X45BOLT, FLANGE M8X1.25X45
-
238KG-RA720-00-00 COLLAR, 8COLLAR, 8
-
248KG-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
258JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
268JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
278JP-F3867-00-00 HOLDER 2HOLDER 2
-
288JP-F386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
298JP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
308JP-F386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
318JP-RA235-00-00 SCREW, 1SCREW, 1
-
328JP-RA273-00-00 SCREW, M8X1.25X35SCREW, M8X1.25X35
-
338JP-F386F-00-00 LINK, STABILIZER FRONTLINK, STABILIZER FRONT
-
348KR-F358A-00-00 ARM, FRONT LOWER RH.ARM, FRONT LOWER RH.
-
358KR-F357A-00-00 ARM, FRONT LOWER LH.ARM, FRONT LOWER LH.
-
368JP-RA807-00-00 ...BUSH, 10DU10...BUSH, 10DU10
-
378JP-RA811-00-00 ...BUSH, 1815DU...BUSH, 1815DU
-
388JP-RA361-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
398JP-F3543-00-00 ARM, 1ARM, 1
-
408JP-RA721-00-00 COLLAR, 9COLLAR, 9
-
418JP-RA1A7-00-00 BOLT, FLANGE M12X1.25X76BOLT, FLANGE M12X1.25X76
-
428JP-RA1A4-00-00 BOLT, FLANGE M10X1.25X75BOLT, FLANGE M10X1.25X75
-
438JP-RA719-00-00 COLLAR, 7COLLAR, 7
-
448JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
458JW-F3703-00-00 ADJUSTERADJUSTER
-
468KG-RA1B9-00-00 BOLT, FLANGE M8X50BOLT, FLANGE M8X50
-
478KG-RA817-00-00 BUSH, 8BUSH, 8
-
488KG-RA724-00-00 COLLAR, 12COLLAR, 12
-
498JP-RA360-10-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
508KR-F330E-00-00 DAMPER ASSYDAMPER ASSY
-
518JW-F151F-00-00 ...LABEL 3...LABEL 3
