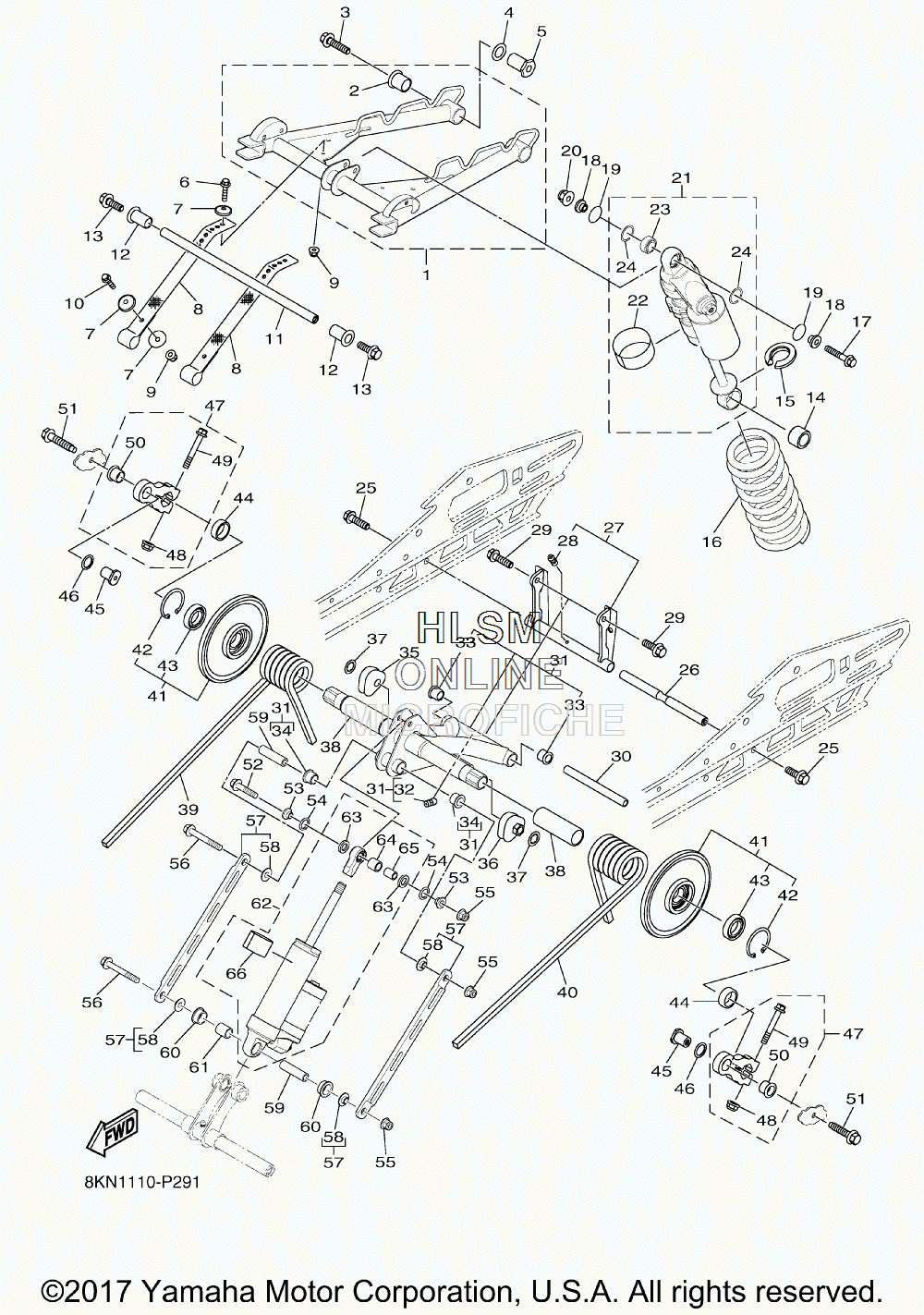

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha SRVIPER R TX LE (PURPLE-BLUE) - 2015 года выпуска
-
№АртикулНазвание
-
18KN-G7331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28KN-G7371-00-00 ...BUSH, PIVOT...BUSH, PIVOT
-
38KN-RA1B8-00-00 BOLT, FLANGE 3BOLT, FLANGE 3
-
48JP-RA439-00-00 WASHER, 1.00X1.43X0.075WASHER, 1.00X1.43X0.075
-
58KN-RA380-00-00 NUT, PIVOTNUT, PIVOT
-
68JP-RA182-00-00 BOLT, FLANGE M6X1.0X25BOLT, FLANGE M6X1.0X25
-
78KN-RA470-00-00 WASHER , PIVOTWASHER , PIVOT
-
88JP-G7495-00-00 STOPPER 1STOPPER 1
-
98JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
108KN-RA183-00-00 BOLT, FLANGE M6X1.0X30BOLT, FLANGE M6X1.0X30
-
118KN-G7465-00-00 SHAFT 1SHAFT 1
-
128KN-RA805-00-00 BUSH, 4BUSH, 4
-
138KN-RA1A0-00-00 BOLT, FLANGE M10X1.25X40BOLT, FLANGE M10X1.25X40
-
148KN-RA819-00-00 BUSH, SHOCKBUSH, SHOCK
-
158JP-F2214-00-00 GUIDE, SPRING 1GUIDE, SPRING 1
-
168KN-G7336-00-00 SPRINGSPRING
-
178JP-RA1A2-10-00 BOLT, FLANGEBOLT, FLANGE
-
188JP-RA738-00-00 COLLAR, SHOCK EYECOLLAR, SHOCK EYE
-
198JP-RAF11-00-00 O-RING, 5/8O-RING, 5/8
-
208JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
218KN-F2201-00-00 DAMPER SUB ASSYDAMPER SUB ASSY
-
228KN-F2259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
238KN-RAG09-10-00 ...BEARING, SHOCK EYE...BEARING, SHOCK EYE
-
248KN-RAH12-10-00 ...CIRCLIP, SHOCK EYE...CIRCLIP, SHOCK EYE
-
258JP-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
268JP-G7488-10-00 SHAFT 6SHAFT 6
-
278JP-G7417-00-00 BRACKET 3BRACKET 3
-
288JP-RAL01-00-00 NIPPLE, GREASE 1NIPPLE, GREASE 1
-
298JP-RA1A0-00-00 BOLT, FLANGE M10X1.25X40BOLT, FLANGE M10X1.25X40
-
308JR-G7487-00-00 SHAFT 5SHAFT 5
-
318KN-G7332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
328JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
338KN-RA808-00-00 ...BUSH, 0.628...BUSH, 0.628
-
348JP-RA818-00-00 ...BUSH, FLANGE...BUSH, FLANGE
-
358JM-G7448-00-00 HOOK 3HOOK 3
-
368JM-G7447-00-00 HOOK 2HOOK 2
-
378JM-RA315-00-00 NUTNUT
-
388KN-G7445-00-00 PROTECTORPROTECTOR
-
398JP-G7474-00-00 SPRING, REAR 2SPRING, REAR 2
-
408JP-G7473-00-00 SPRING, REAR 1SPRING, REAR 1
-
418JP-G7312-00-00 WHEEL, SUSPENSION 2WHEEL, SUSPENSION 2
-
428JP-RAH04-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
438JP-RAG03-00-00 ...BEARING, 2...BEARING, 2
-
448KN-RA727-00-00 COLLAR, 12.81COLLAR, 12.81
-
458JP-G7368-00-00 NUTNUT
-
468JP-RA436-00-00 WASHER, 0.035WASHER, 0.035
-
478KN-G7361-00-00 ARM, REAR PIVOT 1ARM, REAR PIVOT 1
-
488JM-RA301-00-00 ...NUT, SELF-LOCKING M8-1.25...NUT, SELF-LOCKING M8-1.25
-
498JP-RA191-00-00 ...BOLT, FLANGE M8X1.25X60...BOLT, FLANGE M8X1.25X60
-
508JP-RA813-00-00 ...BUSH, 12FDU12...BUSH, 12FDU12
-
518JP-RA196-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
528JP-RA1A2-10-00 BOLT, FLANGEBOLT, FLANGE
-
538JP-RA738-00-00 COLLAR, SHOCK EYECOLLAR, SHOCK EYE
-
548JP-RAF11-00-00 O-RING, 5/8O-RING, 5/8
-
558JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
568JP-RA1B4-00-00 BOLT, FLANGEBOLT, FLANGE
-
578KN-G7494-00-00 ROD, RELAYROD, RELAY
-
588JP-RA725-00-00 ...COLLAR, 13...COLLAR, 13
-
598KN-RA724-00-00 COLLAR, 12COLLAR, 12
-
608KN-RA819-10-00 BUSH, SHOCKBUSH, SHOCK
-
618KN-RA819-20-00 BUSH, SHOCKBUSH, SHOCK
-
628KN-G7480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
638KN-RA459-00-00 ...WASHER, SEAT 1...WASHER, SEAT 1
-
648KN-RA819-30-00 ...BUSH, SHOCK...BUSH, SHOCK
-
658KN-RA728-00-00 ...COLLAR, 14.5...COLLAR, 14.5
-
668KN-F2259-70-00 ...LABEL, WARNING...LABEL, WARNING
