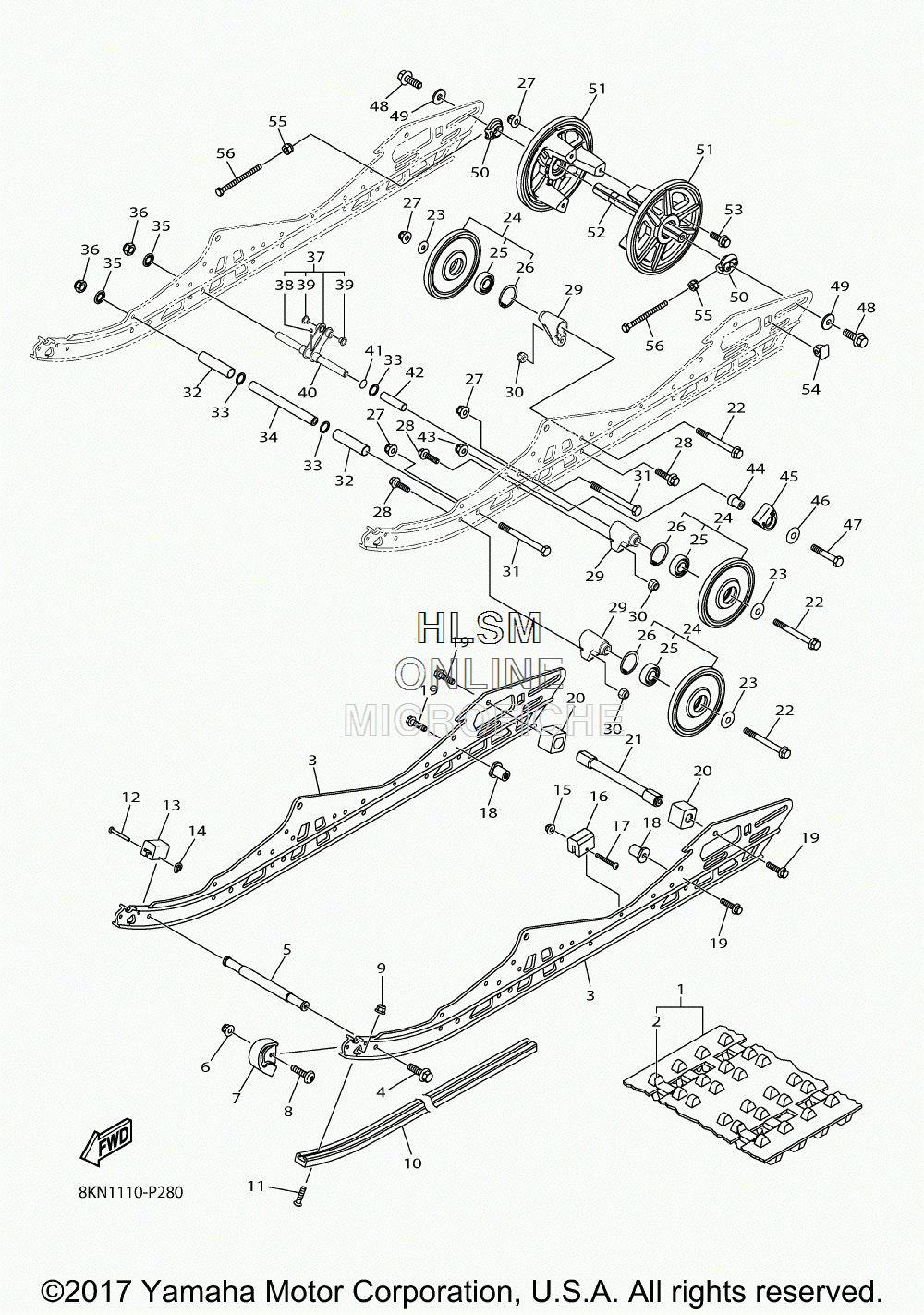

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SRVIPER R TX LE (BLUE-ORANGE) - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-G7110-10-00 TRACK ASSY (VYRS4 - VIVID YELLOWISH RED)TRACK ASSY (VYRS4 - VIVID YELLOWISH RED)
-
28JP-G7113-00-00 ...PLATE, REINFORCEMENT (VYRS4 - VIVID YELLOWISH RED)...PLATE, REINFORCEMENT (VYRS4 - VIVID YELLOWISH RED)
-
38KN-G741A-00-00 FRAME, SLIDINGFRAME, SLIDING
-
48JP-RA186-00-00 BOLT, FLANGE M8X1.25X25BOLT, FLANGE M8X1.25X25
-
58JP-G7485-00-00 SHAFT 3SHAFT 3
-
68JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
78JP-G7422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
88JP-RA263-00-00 SCREW, M6X1.0X25SCREW, M6X1.0X25
-
98JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
108KN-G7421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
118JM-RA206-00-00 SCREW, 1/4-20X1.125SCREW, 1/4-20X1.125
-
128JM-RAY02-00-00 PIN, 2PIN, 2
-
138JM-G7456-00-00 DAMPER 1DAMPER 1
-
148JP-RA346-00-00 .NUT, 0.125.NUT, 0.125
-
158JP-RA363-00-00 NUT, FLANGE LOCKING M5X0.8NUT, FLANGE LOCKING M5X0.8
-
168JP-G7457-00-00 DAMPER 2DAMPER 2
-
178JP-RA249-00-00 SCREW, M5X0.8X40SCREW, M5X0.8X40
-
188JP-G7368-00-00 NUTNUT
-
198JP-RA198-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
208JP-G745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
218JP-G7337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
228JP-RA1B5-00-00 BOLT, FLANGE 1BOLT, FLANGE 1
-
238JP-RA466-00-00 WASHER, 9WASHER, 9
-
248JP-G7310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
258JM-RAY03-00-00 ...BEARING, 2...BEARING, 2
-
268JM-RAH01-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
278JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
288JP-RA1B6-00-00 BOLT, FLANGE 2BOLT, FLANGE 2
-
298JP-G7419-10-00 BRACKET 7BRACKET 7
-
308JP-RA379-00-00 NUT, LOCK 1NUT, LOCK 1
-
318JP-RA194-00-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
-
328JP-RA723-00-00 COLLAR, 11COLLAR, 11
-
338JP-RA437-00-00 WASHER, 0.890X1.19X0.060WASHER, 0.890X1.19X0.060
-
348KN-RA729-00-00 COLLAR, 22.2COLLAR, 22.2
-
358JP-RA457-00-00 WASHER, TOOTH M10WASHER, TOOTH M10
-
368JP-RA371-00-00 NUT, HEX. LOCKING M10X1/25NUT, HEX. LOCKING M10X1/25
-
378KN-G7349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
388JP-RAL01-10-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
398JP-RA818-00-00 ...BUSH, FLANGE...BUSH, FLANGE
-
408JP-RA729-00-00 COLLAR, 22.2COLLAR, 22.2
-
418JP-RAF14-00-00 O-RING, SHOCK EYEO-RING, SHOCK EYE
-
428KN-RA734-00-00 COLLAR, 18COLLAR, 18
-
438JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
448JP-G7319-00-00 COLLARCOLLAR
-
458JP-G7446-00-00 HOOK 1HOOK 1
-
468JP-RA452-00-00 WASHER, 9.12X25.40X2.30WASHER, 9.12X25.40X2.30
-
478JP-RA1B7-00-00 BOLT, HEXAGONBOLT, HEXAGON
-
488JP-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
498JP-RA453-00-00 WASHER, M10X29WASHER, M10X29
-
508JP-G7534-00-00 WHEEL, GUIDE 1WHEEL, GUIDE 1
-
518JP-G7550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
528JP-G7521-00-00 AXLE, REARAXLE, REAR
-
538JP-RA181-00-00 BOLT, FLANGE M6X1.0X20BOLT, FLANGE M6X1.0X20
-
548JP-G7463-00-00 BRACKET 5BRACKET 5
-
558JP-RA372-00-00 NUT, HEX. LOCKING M8X1.25NUT, HEX. LOCKING M8X1.25
-
568JP-RA1B1-00-00 BOLT, HEX. M8X1.25X100BOLT, HEX. M8X1.25X100
