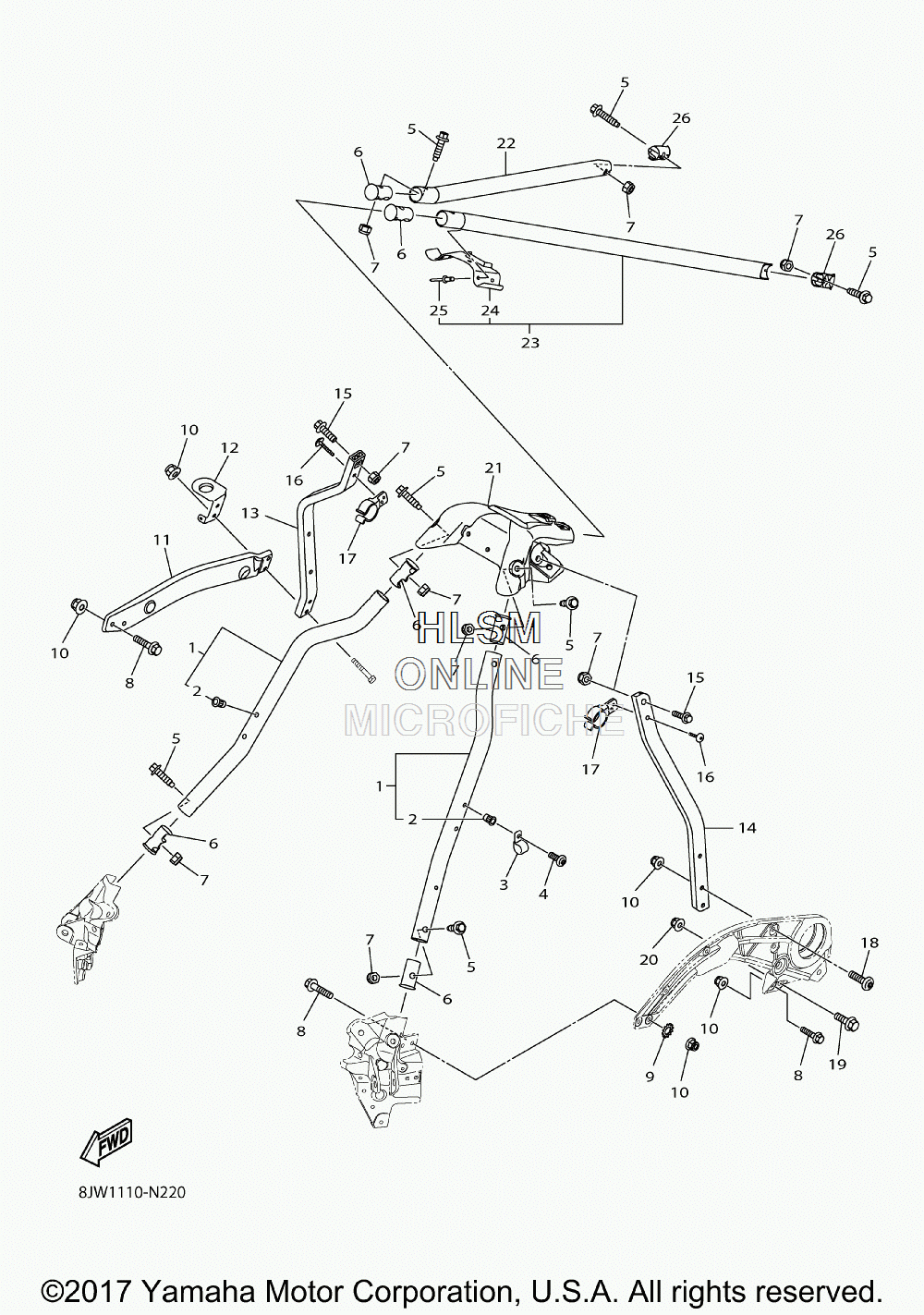

HANDLEBAR PAD W/ STEERING GATE для Yamaha SRVIPER R TX LE (BLUE-ORANGE) - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-F119A-00-00 PIPE, CROSS 6PIPE, CROSS 6
-
28JP-RA331-00-00 ...NUT, HEXAGON...NUT, HEXAGON
-
38JP-RAB07-00-00 CLAMP, 5CLAMP, 5
-
48JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
58JP-RA187-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
68JP-F111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
78JP-RA372-00-00 NUT, HEX. LOCKING M8X1.25NUT, HEX. LOCKING M8X1.25
-
88JP-RA182-00-00 BOLT, FLANGE M6X1.0X25BOLT, FLANGE M6X1.0X25
-
98JM-RA407-00-00 WASHER, TOOTHED LOCK 1/4WASHER, TOOTHED LOCK 1/4
-
108JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
118JP-F1113-00-00 GUSSETGUSSET
-
128JP-F112K-00-00 BRACKET 5BRACKET 5
-
138JP-F111J-00-00 MEMBER, SIDE 1MEMBER, SIDE 1
-
148JP-F111K-00-00 MEMBER, SIDE 2MEMBER, SIDE 2
-
158JP-RA185-00-00 BOLT, FLANGE M8X1.25X20BOLT, FLANGE M8X1.25X20
-
168JP-RA288-00-00 SCREW, 10-12X1.00SCREW, 10-12X1.00
-
178JP-F11C2-00-00 CLIPCLIP
-
188JP-RA266-00-00 SCREW, M6X1.0X30SCREW, M6X1.0X30
-
198JM-RA102-00-00 BOLT, FLANGE M8-1.25X25BOLT, FLANGE M8-1.25X25
-
208JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
218JP-F3871-00-00 GATE, STEERINGGATE, STEERING
-
228JP-F119E-00-00 PIPE, CROSS, 7PIPE, CROSS, 7
-
238JP-F119F-00-00 PIPE CROSS 8PIPE CROSS 8
-
248JP-F114H-00-00 ...SUPPORT, SEAT...SUPPORT, SEAT
-
258JP-RA514-00-00 ...RIVET, 5...RIVET, 5
-
268JP-F3775-00-00 INSERTINSERT
