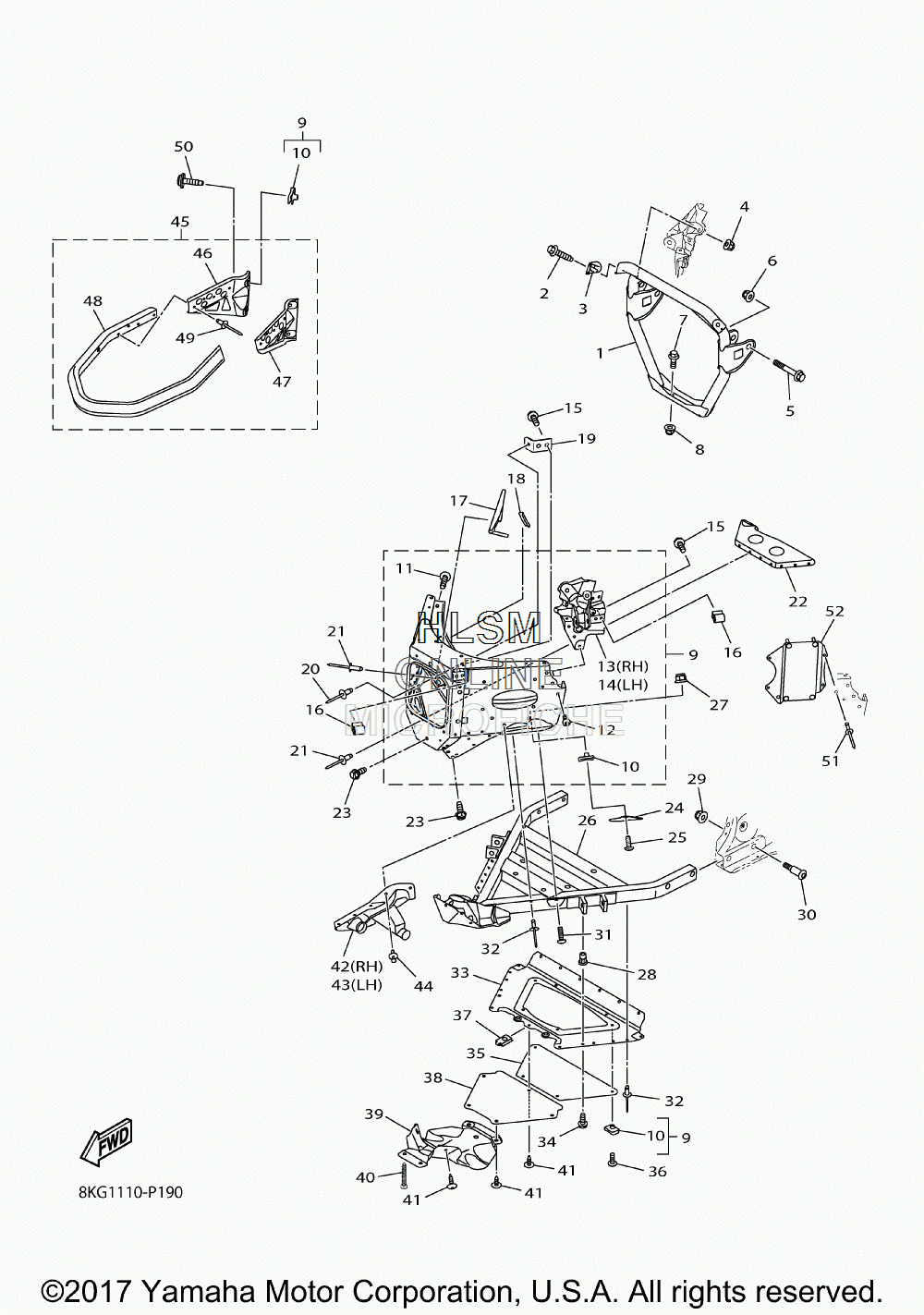

FRONT FRAME COMP. 1 для Yamaha SRVIPER M TX 153 - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-F194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
28JP-RA188-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
38JP-F3775-00-00 INSERTINSERT
-
48JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
58JP-RA1A5-00-00 BOLT, FLANGE M12X1.25X75BOLT, FLANGE M12X1.25X75
-
68JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
78JP-RA195-00-00 BOLT, FLANGE M10X1.25X25BOLT, FLANGE M10X1.25X25
-
88JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
98KG-F191A-00-00 BULKHEADBULKHEAD
-
108JP-RA354-00-00 ...NUT, CLIP M6...NUT, CLIP M6
-
118JP-RA281-00-00 ...SCREW, TAPPING M6X1X20...SCREW, TAPPING M6X1X20
-
128JP-RA271-00-00 ...SCREW, M6X1X16...SCREW, M6X1X16
-
138KG-F377J-00-00 ...HOLDER, ABSORBER 2...HOLDER, ABSORBER 2
-
148KG-F376J-00-00 ...HOLDER, ABSORBER...HOLDER, ABSORBER
-
158JP-RA180-00-00 BOLT, FLANGE M6X1.0X16BOLT, FLANGE M6X1.0X16
-
168JP-F2219-00-00 BRACKET, UPPERBRACKET, UPPER
-
178JP-F131G-00-00 BRACKET, STOPPER STEEERINGBRACKET, STOPPER STEEERING
-
188JP-F15B3-00-00 TRIM (3 FEET)TRIM (3 FEET)
-
198JP-F1138-00-00 GUSSETGUSSET
-
208JP-RA527-00-00 RIVET, 3/16RIVET, 3/16
-
218JP-RA520-00-00 RIVET, 11RIVET, 11
-
228JP-F198E-00-00 REINFORCEMENT, FRAME 3REINFORCEMENT, FRAME 3
-
238JP-RA279-00-00 SCREW, TAPPING 1/4-20X5/8SCREW, TAPPING 1/4-20X5/8
-
248KG-F194X-00-00 BRACKET 1BRACKET 1
-
258KG-RA235-00-00 SCREW, 1SCREW, 1
-
268JW-F196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
278JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
288JP-RA331-00-00 NUT, HEXAGONNUT, HEXAGON
-
298JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
308JP-RA275-00-00 SCREW, M8X1.25X44.16SCREW, M8X1.25X44.16
-
318JP-RA258-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
328JP-RA518-00-00 RIVET, 9RIVET, 9
-
338JP-F196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
348JP-RA245-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
358JP-F2863-00-00 COVER, UNDERCOVER, UNDER
-
368JP-RA255-00-00 SCREW, M6X1.0X16SCREW, M6X1.0X16
-
378JP-RA349-00-00 NUT, CLIPNUT, CLIP
-
388JP-F114G-00-00 PANEL, UNDERPANEL, UNDER
-
398JP-F2865-00-00 COVER, FRONTCOVER, FRONT
-
408JP-RA2A1-00-00 SCREW, 12SCREW, 12
-
418JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
428JP-F198J-00-00 COVER 3COVER 3
-
438JP-F198F-00-00 COVER 1COVER 1
-
448JP-RA511-00-00 RIVET, 2RIVET, 2
-
458JP-K7510-00-00 FRONT BUMPER COMP.FRONT BUMPER COMP.
-
468JP-F1959-00-00 ...BRACKET, FRONT BUMPER...BRACKET, FRONT BUMPER
-
478JP-F1949-00-00 ...BRACKET, FRONT...BRACKET, FRONT
-
488JP-K7511-00-00 ...BUMPER, FRONT 1...BUMPER, FRONT 1
-
498JP-RA520-00-00 ...RIVET, 11...RIVET, 11
-
508JP-RA270-00-00 SCREW, M6X18SCREW, M6X18
-
518JP-RA520-00-00 RIVET, 11RIVET, 11
-
528JP-H5991-00-00 BRACKET, UNITBRACKET, UNIT
