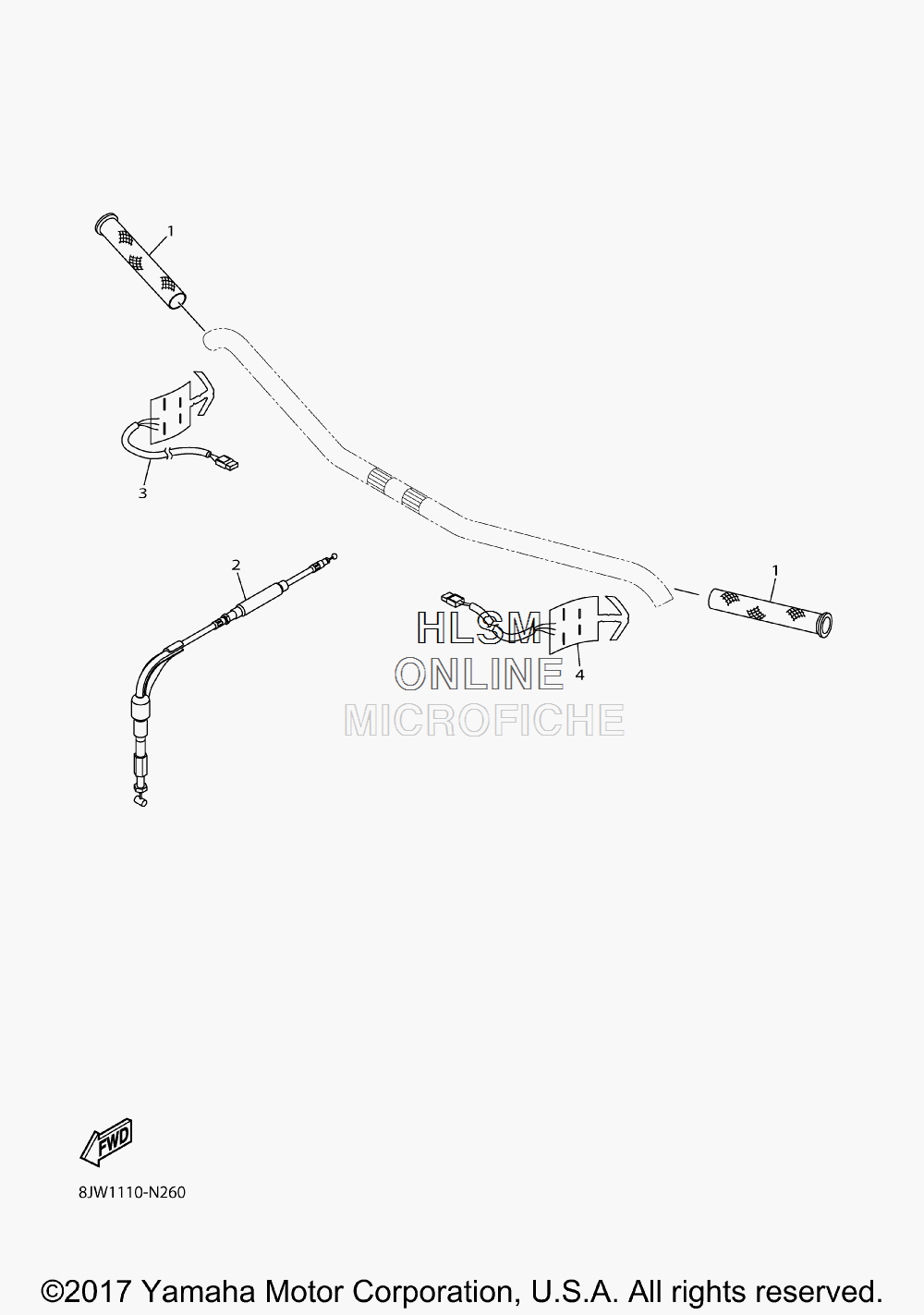

HANDLEBAR - CABLES AND GRIPS для Yamaha SRVIPER L TX SE - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-F6241-00-00 GRIPGRIP
-
28JP-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
38JP-F626A-10-00 GRIP, WARMER (RIGHT)GRIP, WARMER (RIGHT)
-
48JP-F626A-00-00 GRIP, WARMER (LEFT)GRIP, WARMER (LEFT)
