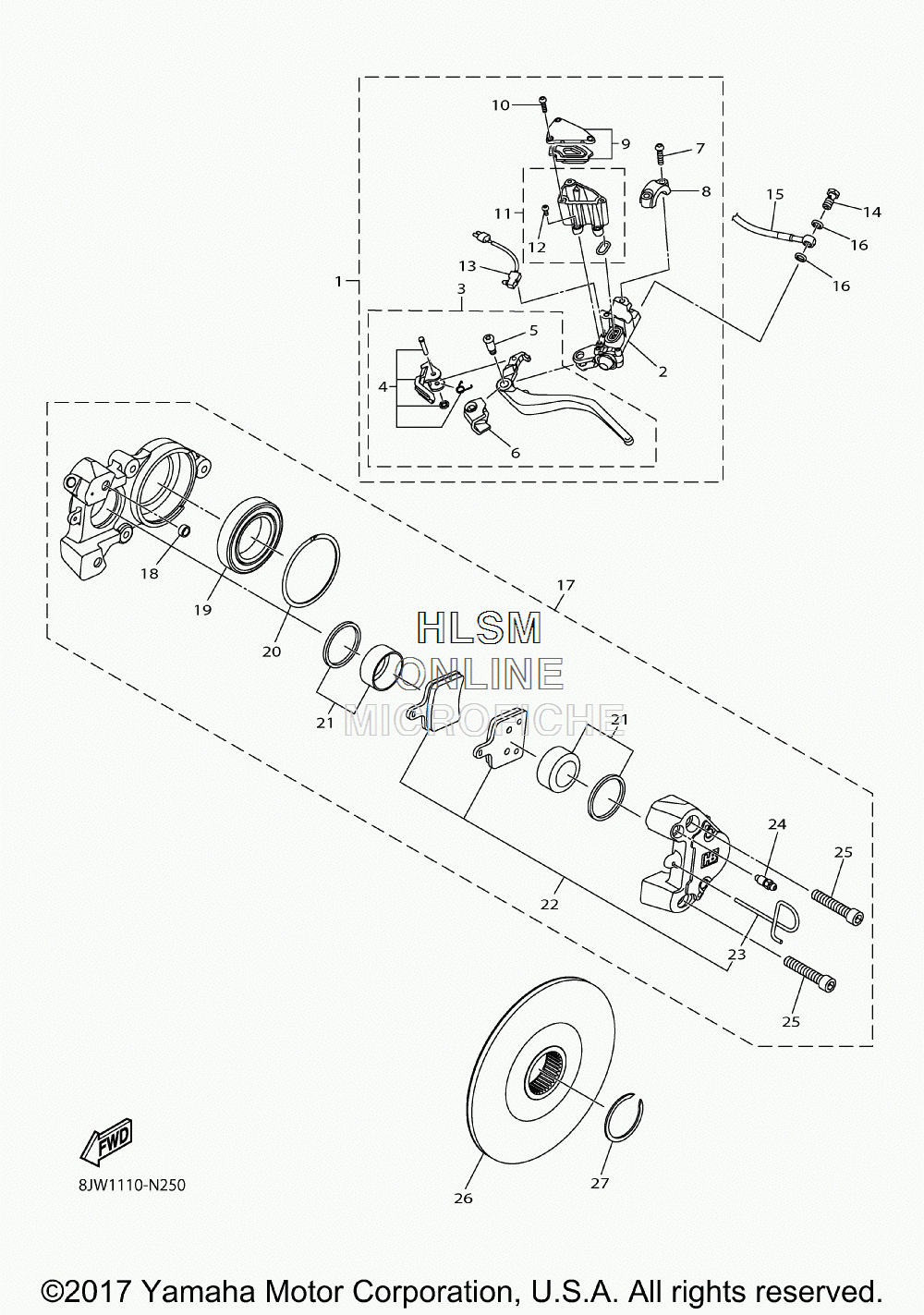

BRAKE ASSY для Yamaha SRVIPER L TX LE 1.75 - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-F583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
28JP-F5856-00-00 ...PISTON, MASTER CYLINDER...PISTON, MASTER CYLINDER
-
38JP-F610A-00-00 ...BRAKE LEVER SET...BRAKE LEVER SET
-
48JP-F5727-00-00 ......BRACKET, LEVER......BRACKET, LEVER
-
58JP-F589F-00-00 ......BOLT, LEVER......BOLT, LEVER
-
68JP-F637A-00-00 ......COVER, HANDLE LEVER 2......COVER, HANDLE LEVER 2
-
78JP-RA236-00-00 ...SCREW, 2...SCREW, 2
-
88JP-F5867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
98JP-F5852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
108JP-RA277-00-00 ...SCREW, TAPPING...SCREW, TAPPING
-
118JP-F5851-00-00 ...BODY, MASTER CYLINDER...BODY, MASTER CYLINDER
-
128JP-RA278-00-00 ......SCREW, TAPPING......SCREW, TAPPING
-
138JP-H2530-00-00 ...STOP SWITCH ASSY...STOP SWITCH ASSY
-
148JP-RA1B3-00-00 BOLT, UNION 20BOLT, UNION 20
-
158JP-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
168JP-RA435-00-00 WASHER, 4WASHER, 4
-
178JP-F580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
188JP-RAF03-00-00 ...O-RING, 1...O-RING, 1
-
198JP-RAG06-00-00 ...BEARING, 6009-2RSFP-C3...BEARING, 6009-2RSFP-C3
-
208JP-RAH05-00-00 ...CIRCLIP, EH-75...CIRCLIP, EH-75
-
218JP-F5809-00-00 ...PISTON SET, CALIPER...PISTON SET, CALIPER
-
228JP-F5811-00-00 ...PAD, CALIPER 2...PAD, CALIPER 2
-
238JP-F5924-00-00 ......PIN, PAD......PIN, PAD
-
248JP-F5824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
258JP-RA237-00-00 ...SCREW, 3...SCREW, 3
-
268JP-F581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
278JP-RAH09-00-00 CIRCLIP, FSE-0168CIRCLIP, FSE-0168
