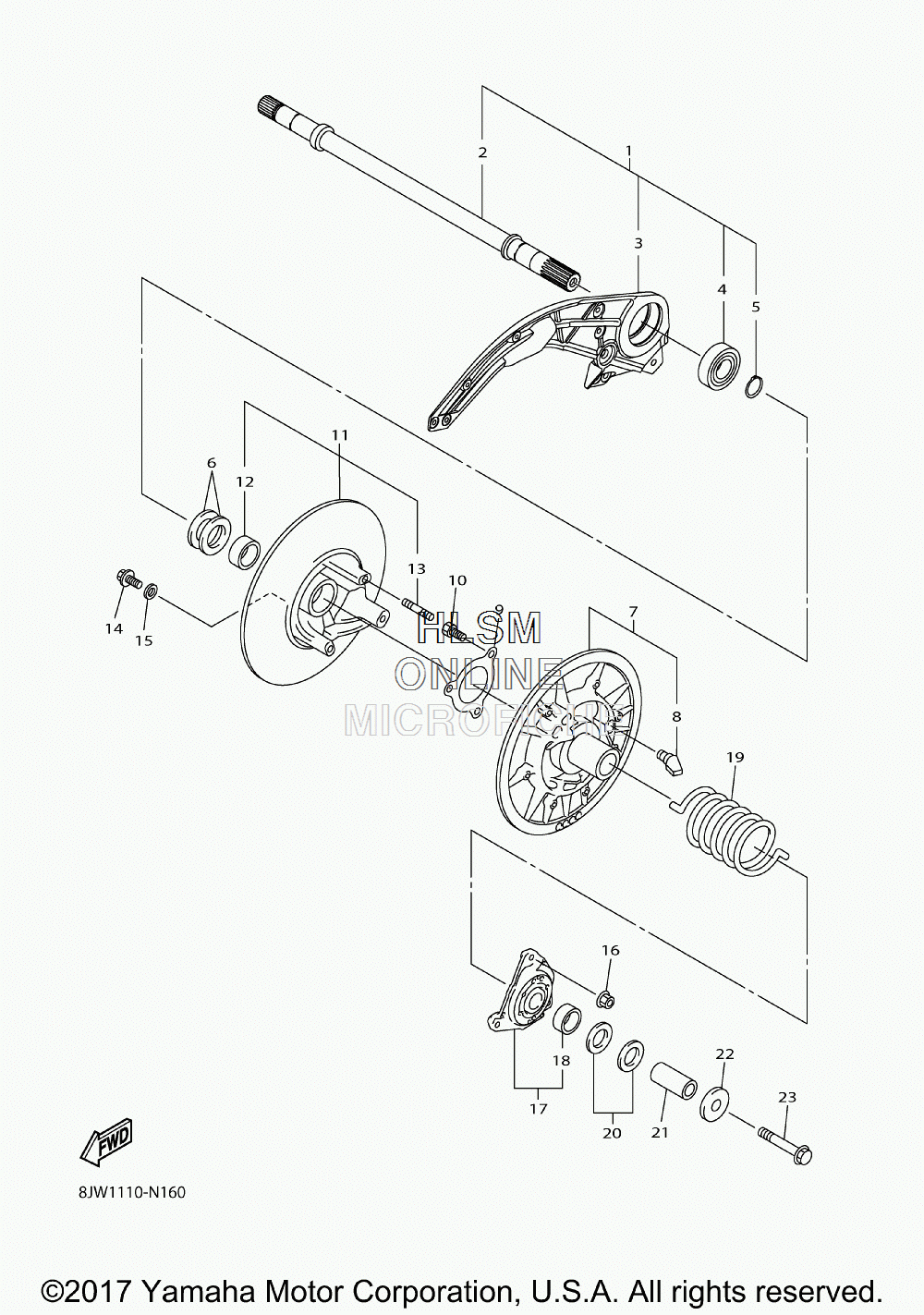

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha SRVIPER L TX LE 1.25 - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-E7680-00-00 SECONDARY SHAFT COMP.SECONDARY SHAFT COMP.
-
28JP-E7681-00-00 ...SHAFT, SECONDARY...SHAFT, SECONDARY
-
38JP-G7631-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
48JP-RAG07-00-00 ...BEARING, 6206...BEARING, 6206
-
58JP-RAH03-00-00 ...CIRCLIP, 1...CIRCLIP, 1
-
68JP-RA448-00-00 WASHER, 28X40X1 (OPT)WASHER, 28X40X1 (OPT)
-
68JP-RA449-00-00 WASHER, 28X40X2 (OPT)WASHER, 28X40X2 (OPT)
-
78GL-17660-30-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
88AV-17688-10-00 ...SHOE, RAMP...SHOE, RAMP
-
98BV-17656-00-00 STOPPER, HOLDERSTOPPER, HOLDER
-
1090154-06062-00 SCREW, BINDINGSCREW, BINDING
-
118BU-17670-30-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
1290384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1395617-08630-00 ...BOLT, STUD...BOLT, STUD
-
1490105-06734-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-061H1-00 WASHER, PLATE (T=0.5) (OPT)WASHER, PLATE (T=0.5) (OPT)
-
1590201-06037-00 WASHER, PLATE (T=1.0) (OPT)WASHER, PLATE (T=1.0) (OPT)
-
1690179-08655-00 NUTNUT
-
178BV-17604-31-00 SEAT SPRING SETSEAT SPRING SET
-
1890384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1990508-60012-00 SPRING, TORSION (PINK)SPRING, TORSION (PINK)
-
208JP-RA447-00-00 WASHER, 25X36X2 (OPT)WASHER, 25X36X2 (OPT)
-
208JP-RA446-00-00 WASHER, 25X36X1 (OPT)WASHER, 25X36X1 (OPT)
-
208JP-RA433-00-00 WASHER, 2 (OPT)WASHER, 2 (OPT)
-
218JP-RA714-00-00 COLLAR, 2COLLAR, 2
-
228JP-RA442-00-00 WASHER, 10.5X33X4WASHER, 10.5X33X4
-
238JP-RA1A6-00-00 BOLT, FLANGE M10X1.25X75BOLT, FLANGE M10X1.25X75
