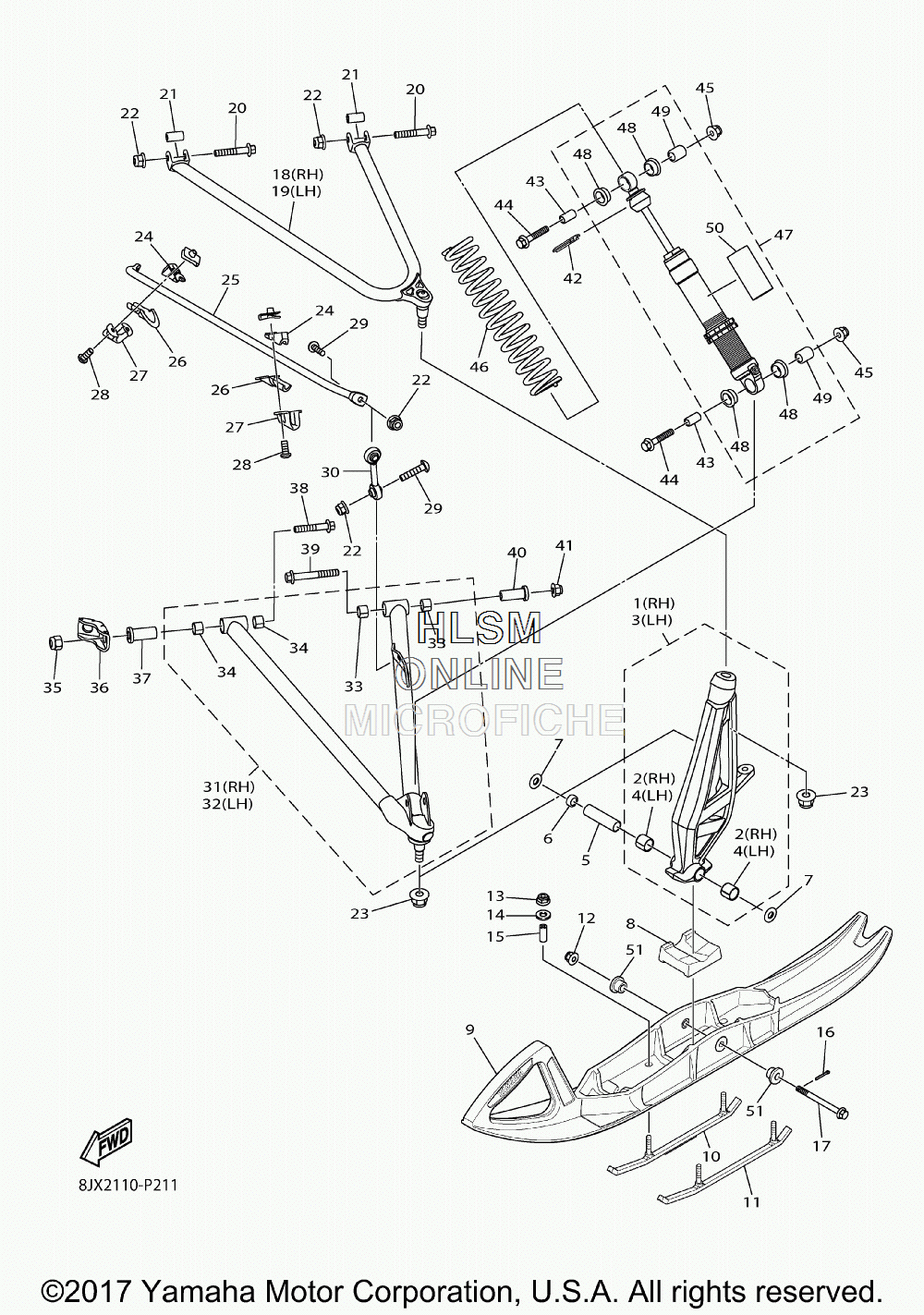

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SRVIPER L TX DX - 2015 года выпуска`
-
№АртикулНазвание
-
18JP-F3521-00-00 KNUCKLE, STEERING 2 (YB - YAMAHA BLACK)KNUCKLE, STEERING 2 (YB - YAMAHA BLACK)
-
18JP-F3521-30-00 KNUCKLE, STEERING 2 (VRC1 - VIVID RED)KNUCKLE, STEERING 2 (VRC1 - VIVID RED)
-
28JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
38JP-F3511-00-00 KNUCKLE, STEERING 1 (YB - YAMAHA BLACK)KNUCKLE, STEERING 1 (YB - YAMAHA BLACK)
-
38JP-F3511-30-00 KNUCKLE, STEERING 1 (VRC1 - VIVID RED)KNUCKLE, STEERING 1 (VRC1 - VIVID RED)
-
48JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
58KN-RA736-00-00 COLLAR, 21COLLAR, 21
-
68KN-RA737-00-00 COLLAR, 23COLLAR, 23
-
790201-10043-00 WASHER, PLATEWASHER, PLATE
-
88KN-F3743-00-00 STOPPER 1STOPPER 1
-
98KN-F3711-00-00 SKI 1SKI 1
-
108KN-F3731-00-00 RUNNER 1RUNNER 1
-
118KN-F3732-00-00 RUNNER 2RUNNER 2
-
1295602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
138JH-F3778-00-00 NUTNUT
-
148JH-F3738-00-00 WASHER 2WASHER 2
-
158KN-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
1691401-20020-00 PIN, COTTERPIN, COTTER
-
1790105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
188JP-F355A-00-00 ARM, FRONT UPPER RHARM, FRONT UPPER RH
-
198JP-F354A-00-00 ARM, FRONT UPPER LHARM, FRONT UPPER LH
-
208JP-RA190-00-00 BOLT, FLANGE M8X1.25X45BOLT, FLANGE M8X1.25X45
-
218JP-RA720-00-00 COLLAR, 8COLLAR, 8
-
228JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
238JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
248JP-F3867-00-00 HOLDER 2HOLDER 2
-
258JP-F386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
268JP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
278JP-F386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
288JP-RA235-00-00 SCREW, 1SCREW, 1
-
298JP-RA273-00-00 SCREW, M8X1.25X35SCREW, M8X1.25X35
-
308JP-F386F-00-00 LINK, STABILIZER FRONTLINK, STABILIZER FRONT
-
318JP-F358A-00-00 ARM, FRONT LOWER RH.ARM, FRONT LOWER RH.
-
328JP-F357A-00-00 ARM, FRONT LOWER LH.ARM, FRONT LOWER LH.
-
338JP-RA807-00-00 ...BUSH, 10DU10...BUSH, 10DU10
-
348JP-RA811-00-00 ...BUSH, 1815DU...BUSH, 1815DU
-
358JP-RA361-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
368JP-F3543-00-00 ARM, 1ARM, 1
-
378JP-RA721-00-00 COLLAR, 9COLLAR, 9
-
388JP-RA1A7-00-00 BOLT, FLANGE M12X1.25X76BOLT, FLANGE M12X1.25X76
-
398JP-RA1A4-00-00 BOLT, FLANGE M10X1.25X75BOLT, FLANGE M10X1.25X75
-
408JP-RA719-00-00 COLLAR, 7COLLAR, 7
-
418JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
428JP-F2214-00-00 GUIDE, SPRING 1GUIDE, SPRING 1
-
438JP-RA724-00-00 COLLAR, 12COLLAR, 12
-
448JP-RA1A3-00-00 BOLT, FLANGE M10X1.25X50BOLT, FLANGE M10X1.25X50
-
458JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
468JP-F3351-10-00 SPRING (YB - YAMAHA BLACK)SPRING (YB - YAMAHA BLACK)
-
468JP-F3351-00-00 SPRING (VRC1 - VIVID RED)SPRING (VRC1 - VIVID RED)
-
478JP-F330E-00-00 DAMPER ASSYDAMPER ASSY
-
488JP-RA804-00-00 ...BUSH, 3...BUSH, 3
-
498JP-RA728-00-00 ...COLLAR, 14.5...COLLAR, 14.5
-
508JP-F2259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
518JH-F3754-00-00 COLLAR 1COLLAR 1
