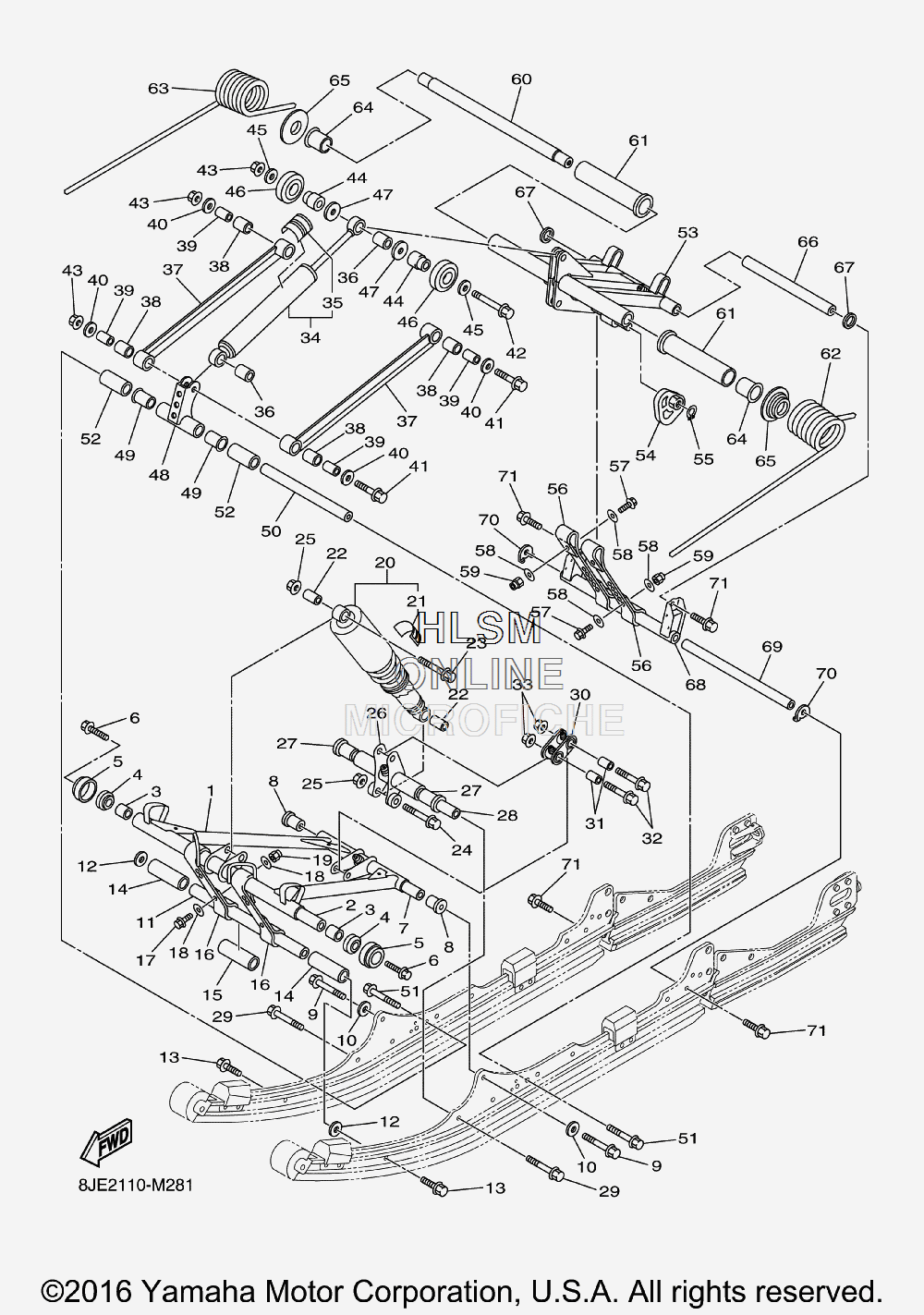

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha RS VIKING PROFESSIONAL - 2015 года выпуска`
-
№АртикулНазвание
-
18JD-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28JD-47465-00-00 SHAFT 1SHAFT 1
-
390383-23002-00 BUSH, FORMEDBUSH, FORMED
-
493108-37011-00 OIL SEALOIL SEAL
-
58HF-47341-00-00 SPACERSPACER
-
690109-10030-00 BOLTBOLT
-
78JD-47486-00-00 SHAFT 4SHAFT 4
-
890387-10022-00 COLLARCOLLAR
-
990105-10329-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-10072-00 WASHER, PLATEWASHER, PLATE
-
1183R-47485-02-00 SHAFT 3SHAFT 3
-
1290201-10126-00 WASHER, PLATEWASHER, PLATE
-
1390105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
1490387-19002-00 COLLARCOLLAR
-
1590387-19007-00 COLLARCOLLAR
-
168JD-47495-00-00 STOPPER 1STOPPER 1
-
1797002-06025-00 BOLTBOLT
-
1890201-06081-00 WASHER, PLATEWASHER, PLATE
-
1995702-06300-00 NUT, NYLONNUT, NYLON
-
208JE-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
214AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
2290387-10103-00 COLLARCOLLAR
-
2395812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2495812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
2595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
268JD-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2790386-20001-00 BUSHBUSH
-
288JD-47487-00-00 SHAFT 5SHAFT 5
-
2990105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
308FK-47416-01-00 BRACKET 2BRACKET 2
-
3190387-10024-00 COLLARCOLLAR
-
3295812-10050-00 BOLT, FLANGEBOLT, FLANGE
-
3395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
348JE-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
354AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
3690387-10023-00 COLLARCOLLAR
-
378HF-47494-00-00 ROD, RELAYROD, RELAY
-
3890386-16001-00 BUSHBUSH
-
3990387-101A1-00 COLLARCOLLAR
-
4090201-10043-00 WASHER, PLATEWASHER, PLATE
-
4195812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
4290105-10027-00 BOLT, FLANGEBOLT, FLANGE
-
4395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
448AC-47366-00-00 COLLAR 2COLLAR 2
-
4590201-10136-00 WASHER, PLATEWASHER, PLATE
-
468AC-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4790201-103U7-00 WASHER, PLATEWASHER, PLATE
-
488JD-47349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
4990386-20001-00 BUSHBUSH
-
508JD-47487-10-00 SHAFT 5SHAFT 5
-
5190105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
528HP-47319-00-00 COLLARCOLLAR
-
538JD-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
548ES-47447-00-00 HOOK 2HOOK 2
-
5599009-14400-00 CIRCLIPCIRCLIP
-
568JD-47496-00-00 STOPPER 2STOPPER 2
-
5797002-06025-00 BOLTBOLT
-
5890201-06081-00 WASHER, PLATEWASHER, PLATE
-
5995702-06300-00 NUT, NYLONNUT, NYLON
-
608JD-47475-00-00 SHAFT 2SHAFT 2
-
618GL-47445-00-00 PROTECTORPROTECTOR
-
628JE-47473-10-00 SPRING, REAR 1 (K=3400NMM/DEG) (STD)SPRING, REAR 1 (K=3400NMM/DEG) (STD)
-
628JE-47473-00-00 SPRING, REAR 1 (K=3600NMM/DEG) (OPT)SPRING, REAR 1 (K=3600NMM/DEG) (OPT)
-
638JE-47474-10-00 SPRING, REAR 1 (K=3400NMM/DEG) (STD)SPRING, REAR 1 (K=3400NMM/DEG) (STD)
-
638JE-47474-00-00 SPRING, REAR 2 (K=3600NMM/DEG) (OPT)SPRING, REAR 2 (K=3600NMM/DEG) (OPT)
-
6490381-28108-00 BUSH, SOLIDBUSH, SOLID
-
658ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
668JE-47488-00-00 SHAFT 6SHAFT 6
-
6790201-19008-00 WASHER, PLATEWASHER, PLATE
-
688JD-47417-00-00 BRACKET 3BRACKET 3
-
6983R-47485-02-00 SHAFT 3SHAFT 3
-
7090214-10007-00 WASHER, CLAWWASHER, CLAW
-
7190105-10237-00 BOLT, FLANGEBOLT, FLANGE
