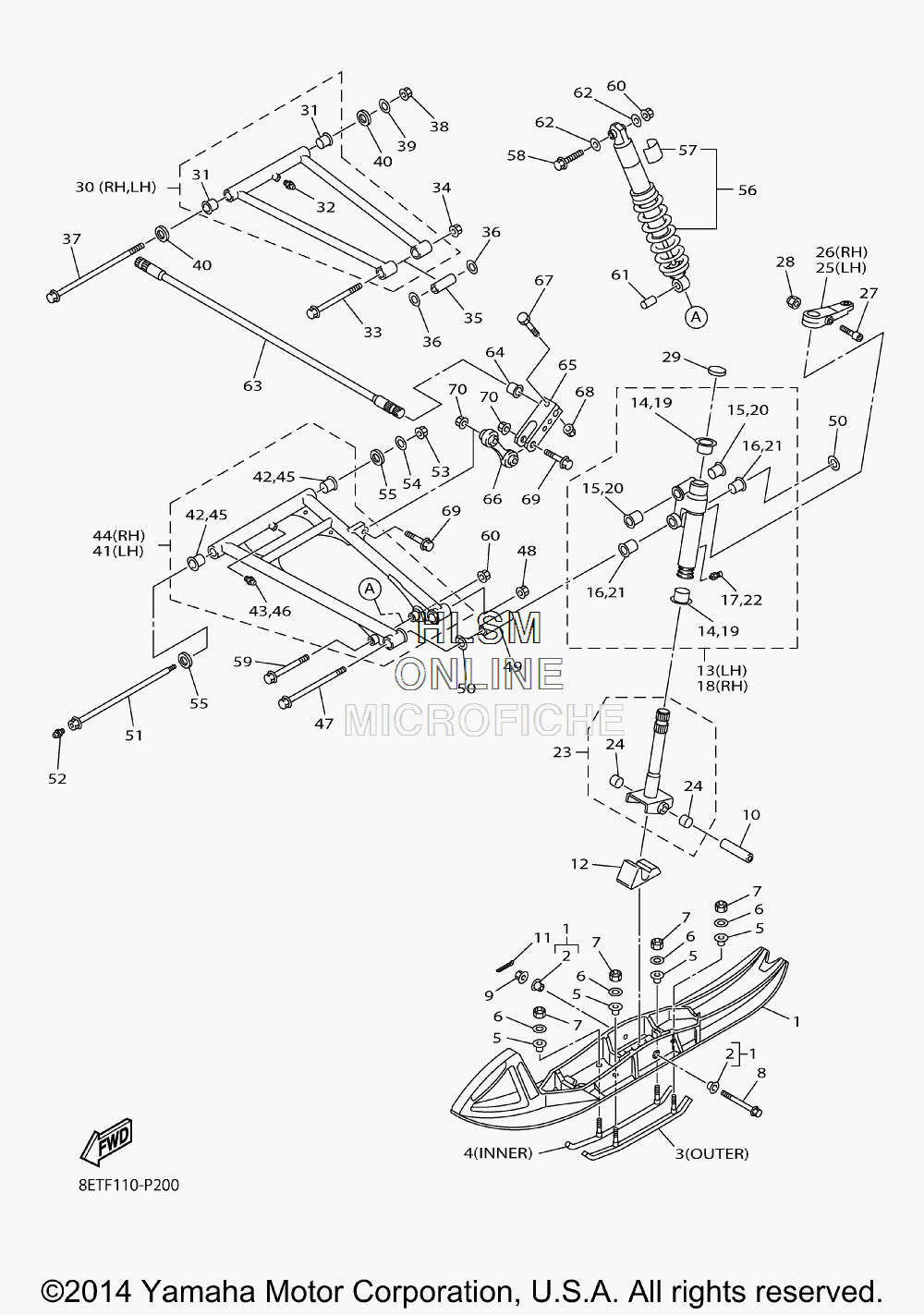

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RS VENTURE - 2015 года выпуска
-
№АртикулНазвание
-
18HW-F3710-00-00 SKI COMP. 1SKI COMP. 1
-
28JH-F3754-00-00 ...COLLAR 1...COLLAR 1
-
38HW-F3731-00-00 RUNNER 1RUNNER 1
-
48HW-F3732-00-00 RUNNER 2RUNNER 2
-
58JH-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68JH-F3738-00-00 WASHER 2WASHER 2
-
78JH-F3778-00-00 NUTNUT
-
890105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1090387-1012H-00 COLLARCOLLAR
-
1191401-20020-00 PIN, COTTERPIN, COTTER
-
128CR-23743-10-00 STOPPER 1STOPPER 1
-
138ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1490381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1590381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
1690381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
1793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
188ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1990381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
238ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2490384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
258FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
268FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2790110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
293YK-22472-40-00 CAP, CASECAP, CASE
-
308HG-23540-20-00 FRONT UPPER ARM COMP.FRONT UPPER ARM COMP.
-
3190381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3390105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3590387-10099-00 COLLARCOLLAR
-
3690201-10052-00 WASHER, PLATEWASHER, PLATE
-
3790109-10056-00 BOLTBOLT
-
3895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3990201-10052-00 WASHER, PLATEWASHER, PLATE
-
4090209-15N50-00 WASHERWASHER
-
418HG-23570-20-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4290381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
448HG-23580-20-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
4590381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4790105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
4895602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4990387-12054-00 COLLARCOLLAR
-
5090201-120T5-00 WASHER, PLATEWASHER, PLATE
-
5190401-10045-00 BOLT, UNIONBOLT, UNION
-
5293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
5490201-10052-00 WASHER, PLATEWASHER, PLATE
-
5590209-15N50-00 WASHERWASHER
-
568FM-2376A-40-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
574AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
5890105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
5990105-10288-00 BOLT, FLANGEBOLT, FLANGE
-
6095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
6190387-10N59-00 COLLARCOLLAR
-
6290201-10052-00 WASHER, PLATEWASHER, PLATE
-
638FG-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
648FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
658FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
668ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6790101-06046-00 BOLTBOLT
-
6895604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6995814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7095604-08200-00 NUT, U FLANGENUT, U FLANGE
