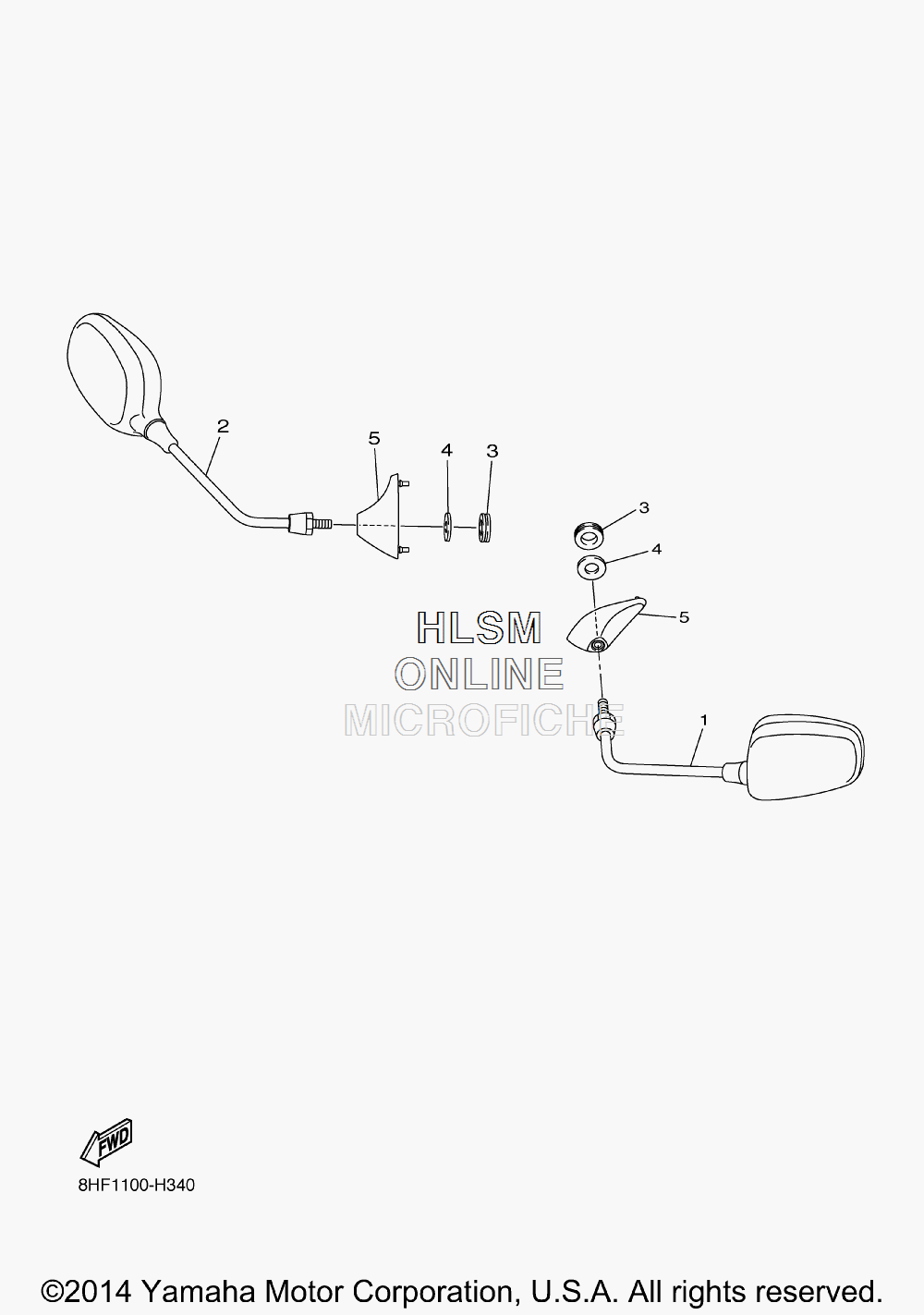

REAR VIEW MIRROR SET для Yamaha RS VENTURE GT - 2015 года выпуска
-
№АртикулНазвание
-
14GA-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
24GA-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
390480-23001-00 GROMMETGROMMET
-
490201-106E0-00 WASHER, PLATEWASHER, PLATE
-
58HF-77139-00-00 HOLDER, ROD 1HOLDER, ROD 1
