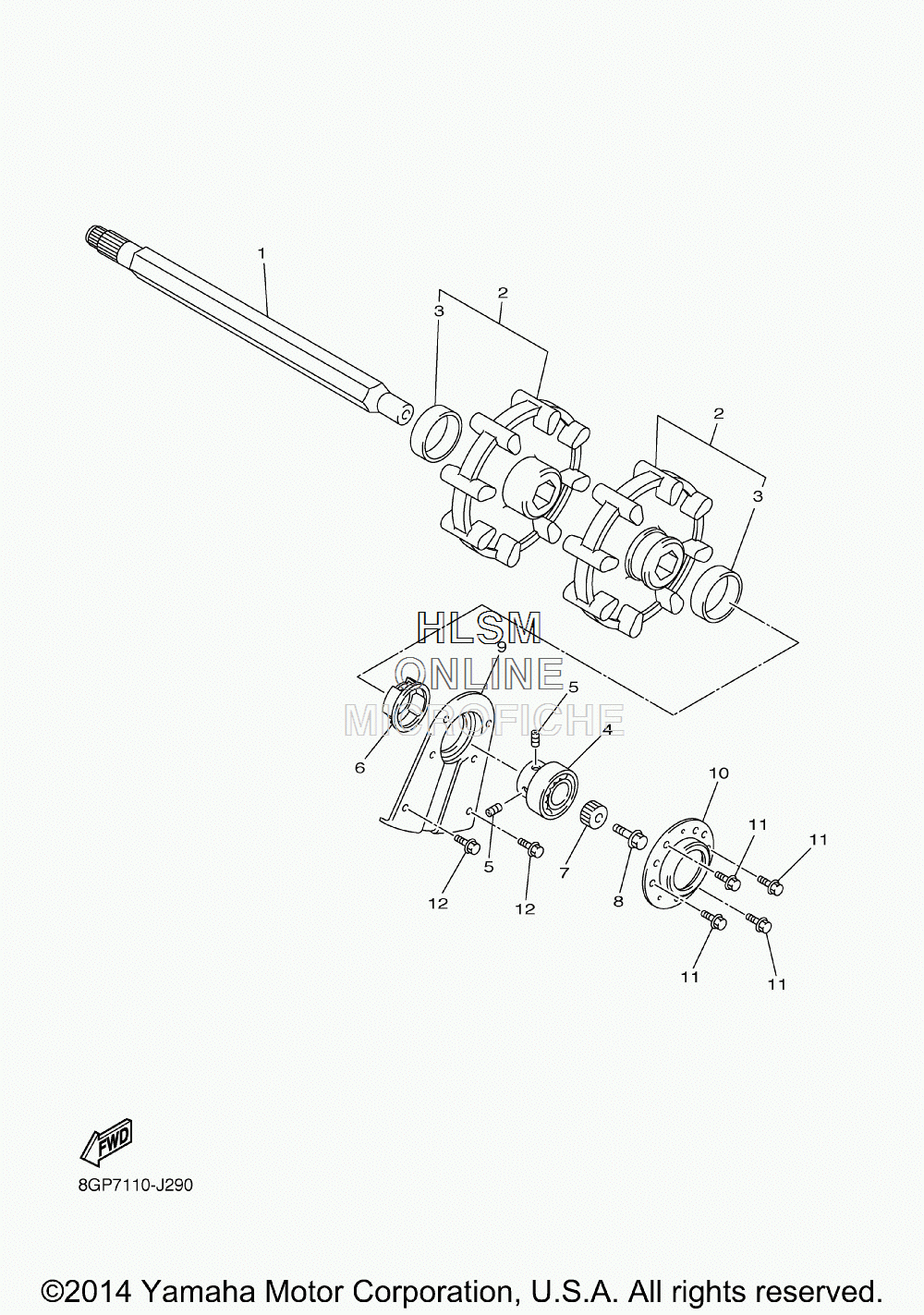

DRIVE TRAIN ASSEMBLY для Yamaha PHAZER XTX - 2015 года выпуска`
-
№АртикулНазвание
-
18GK-47511-20-00 AXLE, FRONTAXLE, FRONT
-
28BF-W4753-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
390387-514Y2-00 ...COLLAR...COLLAR
-
493306-20589-00 BEARINGBEARING
-
590113-06064-00 BOLT, SETBOLT, SET
-
68FN-47377-00-00 CAPCAP
-
78EK-47715-00-00 JOINTJOINT
-
895822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
98GC-21920-00-00 HOUSING, REINF SUB-ASSY (LEFT)HOUSING, REINF SUB-ASSY (LEFT)
-
108EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
1190105-08168-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-08450-00 BOLT, FLANGEBOLT, FLANGE
