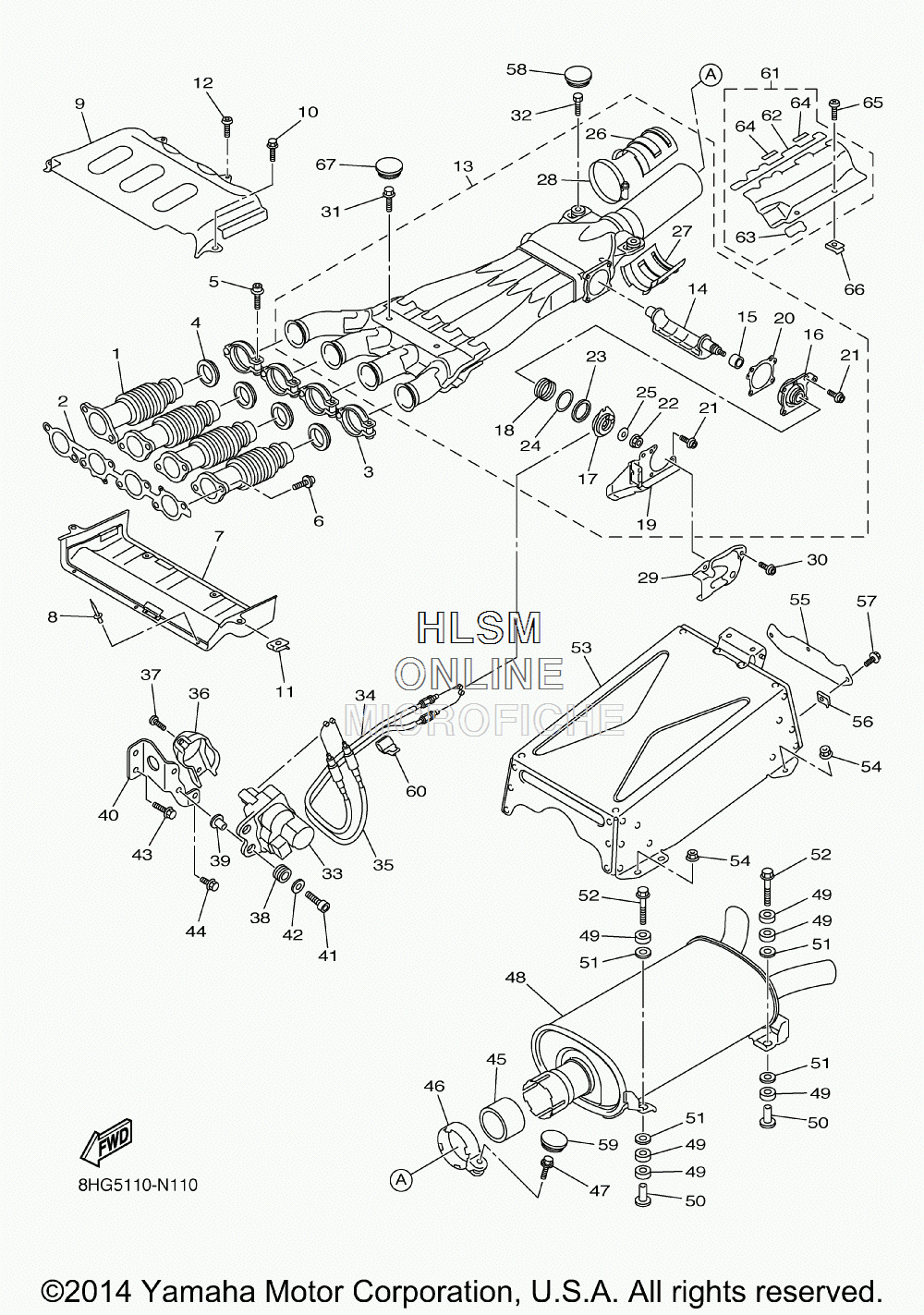

EXHAUST SYSTEM для Yamaha APEX XTX - 2015 года выпуска
-
№АртикулНазвание
-
18HG-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
28HG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
38HG-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
48HG-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
590109-06031-00 BOLTBOLT
-
695022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
78FU-14627-10-00 COVER, EXHAUSTCOVER, EXHAUST
-
890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
98FP-14637-00-00 EXHAUST COVER ASS'YEXHAUST COVER ASS'Y
-
1095812-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-060A0-00 NUT, SPRINGNUT, SPRING
-
1292012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
138HG-14610-01-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
148HG-14821-00-00 ...ARM, SHAFT (VALVE)...ARM, SHAFT (VALVE)
-
155VY-14638-00-00 ...COLLAR...COLLAR
-
168HG-14811-00-00 ...HOUSING...HOUSING
-
178HG-14865-00-00 ...PULLEY...PULLEY
-
185VY-14856-00-00 ...SPRING...SPRING
-
198HG-14867-00-00 ...BRACKET...BRACKET
-
205VY-14643-00-00 ...GASKET 3...GASKET 3
-
2190110-06110-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
2290179-06063-00 ...NUT...NUT
-
235VY-14648-00-00 ...COLLAR 2...COLLAR 2
-
245VY-14674-00-00 ...VALVE, PLATE...VALVE, PLATE
-
2592990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
268HG-1465U-00-00 ...PLATE, PROTECTOR 3...PLATE, PROTECTOR 3
-
278HG-1465V-00-00 ...PLATE, PROTECTOR 4...PLATE, PROTECTOR 4
-
2890450-60007-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
298HG-14826-00-00 PROTECTOR, EXHAUSTPROTECTOR, EXHAUST
-
3090110-06110-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3190119-08148-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3297012-08030-00 BOLTBOLT
-
335VY-85820-10-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
348HG-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
358HG-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
365VY-85829-00-00 COVER, SERVO MOTORCOVER, SERVO MOTOR
-
3797702-50514-00 SCREW, TAPPINGSCREW, TAPPING
-
3890480-14005-00 GROMMETGROMMET
-
3990387-06158-00 COLLARCOLLAR
-
408HG-2116J-00-00 BRACKET 7BRACKET 7
-
4191312-06025-00 BOLTBOLT
-
4290201-06M31-00 WASHER, PLATEWASHER, PLATE
-
4395802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4490119-06230-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
455VY-14755-00-00 GASKET, SILENCERGASKET, SILENCER
-
468HG-14788-00-00 BAND, SILENCERBAND, SILENCER
-
4795812-08035-00 BOLT, FLANGEBOLT, FLANGE
-
488HG-14750-01-00 SILENCER ASSYSILENCER ASSY
-
498FA-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
5090387-08087-00 COLLARCOLLAR
-
5190201-14023-00 WASHER, PLATEWASHER, PLATE
-
5290119-08096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
538HG-14708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
5495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
558HG-1478N-00-00 PLATE 8PLATE 8
-
5690183-06053-00 NUT, SPRINGNUT, SPRING
-
5795812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
5890338-20007-00 PLUGPLUG
-
5990338-28239-00 PLUGPLUG
-
608HG-14686-00-00 WIRE LOCKINGWIRE LOCKING
-
618HG-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
628HG-14844-00-00 ...DAMPER...DAMPER
-
638HG-14425-00-00 ...DAMPER 1...DAMPER 1
-
648HG-14426-00-00 ...DAMPER 2...DAMPER 2
-
6598902-06012-00 SCREW, BINDSCREW, BIND
-
6690183-060A2-00 NUT, SPRINGNUT, SPRING
-
6790338-30004-00 PLUGPLUG
