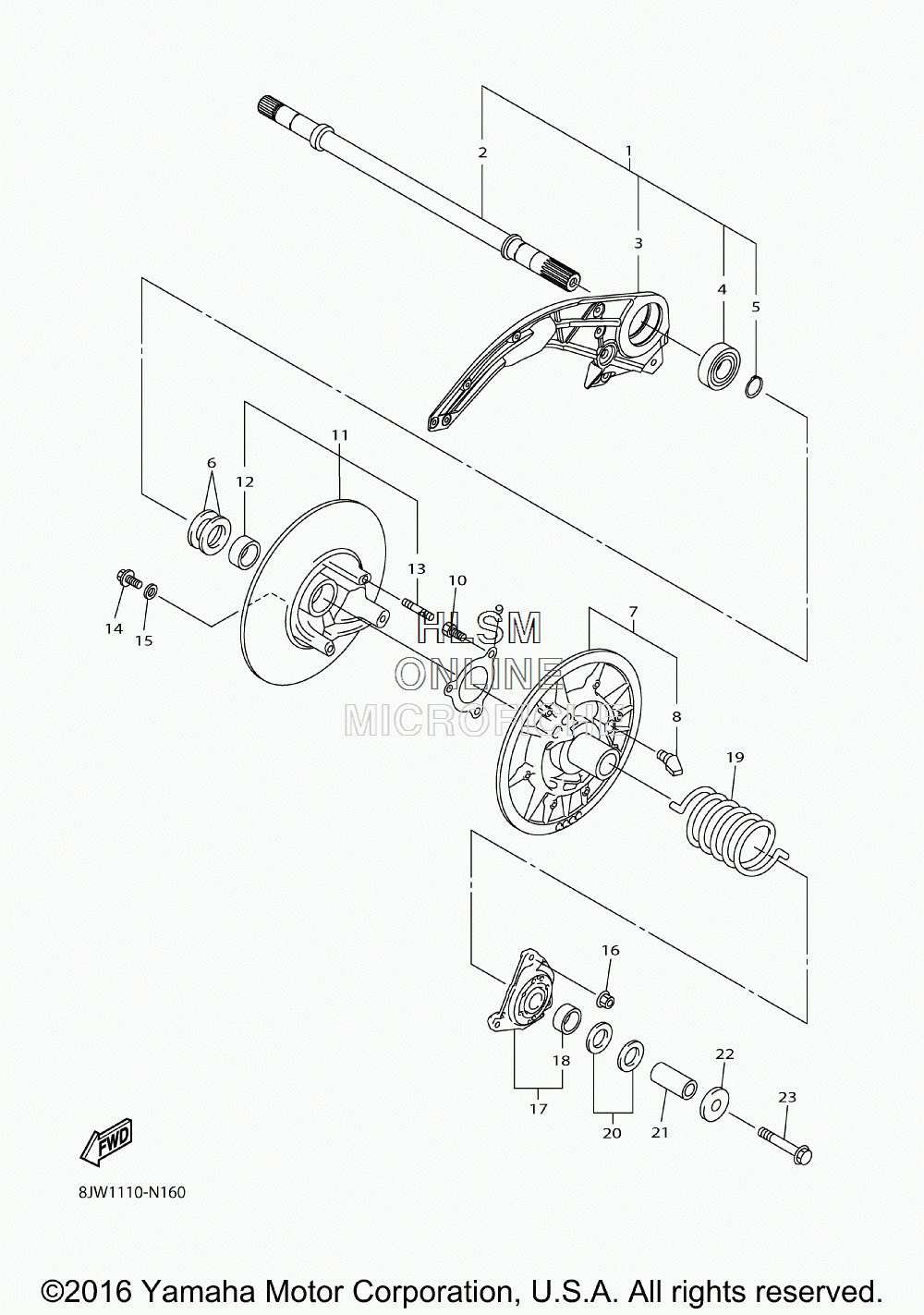

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha SR VIPER R-TX - 2014 года выпуска`

№

Артикул

Название
1

8JP-E7680-00-00 SECONDARY SHAFT COMP.

SECONDARY SHAFT COMP.

196 710 ₽
2

8JP-E7681-00-00 ...SHAFT, SECONDARY

...SHAFT, SECONDARY

74 330 ₽
3

8JP-G7631-00-00 ...HOUSING, BEARING

...HOUSING, BEARING

109 460 ₽
4

8JP-RAG07-00-00 ...BEARING, 6206

...BEARING, 6206

15 270 ₽
5

8JP-RAH03-00-00 ...CIRCLIP, 1

...CIRCLIP, 1

480 ₽
6

8JP-RA448-00-00 WASHER, 28X40X1 (OPT)

WASHER, 28X40X1 (OPT)

650 ₽
6

8JP-RA449-00-00 WASHER, 28X40X2 (OPT)

WASHER, 28X40X2 (OPT)

890 ₽
7

8GL-17660-30-00 SECONDARY FIXED SHEAVE COMP.

SECONDARY FIXED SHEAVE COMP.

54 020 ₽
8

8AV-17688-10-00 ...SHOE, RAMP

...SHOE, RAMP

2 360 ₽
9

8BV-17656-00-00 STOPPER, HOLDER

STOPPER, HOLDER

2 040 ₽
10

90154-06062-00 SCREW, BINDING

SCREW, BINDING

290 ₽
11

8BU-17670-30-00 SECONDARY SLIDING SHEAVE

SECONDARY SLIDING SHEAVE

24 250 ₽
12

90384-38243-00 ...BUSH, BIMETAL FORMED

...BUSH, BIMETAL FORMED

3 620 ₽
13

95617-08630-00 ...BOLT, STUD

...BOLT, STUD

380 ₽
14

90105-06734-00 BOLT WASHER BASED

BOLT WASHER BASED

260 ₽
15

90201-061H1-00 WASHER, PLATE (T=0.5) (OPT)

WASHER, PLATE (T=0.5) (OPT)

340 ₽
15

90201-06037-00 WASHER, PLATE (T=1.0) (OPT)

WASHER, PLATE (T=1.0) (OPT)

340 ₽
16

90179-08655-00 NUT SPEC'L SHAPE

NUT SPEC'L SHAPE

530 ₽
17

8BV-17604-31-00 SEAT SPRING SET

SEAT SPRING SET

16 690 ₽
18

90384-38243-00 ...BUSH, BIMETAL FORMED

...BUSH, BIMETAL FORMED

3 620 ₽
19

90508-60012-00 SPRING, TORSION (PINK)

SPRING, TORSION (PINK)

3 300 ₽
20

8JP-RA447-00-00 WASHER, 25X36X2 (OPT)

WASHER, 25X36X2 (OPT)

1 000 ₽
20

8JP-RA446-00-00 WASHER, 25X36X1 (OPT)

WASHER, 25X36X1 (OPT)

650 ₽
20

8JP-RA433-00-00 WASHER, 2 (OPT)

WASHER, 2 (OPT)

500 ₽
21

8JP-RA714-00-00 COLLAR, 2

COLLAR, 2

4 090 ₽
22

8JP-RA442-00-00 WASHER, 10.5X33X4

WASHER, 10.5X33X4

1 140 ₽
23

8JP-RA1A6-00-00 BOLT, FLANGE M10X1.25X75

BOLT, FLANGE M10X1.25X75

3 460 ₽
