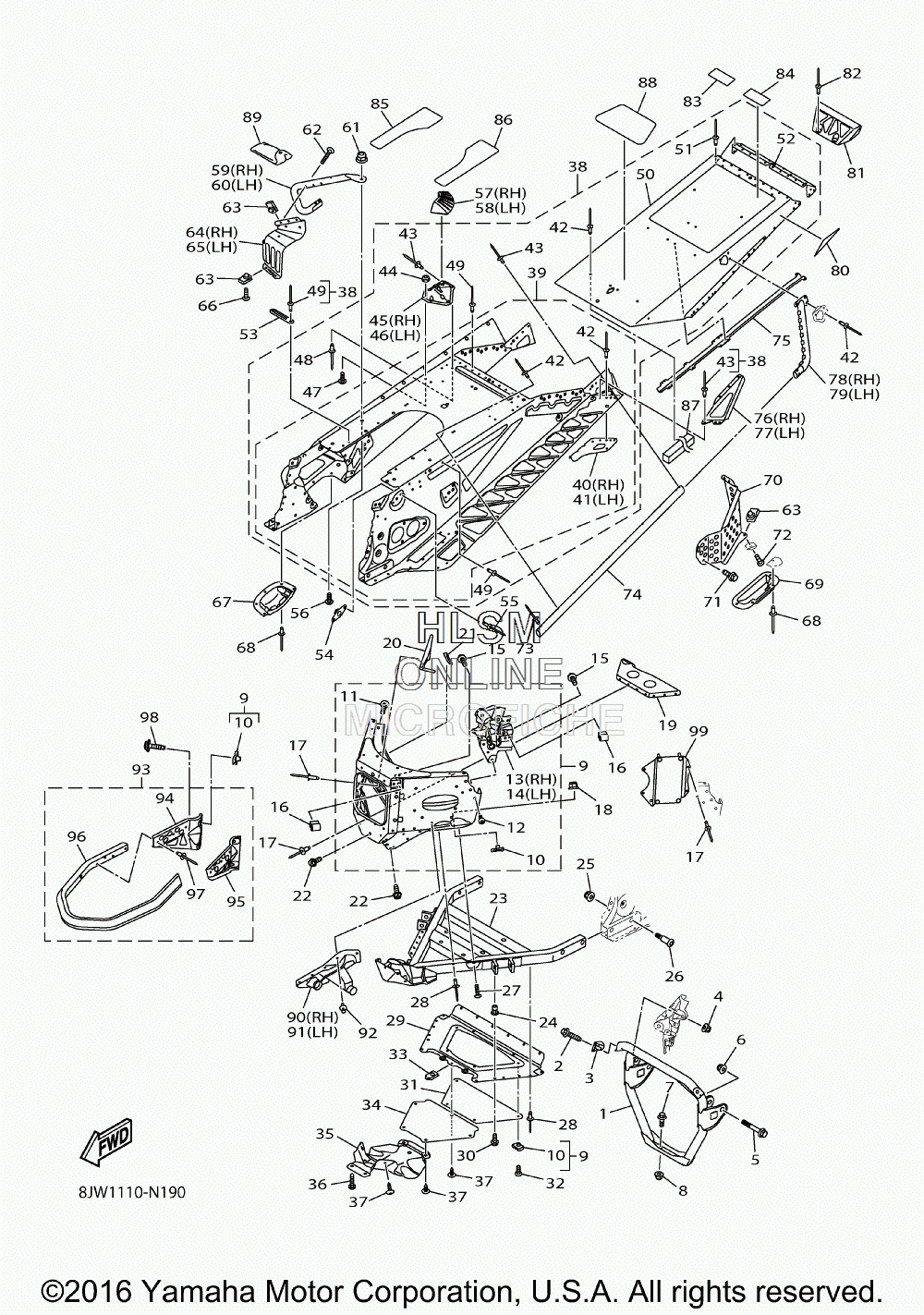

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SR VIPER R-TX SE - 2014 года выпуска`
-
№АртикулНазвание
-
18JP-F194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
28JP-RA188-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
38JP-F3775-00-00 INSERTINSERT
-
48JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
58JP-RA1A5-00-00 BOLT, FLANGE M12X1.25X75BOLT, FLANGE M12X1.25X75
-
68JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
78JP-RA195-00-00 BOLT, FLANGE M10X1.25X25BOLT, FLANGE M10X1.25X25
-
88JP-RA360-00-00 NUT, FLANGE LOCKING M10X1.25NUT, FLANGE LOCKING M10X1.25
-
98JP-F191A-00-00 BULKHEADBULKHEAD
-
108JP-RA354-00-00 ...NUT, CLIP M6...NUT, CLIP M6
-
118JP-RA281-00-00 ...SCREW, TAPPING M6X1X20...SCREW, TAPPING M6X1X20
-
128JP-RA271-00-00 ...SCREW, M6X1X16...SCREW, M6X1X16
-
138JP-F377J-00-00 ...HOLDER, ABSORBER 2...HOLDER, ABSORBER 2
-
148JP-F376J-00-00 ...HOLDER, ABSORBER...HOLDER, ABSORBER
-
158JP-RA180-00-00 BOLT, FLANGE M6X1.0X16BOLT, FLANGE M6X1.0X16
-
168JP-F2219-00-00 BRACKET, UPPERBRACKET, UPPER
-
178JP-RA520-00-00 RIVET, 11RIVET, 11
-
188JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
198JP-F198E-00-00 REINFORCEMENT, FRAME 3REINFORCEMENT, FRAME 3
-
208JP-F131G-00-00 BRACKET, STOPPER STEEERINGBRACKET, STOPPER STEEERING
-
218JP-F15B3-00-00 TRIM (3 FEET)TRIM (3 FEET)
-
228JP-RA279-00-00 SCREW, TAPPING 1/4-20X5/8SCREW, TAPPING 1/4-20X5/8
-
238JW-F196A-30-00 FRAME UNDER 1 FOR DPBSEFRAME UNDER 1 FOR DPBSE
-
238JW-F196A-00-00 FRAME UNDER 1 FOR VRC1FRAME UNDER 1 FOR VRC1
-
248JP-RA331-00-00 NUT, HEXAGON M8NUT, HEXAGON M8
-
258JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
268JP-RA275-00-00 SCREW, M8X1.25X44.16SCREW, M8X1.25X44.16
-
278JP-RA258-00-00 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
288JP-RA518-00-00 RIVET, 9RIVET, 9
-
298JP-F196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
308JP-RA245-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
318JP-F2863-00-00 COVER, UNDERCOVER, UNDER
-
328JP-RA255-00-00 SCREW, M6X1.0X16SCREW, M6X1.0X16
-
338JP-RA349-00-00 NUT, CLIPNUT, CLIP
-
348JP-F114G-00-00 PANEL, UNDERPANEL, UNDER
-
358JP-F2865-00-00 COVER, FRONTCOVER, FRONT
-
368JP-RA246-00-00 SCREW, M5X0.8X25SCREW, M5X0.8X25
-
378JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
388JW-F1950-30-00 REAR FRAME COMP. FOR DPBSEREAR FRAME COMP. FOR DPBSE
-
388JW-F1950-00-00 REAR FRAME COMP. FOR VRC1REAR FRAME COMP. FOR VRC1
-
398JW-F1911-30-00 ......PANEL, FRAME FOR DPBSE......PANEL, FRAME FOR DPBSE
-
398JW-F1911-00-00 ......PANEL, FRAME FOR VRC1......PANEL, FRAME FOR VRC1
-
408JW-F1954-30-00 ............BRACKET, REAR TRACK SUS FOR DPBSE............BRACKET, REAR TRACK SUS FOR DPBSE
-
408JW-F1954-00-00 ............BRACKET, REAR TRACK SUS FOR VRC1............BRACKET, REAR TRACK SUS FOR VRC1
-
418JW-F1944-30-00 ............BRACKET, REAR TRACK SUS FOR DPBSE............BRACKET, REAR TRACK SUS FOR DPBSE
-
418JW-F1944-00-00 ............BRACKET, REAR TRACK SUS FOR VRC1............BRACKET, REAR TRACK SUS FOR VRC1
-
428JP-RA518-00-00 ......RIVET, 9 FOR DPBSE......RIVET, 9 FOR DPBSE
-
428JP-RA520-00-00 ......RIVET, 11 FOR VRC1......RIVET, 11 FOR VRC1
-
438JP-RA527-00-00 ...RIVET, 3/16...RIVET, 3/16
-
448JP-RA370-00-00 ...NUT, HEX. LOCKING...NUT, HEX. LOCKING
-
458JW-F115M-30-00 ...BRKT., MEMBER 2 FOR DPBSE...BRKT., MEMBER 2 FOR DPBSE
-
458JW-F115M-00-00 ...BRACKET, MEMBER 2 FOR VRC1...BRACKET, MEMBER 2 FOR VRC1
-
468JW-F115L-30-00 ...BRACKET, MEMBER 1 FOR DPBSE...BRACKET, MEMBER 1 FOR DPBSE
-
468JW-F115L-00-00 ...BRACKET, MEMBER 1 FOR VRC1...BRACKET, MEMBER 1 FOR VRC1
-
478JP-RA239-00-00 ...SCREW, 5...SCREW, 5
-
488JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
498JP-RA517-00-00 ...RIVET, 8 FOR DPBSE...RIVET, 8 FOR DPBSE
-
498JP-RA529-00-00 ...RIVET, 17 FOR VRC1...RIVET, 17 FOR VRC1
-
508JW-F1912-30-00 ......PANEL, SUB FRAME 1 FOR DPBSE......PANEL, SUB FRAME 1 FOR DPBSE
-
508JW-F1912-00-00 ......PANEL, SUB FRAME 1 FOR VRC1......PANEL, SUB FRAME 1 FOR VRC1
-
518JP-RA514-00-00 ...RIVET, 5 FOR DPBSE...RIVET, 5 FOR DPBSE
-
518JP-RA530-00-00 ...RIVET, 18 FOR VRC1...RIVET, 18 FOR VRC1
-
528JW-F1923-30-00 ...REINEFORCEMENT, FRAME REAR 1 FOR DPBSE...REINEFORCEMENT, FRAME REAR 1 FOR DPBSE
-
528JW-F1923-00-00 ...REINEFORCEMENT, FRAME REAR 1 FOR VRC1...REINEFORCEMENT, FRAME REAR 1 FOR VRC1
-
538JP-RAB20-00-00 CLAMP, 18CLAMP, 18
-
548JP-F1919-00-00 BRACKETBRACKET
-
558JP-RA519-00-00 RIVET, 10 FOR DPBSERIVET, 10 FOR DPBSE
-
558JP-RA521-00-00 RIVET, 12 FOR VRC1RIVET, 12 FOR VRC1
-
568JP-RA272-00-00 SCREW, M8X1.25X20SCREW, M8X1.25X20
-
578JP-F2556-00-00 SUPPORT, FUEL TANK 2SUPPORT, FUEL TANK 2
-
588JP-F2555-00-00 SUPPORT, FUEL TANK 1SUPPORT, FUEL TANK 1
-
598JP-F192E-00-00 REINFORCEMENT, FRAME FOR VRC1REINFORCEMENT, FRAME FOR VRC1
-
598JW-F192E-30-00 REINFORCEMENT, FRAME FOR DPBSEREINFORCEMENT, FRAME FOR DPBSE
-
608JP-F1929-00-00 REINFORCEMENT, FRAME SIDE FOR VRC1REINFORCEMENT, FRAME SIDE FOR VRC1
-
608JW-F1929-30-00 REINFORCEMENT, FRAME SIDE FOR DPBSEREINFORCEMENT, FRAME SIDE FOR DPBSE
-
618JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
628JP-RA247-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
638JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
648JW-F1996-30-00 REINFORCEMENT SUB FRAME FR 2 FOR DPBSEREINFORCEMENT SUB FRAME FR 2 FOR DPBSE
-
648JW-F1996-00-00 REINFORCEMENT SUB FRAME FR 2 FOR VRC1REINFORCEMENT SUB FRAME FR 2 FOR VRC1
-
658JW-F1995-30-00 REINFORCEMENT SUB FRAME FR 1 FOR DPBSEREINFORCEMENT SUB FRAME FR 1 FOR DPBSE
-
658JW-F1995-00-00 REINFORCEMENT SUB FRAME FR 1 FOR VRC1REINFORCEMENT SUB FRAME FR 1 FOR VRC1
-
668JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
678JP-F2147-00-00 PROTECTOR, CHAINPROTECTOR, CHAIN
-
688JP-RA523-00-00 RIVET, 14RIVET, 14
-
698JP-F5717-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
708JW-F5718-30-00 PROTECTOR, DISC BRAKE FOR DPBSEPROTECTOR, DISC BRAKE FOR DPBSE
-
708JW-F5718-00-00 PROTECTOR, DISC BRAKE FOR VRC1PROTECTOR, DISC BRAKE FOR VRC1
-
718JP-RA179-00-00 BOLT, FLG. M6X1.0X12BOLT, FLG. M6X1.0X12
-
728JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
738JP-RA526-00-00 RIVET, 3/16RIVET, 3/16
-
748JW-F1926-30-00 REINFORCEMENT, FOOTREST 1 FOR DPBSEREINFORCEMENT, FOOTREST 1 FOR DPBSE
-
748JW-F1926-00-00 REINFORCEMENT, FOOTREST 1 FOR VRC1REINFORCEMENT, FOOTREST 1 FOR VRC1
-
758JP-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
768JW-F1135-30-00 GUSSET FOR DPBSEGUSSET FOR DPBSE
-
768JW-F1135-00-00 GUSSET FOR VRC1GUSSET FOR VRC1
-
778JW-F1134-30-00 GUSSET FOR DPBSEGUSSET FOR DPBSE
-
778JW-F1134-00-00 GUSSET FOR VRC1GUSSET FOR VRC1
-
788JW-F1137-30-00 GUSSET FOR DPBSEGUSSET FOR DPBSE
-
788JW-F1137-00-00 GUSSET FOR VRC1GUSSET FOR VRC1
-
798JW-F1136-30-00 GUSSET FOR DPBSEGUSSET FOR DPBSE
-
798JW-F1136-00-00 GUSSET FOR VRC1GUSSET FOR VRC1
-
808JP-F151A-00-00 LABEL 1LABEL 1
-
818JW-F117E-30-00 BRACKET, TAILLIGHT FOR DPBSEBRACKET, TAILLIGHT FOR DPBSE
-
818JW-F117E-00-00 BRACKET, TAILLIGHT FOR VRC1BRACKET, TAILLIGHT FOR VRC1
-
828JP-RA517-00-00 RIVET, 8RIVET, 8
-
838JP-K7762-70-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
848JP-K7762-S0-00 LABEL, WARNING 2 (FRENCH)LABEL, WARNING 2 (FRENCH)
-
858JP-F197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
868JP-F197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
878JP-F1978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
888JP-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
898JP-F8100-00-00 TOOL KITTOOL KIT
-
908JP-F198J-00-00 COVER 3COVER 3
-
918JP-F198F-00-00 COVER 1COVER 1
-
928JP-RA511-00-00 RIVET, 2RIVET, 2
-
938JP-K7510-00-00 FRONT BUMPER COMP.FRONT BUMPER COMP.
-
948JP-F1959-00-00 ...BRACKET, FRONT BUMPER...BRACKET, FRONT BUMPER
-
958JP-F1949-00-00 ...BRACKET, FRONT...BRACKET, FRONT
-
968JP-K7511-00-00 ...BUMPER, FRONT 1...BUMPER, FRONT 1
-
978JP-RA520-00-00 ...RIVET, 11...RIVET, 11
-
988JP-RA270-00-00 SCREW, M6X18SCREW, M6X18
-
998JP-H5991-00-00 BRACKET, UNITBRACKET, UNIT
