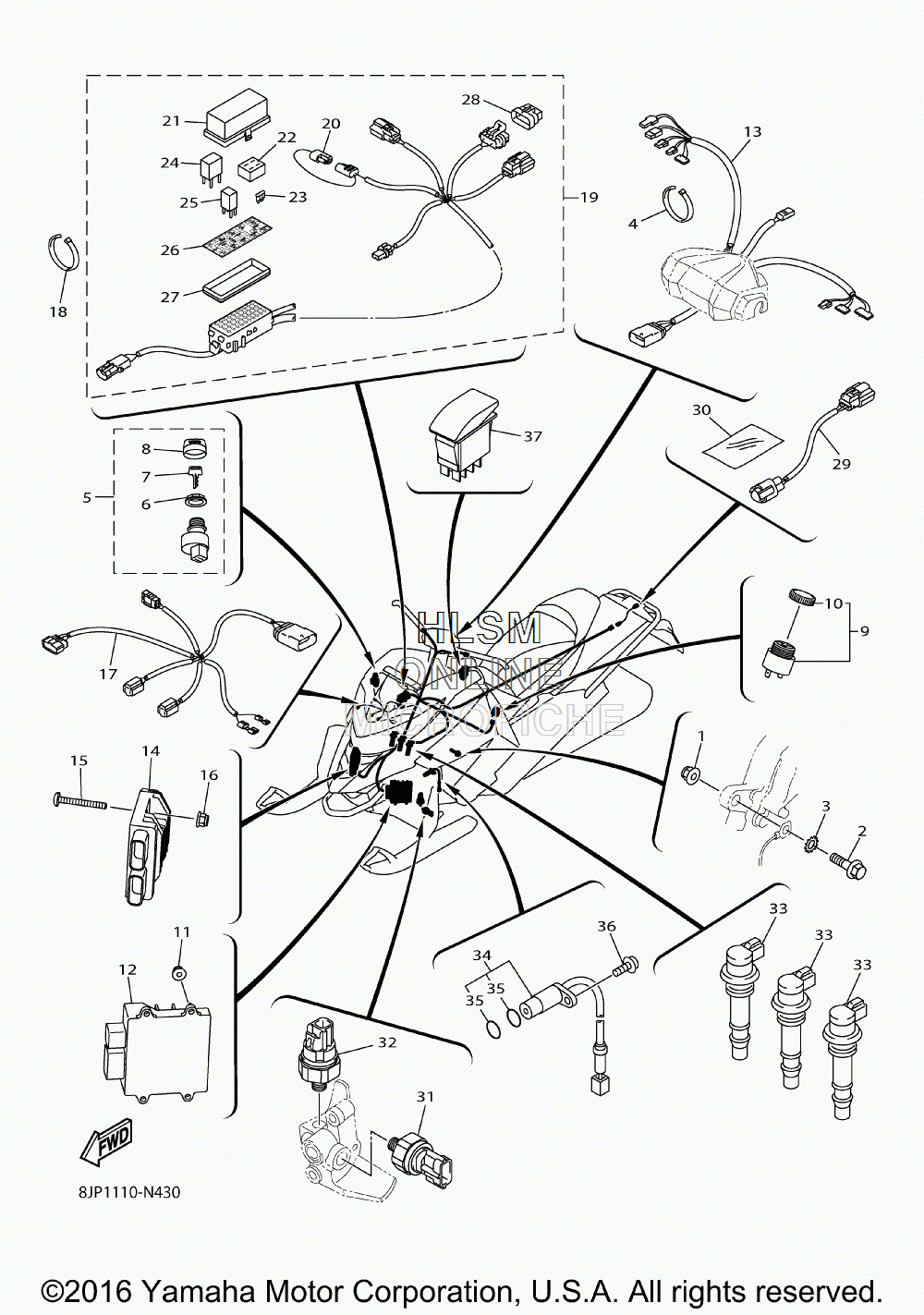

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha SR VIPER LTX - 2014 года выпуска`
-
№АртикулНазвание
-
18JP-RA360-00-00 NUT, FLANGE LOCKING M10X1.25NUT, FLANGE LOCKING M10X1.25
-
28JP-RA197-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
38JP-RA456-00-00 WASHER, TOOTH 3/8WASHER, TOOTH 3/8
-
48JM-RAB01-00-00 TIE CABLE-8.5/7.5/7 (OPT)TIE CABLE-8.5/7.5/7 (OPT)
-
48JP-RAB03-00-00 CLAMP, 1 (4-INCH) (OPT)CLAMP, 1 (4-INCH) (OPT)
-
58JP-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
68JP-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
78JP-H2511-10-00 ...KEY (Z SERIES, RIGHT-SIDE CUT (OPT)...KEY (Z SERIES, RIGHT-SIDE CUT (OPT)
-
78JP-H2511-00-00 ...KEY (Y SERIESE, LEFT-SIDE CUT (OPT)...KEY (Y SERIESE, LEFT-SIDE CUT (OPT)
-
88JP-H2577-00-00 ...CAP, KEY...CAP, KEY
-
98JP-H2564-00-00 ALARM UNITALARM UNIT
-
108JP-H4395-00-00 ...RING, RETAINING...RING, RETAINING
-
118JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
128JP-H591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
138JP-H2318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
148JP-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
158JP-RA264-00-00 SCREW, M6X1.0X25SCREW, M6X1.0X25
-
168JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
178JP-H2105-00-00 WIRE HARNESSWIRE HARNESS
-
188JP-RAB03-00-00 CLAMP, 1 (4-INCH)CLAMP, 1 (4-INCH)
-
188JP-RAB04-00-00 CLAMP, 2 (11.5 INCH)CLAMP, 2 (11.5 INCH)
-
188JM-RAB01-00-00 TIE CABLE-8.5/7.5/7TIE CABLE-8.5/7.5/7
-
198JP-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
208JP-G8352-00-00 ...ANCHOR, CABLE 1...ANCHOR, CABLE 1
-
218JP-H2172-00-00 ...COVER, FUSE BOX...COVER, FUSE BOX
-
228JP-H2152-00-00 ...HOLDER, FUSE...HOLDER, FUSE
-
238JP-H2151-30-00 ...FUSE (30A)...FUSE (30A)
-
238JP-H2151-20-00 ...FUSE (25A)...FUSE (25A)
-
238JP-H2151-00-00 ...FUSE (15A)...FUSE (15A)
-
238JP-H2151-10-00 ...FUSE (20A)...FUSE (20A)
-
248JP-H2185-00-00 ...RELAY (5PIN) 30AMP...RELAY (5PIN) 30AMP
-
258JP-H2189-00-00 ...RELAY (4PIN) 20AMP...RELAY (4PIN) 20AMP
-
268JP-R2391-00-00 ...EMBLEM 1...EMBLEM 1
-
278JP-H1365-00-00 ...GASKET, HOLE COVER...GASKET, HOLE COVER
-
288JP-H1662-10-00 ......COVER, CONNECTER......COVER, CONNECTER
-
298JP-H2586-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
308JM-F199H-00-00 TAPE ALUM FOIL - 6"TAPE ALUM FOIL - 6"
-
318GN-83651-00-00 SENDER, OIL PRESSURESENDER, OIL PRESSURE
-
328FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
338ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
348GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
355VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
3690110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
378JP-H2627-00-00 SWITCHSWITCH
