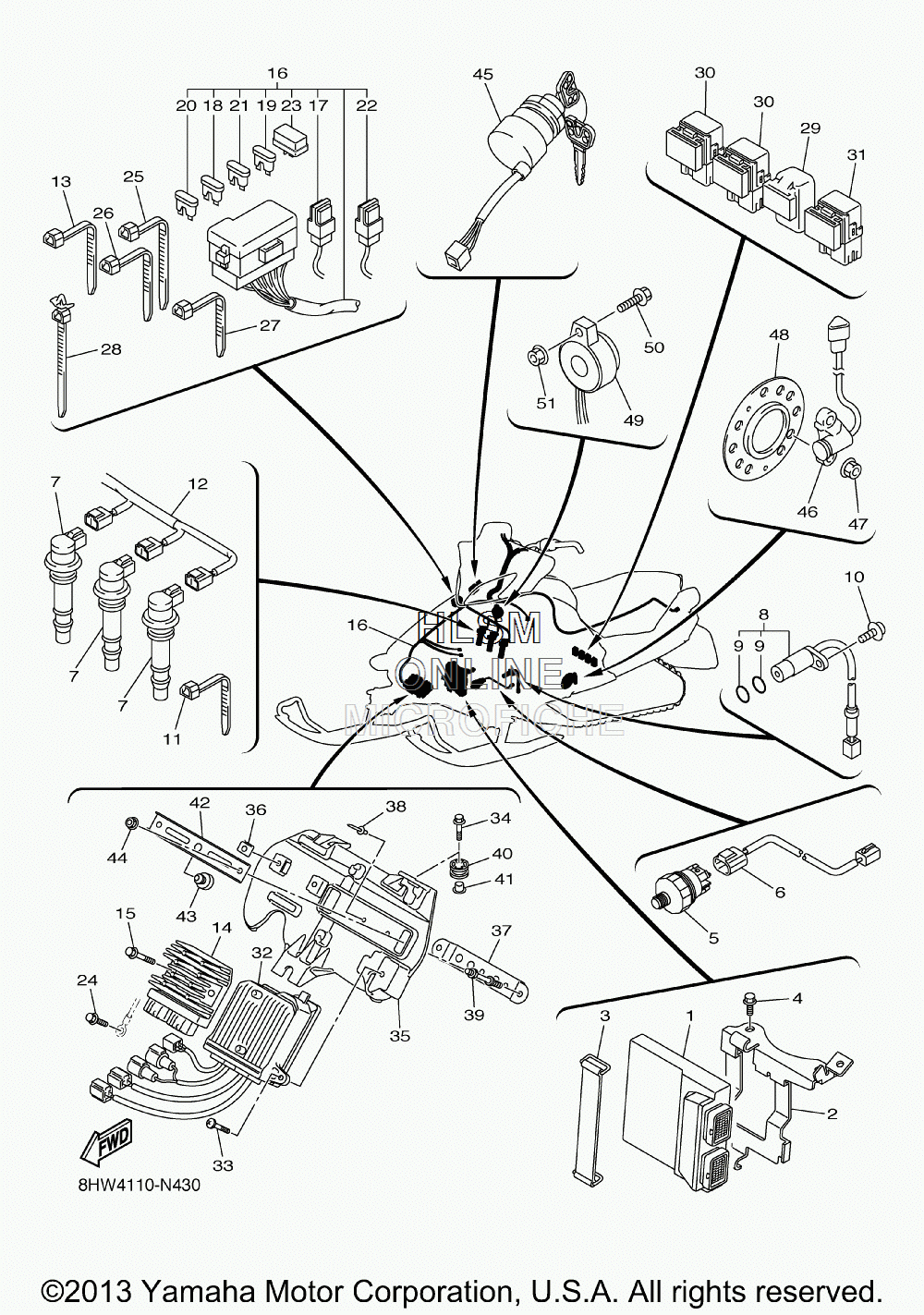

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha RS VECTOR LTX - 2014 года выпуска`
-
№АртикулНазвание
-
18HV-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
28HF-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
32T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
495822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
58FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
68GL-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
78ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
88GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
95VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
1090110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190464-13073-00 CLAMPCLAMP
-
128HV-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1390464-13073-00 CLAMPCLAMP
-
141D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1595802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
168HV-82590-30-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
175PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
185JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
195JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
205JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
215JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
224FM-82151-00-00 ...FUSE (30A)...FUSE (30A)
-
234WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2495802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2590464-15195-00 CLAMPCLAMP
-
2690464-13073-00 CLAMPCLAMP
-
2790464-13077-00 CLAMPCLAMP
-
2890464-12036-00 CLAMPCLAMP
-
295DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
308HG-81950-09-00 RELAY ASSY (8HG-09)RELAY ASSY (8HG-09)
-
318GN-81950-00-00 RELAY ASSY (8GN-00)RELAY ASSY (8GN-00)
-
328HG-859A0-10-00 POWER STEERING CONTROL UNIT ASSPOWER STEERING CONTROL UNIT ASS
-
3398902-06020-00 SCREW, BINDSCREW, BIND
-
3490119-06105-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
358HG-2830X-00-00 BRACKET, CONTROL UNITBRACKET, CONTROL UNIT
-
3690183-06053-00 NUT, SPRINGNUT, SPRING
-
378HG-2836A-00-00 BRACKET 1BRACKET 1
-
3890267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
398HG-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
4090480-12023-00 GROMMETGROMMET
-
4190387-06203-00 COLLARCOLLAR
-
428HG-81948-00-00 BRACKETBRACKET
-
4322W-24741-00-00 PAD, SEATPAD, SEAT
-
4495702-06500-00 NUT, FLANGENUT, FLANGE
-
458HV-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
468HG-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
4795702-08300-00 NUT, NYLONNUT, NYLON
-
488EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
498GL-83383-00-00 BUZZERBUZZER
-
5090159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
5195702-05500-00 NUT, FLANGENUT, FLANGE
