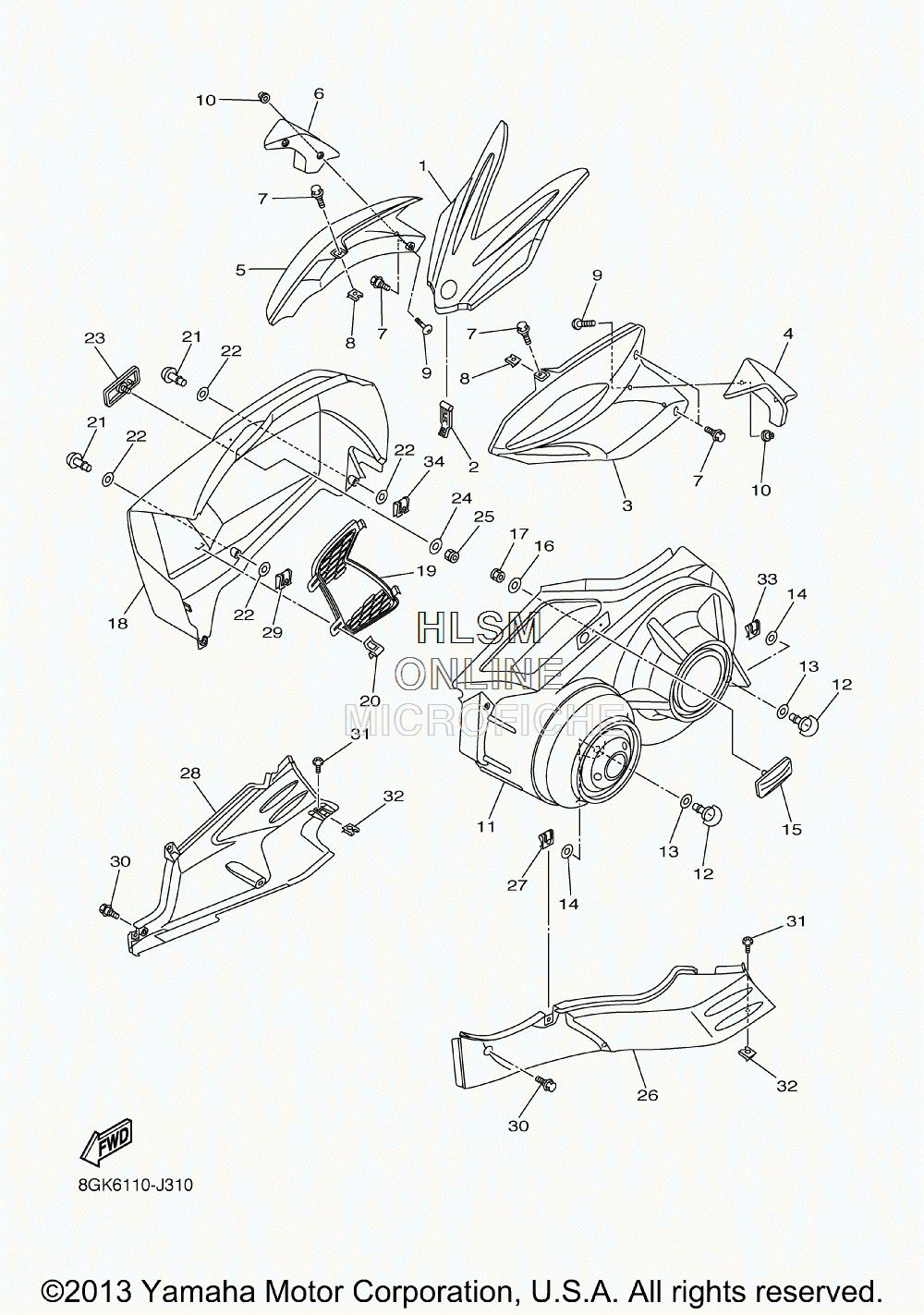

HOOD ASSY для Yamaha PHAZER RTX - 2014 года выпуска`
-
№АртикулНазвание
-
18GC-77111-30-00 SHROUDSHROUD
-
259V-21646-00-00 BANDBAND
-
38GK-2835U-30-00 PANEL 1PANEL 1
-
48GK-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
58GK-2835V-30-00 PANEL 2PANEL 2
-
68GK-77562-00-00 PROTECTOR, SIDE 2PROTECTOR, SIDE 2
-
790109-06220-00 BOLTBOLT
-
890183-06100-00 NUT, SPRINGNUT, SPRING
-
998902-05016-00 SCREW, BINDSCREW, BIND
-
1090179-05523-00 NUTNUT
-
118GC-2197H-00-00 HOOD 3HOOD 3
-
128HG-28386-00-00 HEADHEAD
-
138HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
148HR-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
158FR-77185-00-00 PLATE 1PLATE 1
-
1690201-05036-00 WASHER, PLATEWASHER, PLATE
-
1795702-05300-00 NUT, NYLONNUT, NYLON
-
188GC-2198H-01-00 HOOD 4HOOD 4
-
198GC-77134-00-00 LOUVER 4LOUVER 4
-
2090468-06001-00 CLIPCLIP
-
215PW-28386-00-00 HEADHEAD
-
228HW-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
238FR-77185-00-00 PLATE 1PLATE 1
-
2490201-05036-00 WASHER, PLATEWASHER, PLATE
-
2595702-05300-00 NUT, NYLONNUT, NYLON
-
268GC-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
274XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
288GC-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
295PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3090109-06220-00 BOLTBOLT
-
3190149-06105-00 SCREWSCREW
-
3290183-06100-00 NUT, SPRINGNUT, SPRING
-
334XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
345PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
