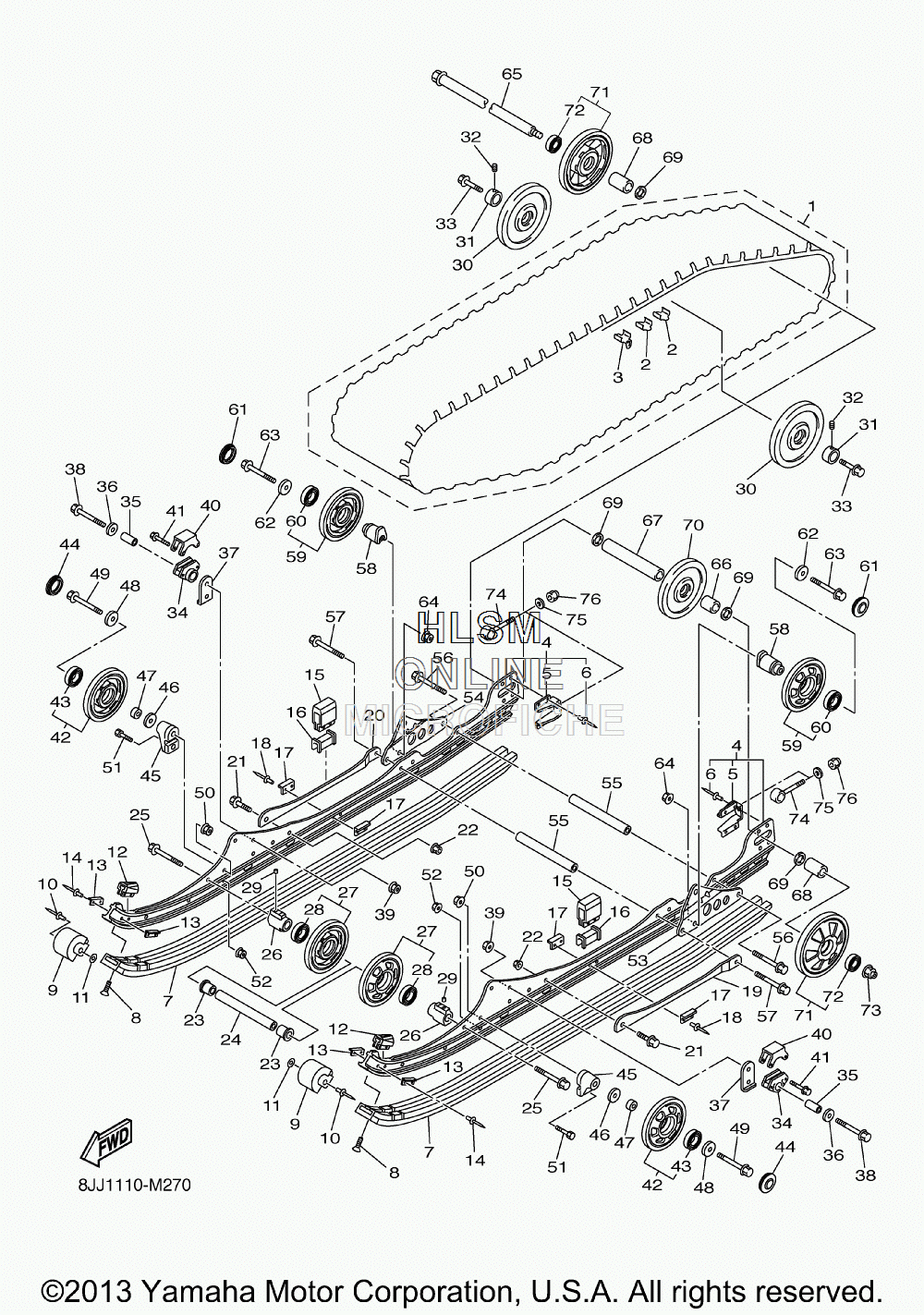

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO XTX 1.75 - 2014 года выпуска`
-
№АртикулНазвание
-
18JJ-47110-00-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48HL-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
58DM-4741B-00-00 ...BRACKET...BRACKET
-
68V0-47468-00-00 ...RIVET...RIVET
-
78HL-47421-10-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
98GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1090267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1190201-047R8-00 WASHER, PLATEWASHER, PLATE
-
128ES-47456-00-00 DAMPER 1DAMPER 1
-
138K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1490267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
158CM-47457-00-00 DAMPER 2DAMPER 2
-
168HL-47341-00-00 SPACERSPACER
-
178AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1890267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
198HL-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
208HL-4741D-00-00 FRAME, SLIDING DFRAME, SLIDING D
-
2195812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
2390386-20001-00 BUSHBUSH
-
248GN-47487-00-00 SHAFT 5SHAFT 5
-
2590105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
268ES-47319-10-00 COLLARCOLLAR
-
278HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2893306-00507-00 ...BEARING...BEARING
-
2990113-06039-00 BOLT, SETBOLT, SET
-
308CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
318ES-47365-00-00 COLLAR 1COLLAR 1
-
3290113-06039-00 BOLT, SETBOLT, SET
-
3390105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
348JJ-47446-00-00 HOOK 1HOOK 1
-
3590387-10081-00 COLLARCOLLAR
-
3690201-100S0-00 WASHER, PLATEWASHER, PLATE
-
378HL-47374-00-00 WASHER 1WASHER 1
-
3895812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
408JJ-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
4197022-05030-00 BOLT, HEXAGONBOLT, HEXAGON
-
428HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4393306-00507-00 ...BEARING...BEARING
-
448HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
458CM-47419-10-00 BRACKET 7BRACKET 7
-
4690201-10714-00 WASHER, PLATEWASHER, PLATE
-
4790387-10031-00 COLLARCOLLAR
-
4890201-101U2-00 WASHER, PLATEWASHER, PLATE
-
4990105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
5095602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
5190101-08063-00 BOLTBOLT
-
5295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538HL-47463-00-00 BRACKET 5BRACKET 5
-
548HL-47464-00-00 BRACKET 6BRACKET 6
-
558HL-47485-00-00 SHAFT 3SHAFT 3
-
5690105-08150-00 BOLT, FLANGEBOLT, FLANGE
-
5790105-08228-00 BOLT, FLANGEBOLT, FLANGE
-
588ES-47419-00-00 BRACKET 7BRACKET 7
-
598HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
6093306-00507-00 ...BEARING...BEARING
-
618HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
6290201-101U2-00 WASHER, PLATEWASHER, PLATE
-
6390105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
6495602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
658L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
6690387-20015-00 COLLARCOLLAR
-
6790387-20016-00 COLLARCOLLAR
-
6890387-20019-00 COLLARCOLLAR
-
6990201-205R6-00 WASHER, PLATEWASHER, PLATE
-
708CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
718HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
7293306-00444-00 ...BEARING...BEARING
-
7395602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
748DM-47479-00-00 COLLAR 3COLLAR 3
-
7592902-10600-00 WASHER, PLATEWASHER, PLATE
-
7695702-10300-00 NUT, NYLONNUT, NYLON
