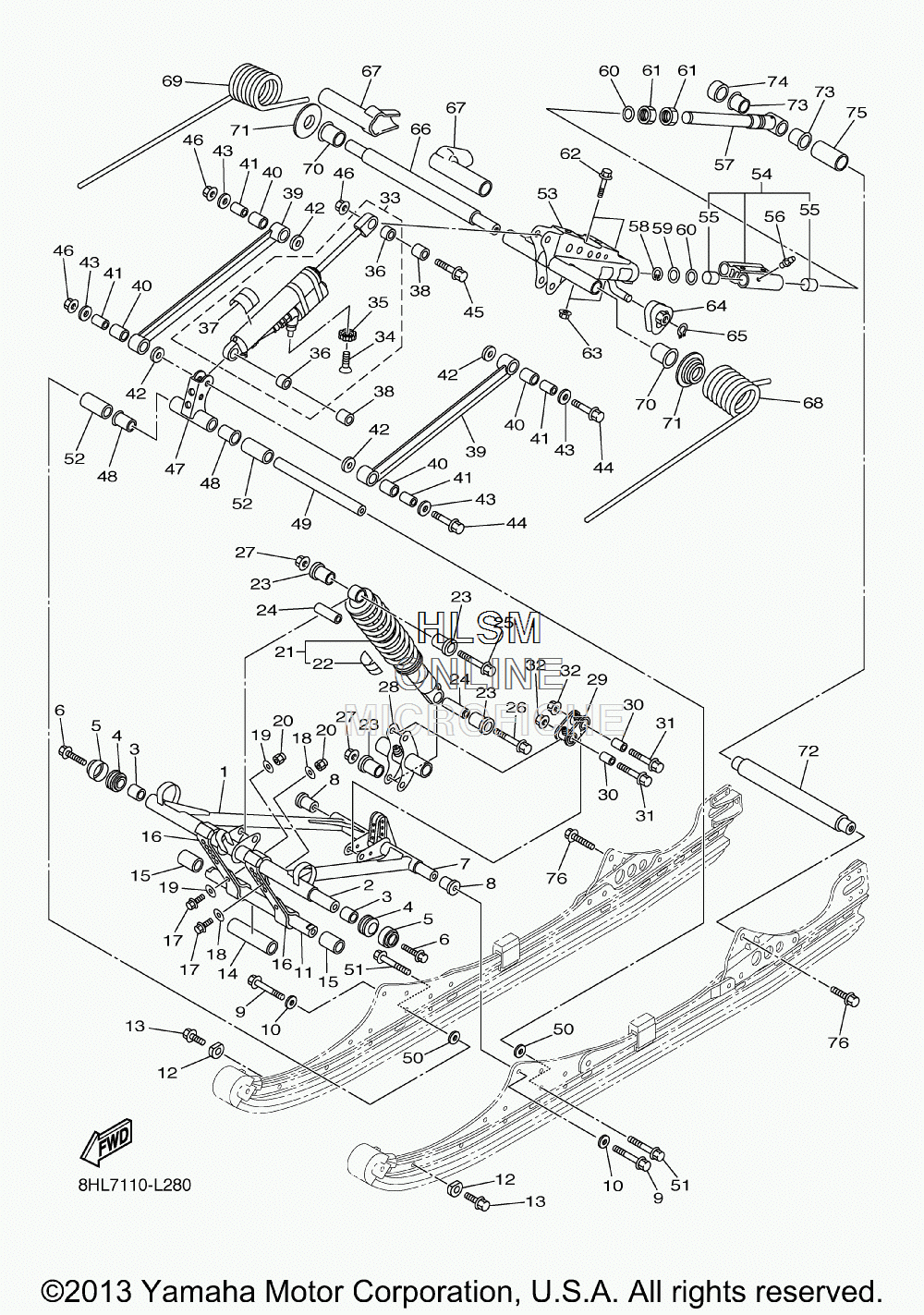

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha FX NYTRO XTX 1.75 - 2014 года выпуска`
-
№АртикулНазвание
-
18HL-47331-10-00 ARM, PIVOT 1ARM, PIVOT 1
-
28HL-47465-00-00 SHAFT 1SHAFT 1
-
390383-23002-00 BUSH, FORMEDBUSH, FORMED
-
493108-37011-00 OIL SEALOIL SEAL
-
58HF-47341-00-00 SPACERSPACER
-
690109-10030-00 BOLTBOLT
-
78ES-47486-00-00 SHAFT 4SHAFT 4
-
890387-10022-00 COLLARCOLLAR
-
990105-10329-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-10071-00 WASHER, PLATEWASHER, PLATE
-
118GL-47486-00-00 SHAFT 4SHAFT 4
-
128GL-47341-00-00 SPACERSPACER
-
1390105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
1490387-19002-00 COLLARCOLLAR
-
1590387-19006-00 COLLARCOLLAR
-
168HL-47495-10-00 STOPPER 1STOPPER 1
-
1797002-06025-00 BOLTBOLT
-
1890201-06036-00 WASHER, PLATEWASHER, PLATE
-
1990201-06081-00 WASHER, PLATEWASHER, PLATE
-
2095702-06300-00 NUT, NYLONNUT, NYLON
-
218HL-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
224AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
2390381-14101-00 BUSH, SOLIDBUSH, SOLID
-
2490387-105G5-00 COLLARCOLLAR
-
2595812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2690101-10738-00 BOLTBOLT
-
2795602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
288ES-47349-01-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
298FK-47416-01-00 BRACKET 2BRACKET 2
-
3090387-10024-00 COLLARCOLLAR
-
3195812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
338HL-47480-01-00 SHOCK ABSORBERSHOCK ABSORBER
-
3490142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
355EA-22464-00-00 ...KNOB (COMP)...KNOB (COMP)
-
3690384-18190-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
374AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
3890387-10023-00 COLLARCOLLAR
-
398FK-47494-00-00 ROD, RELAYROD, RELAY
-
4090386-16001-00 BUSHBUSH
-
4190387-101A1-00 COLLARCOLLAR
-
4290201-10046-00 WASHER, PLATEWASHER, PLATE
-
4390201-10043-00 WASHER, PLATEWASHER, PLATE
-
4490105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
4595812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
4695602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
478HL-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
4890386-20001-00 BUSHBUSH
-
498HP-47487-00-00 SHAFT 5SHAFT 5
-
5090201-10043-00 WASHER, PLATEWASHER, PLATE
-
5190105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
5290387-20032-00 COLLARCOLLAR
-
538HF-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
548ES-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5590380-24001-00 ...BUSH, SOLID...BUSH, SOLID
-
5693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
578HL-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
5899009-24400-00 CIRCLIP S-TYPECIRCLIP S-TYPE
-
5990201-24015-00 WASHER, PLATEWASHER, PLATE
-
6090202-25001-00 WASHER, PLATEWASHER, PLATE
-
618ES-48142-00-00 STOPPER, ADJUSTING NUTSTOPPER, ADJUSTING NUT
-
6295812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
6395602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
648ES-47447-00-00 HOOK 2HOOK 2
-
6599009-14400-00 CIRCLIPCIRCLIP
-
668ES-47475-01-00 SHAFT 2SHAFT 2
-
678HF-47445-00-00 PROTECTORPROTECTOR
-
688HL-47473-10-00 SPRING, REAR 1( K=1200NMM/DEG) (STD)SPRING, REAR 1( K=1200NMM/DEG) (STD)
-
688HL-47473-30-00 SPRING, REAR 1 (K=1400NMM/DEG) (OPT)SPRING, REAR 1 (K=1400NMM/DEG) (OPT)
-
698HL-47474-10-00 SPRING, REAR 2 (K=1200NMM/DEG) (STD)SPRING, REAR 2 (K=1200NMM/DEG) (STD)
-
698HL-47474-30-00 SPRING, REAR 2 (K=1400NMM/DEG) (OPT)SPRING, REAR 2 (K=1400NMM/DEG) (OPT)
-
7090381-28108-00 BUSH, SOLIDBUSH, SOLID
-
718ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
728ES-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
7390386-25001-00 BUSHBUSH
-
7490387-26002-00 COLLARCOLLAR
-
7590387-26003-00 COLLARCOLLAR
-
7695812-10030-00 BOLT, FLANGEBOLT, FLANGE
