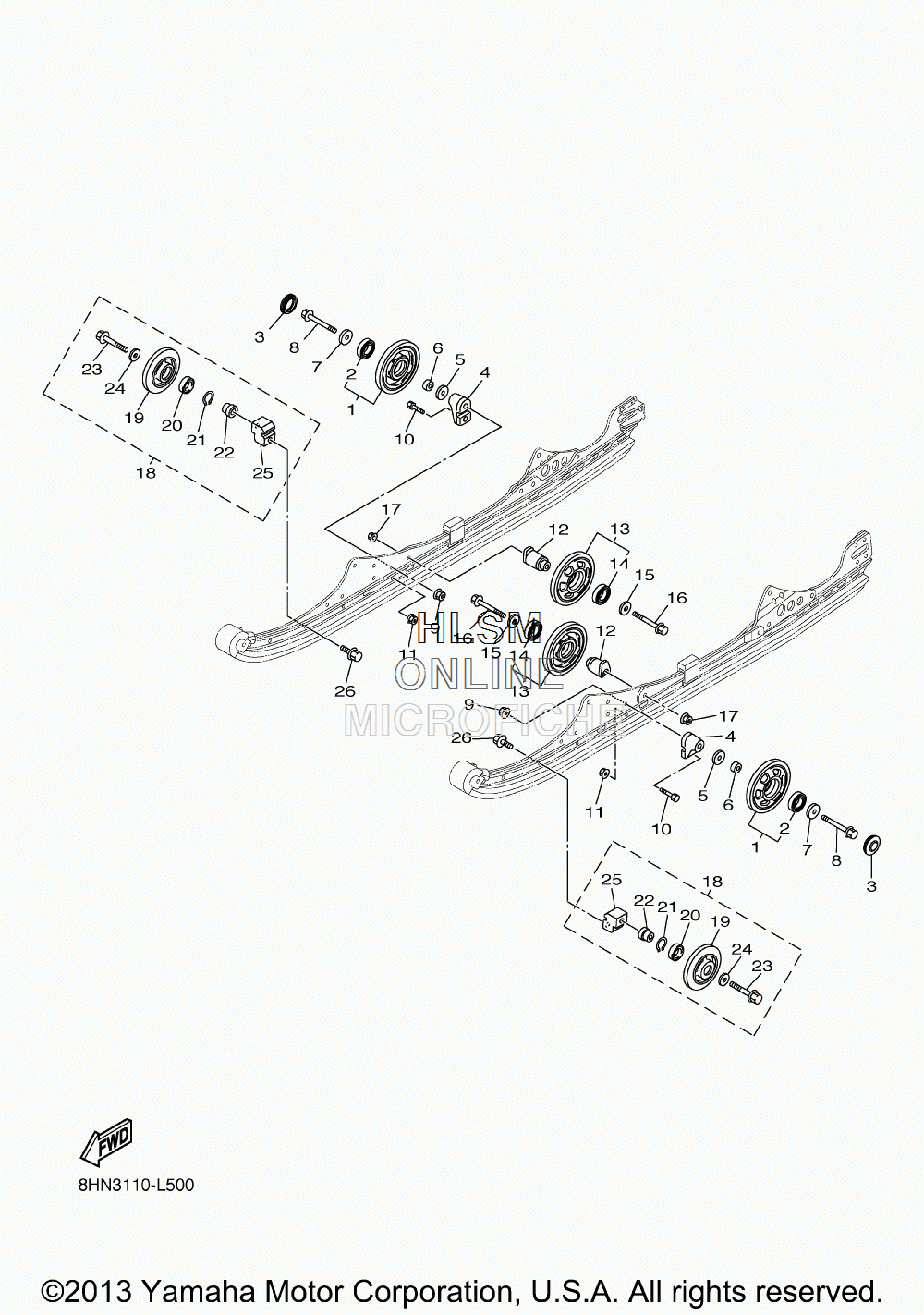

ALTERNATE (TRACK SUSPENSION) для Yamaha APEX XTX - 2014 года выпуска`
-
№АртикулНазвание
-
18HF-47310-10-00 SUSPENSION WHEEL ASSY (OPT)SUSPENSION WHEEL ASSY (OPT)
-
293306-00507-00 ...BEARING (OPT)...BEARING (OPT)
-
38HF-47317-00-00 CAP, WHEEL (OPT)CAP, WHEEL (OPT)
-
48CM-47419-10-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
590201-10714-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
690387-10031-00 COLLAR (OPT)COLLAR (OPT)
-
790201-101U2-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
890105-10241-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
995602-10200-00 NUT SELF LOCKING (OPT)NUT SELF LOCKING (OPT)
-
1090101-08063-00 BOLT (OPT)BOLT (OPT)
-
1195602-08200-00 NUT, SELF-LOCKING (OPT)NUT, SELF-LOCKING (OPT)
-
128ES-47419-00-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
138HF-47310-10-00 SUSPENSION WHEEL ASSY (OPT)SUSPENSION WHEEL ASSY (OPT)
-
1493306-00507-00 ...BEARING (OPT)...BEARING (OPT)
-
1590201-101U2-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
1690105-10150-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
1795602-10200-00 NUT SELF LOCKING (OPT)NUT SELF LOCKING (OPT)
-
188GP-47320-10-00 SUSPENSION WHEEL COMP. (OPT)SUSPENSION WHEEL COMP. (OPT)
-
198AC-47320-00-00 ...SUSPENSION WHEEL COMP. (OPT)...SUSPENSION WHEEL COMP. (OPT)
-
2093306-00444-00 ...BEARING (OPT)...BEARING (OPT)
-
2199009-42500-00 ...CIRCLIP (OPT)...CIRCLIP (OPT)
-
228GP-47319-00-00 ...COLLAR (OPT)...COLLAR (OPT)
-
2395812-10045-00 ...BOLT, FLANGE (OPT)...BOLT, FLANGE (OPT)
-
2490201-10052-00 ...WASHER, PLATE (OPT)...WASHER, PLATE (OPT)
-
258GP-47419-10-00 ...BRACKET 7 (OPT)...BRACKET 7 (OPT)
-
2690105-10237-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
