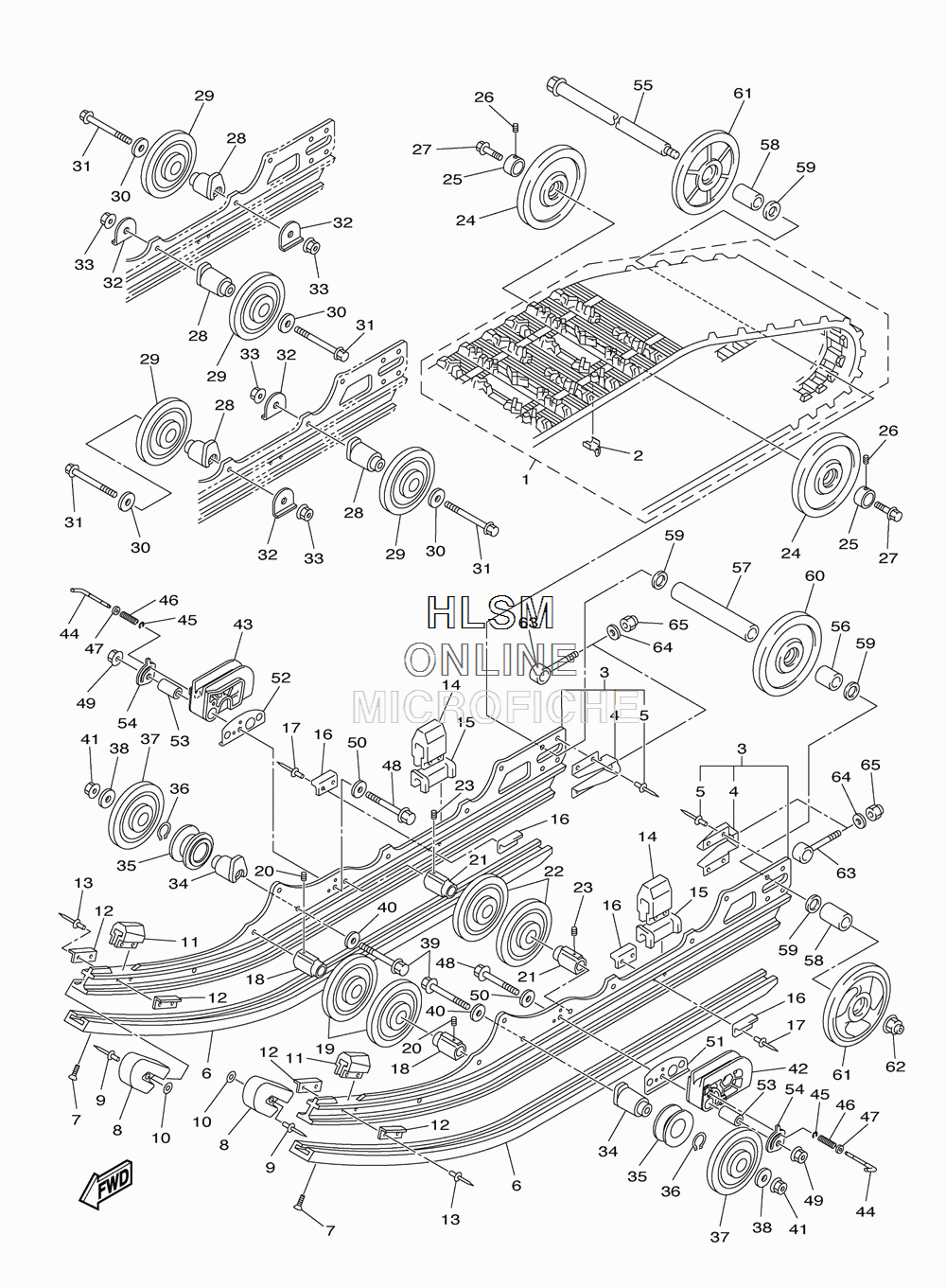

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha VENTURE MULTI PURPOSE - 2013 года выпуска`
-
№АртикулНазвание
-
18GR-47110-00-00 TRACK ASSYTRACK ASSY
-
28FA-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
38ET-W4741-11-00 FRAME, SLIDINGFRAME, SLIDING
-
48DM-4741B-00-00 ...BRACKET...BRACKET
-
58V0-47468-00-00 ...RIVET...RIVET
-
68ET-47421-00-00 RUNNER, SLIDING 144RUNNER, SLIDING 144
-
790151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
88ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
990267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1090201-047R8-00 WASHER, PLATEWASHER, PLATE
-
118ES-47456-00-00 DAMPER 1DAMPER 1
-
128K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1390267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
148CM-47457-00-00 DAMPER 2DAMPER 2
-
158CM-47341-00-00 SPACERSPACER
-
168AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1790267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
188ES-47319-01-00 COLLARCOLLAR
-
198ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2090113-06039-00 BOLT, SETBOLT, SET
-
218ES-47319-01-00 COLLARCOLLAR
-
228ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2390113-06039-00 BOLT, SETBOLT, SET
-
248CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
258FS-47365-00-00 COLLAR 1COLLAR 1
-
2690113-06039-00 BOLT, SETBOLT, SET
-
2790109-10030-00 BOLTBOLT
-
288ES-47419-00-00 BRACKET 7BRACKET 7
-
298ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3090201-101U2-00 WASHER, PLATEWASHER, PLATE
-
3195812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3290214-10003-00 WASHER, CLAWWASHER, CLAW
-
3395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
348ES-47419-10-00 BRACKET 7BRACKET 7
-
358ET-47446-00-00 HOOK 1HOOK 1
-
3699009-35400-00 CIRCLIPCIRCLIP
-
378ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3890201-101U2-00 WASHER, PLATEWASHER, PLATE
-
3995812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-10052-00 WASHER, PLATEWASHER, PLATE
-
4195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
428ET-47435-10-00 SPRING, OUTSIDE 1SPRING, OUTSIDE 1
-
438ET-47436-10-00 SPRING, OUTSIDE 2SPRING, OUTSIDE 2
-
448ET-47449-10-00 PIN 1PIN 1
-
4599001-04600-00 CIRCLIPCIRCLIP
-
4690501-08665-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4790387-061Y1-00 COLLARCOLLAR
-
4890105-10029-00 BOLT, FLANGEBOLT, FLANGE
-
4995607-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
5090201-106F2-00 WASHER, PLATEWASHER, PLATE
-
518ET-47374-10-00 WASHER 1WASHER 1
-
528ET-47375-10-00 WASHER 2WASHER 2
-
5390387-106K8-00 COLLARCOLLAR
-
548ET-47347-00-00 WASHER, LOCKWASHER, LOCK
-
558L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
5690387-20015-00 COLLARCOLLAR
-
5790387-20016-00 COLLARCOLLAR
-
5890387-20019-00 COLLARCOLLAR
-
5990201-205R6-00 WASHER, PLATEWASHER, PLATE
-
608CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
618EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
6295602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
638DM-47479-00-00 COLLAR 3COLLAR 3
-
6492902-10600-00 WASHER, PLATEWASHER, PLATE
-
6595702-10300-00 NUT, NYLONNUT, NYLON
