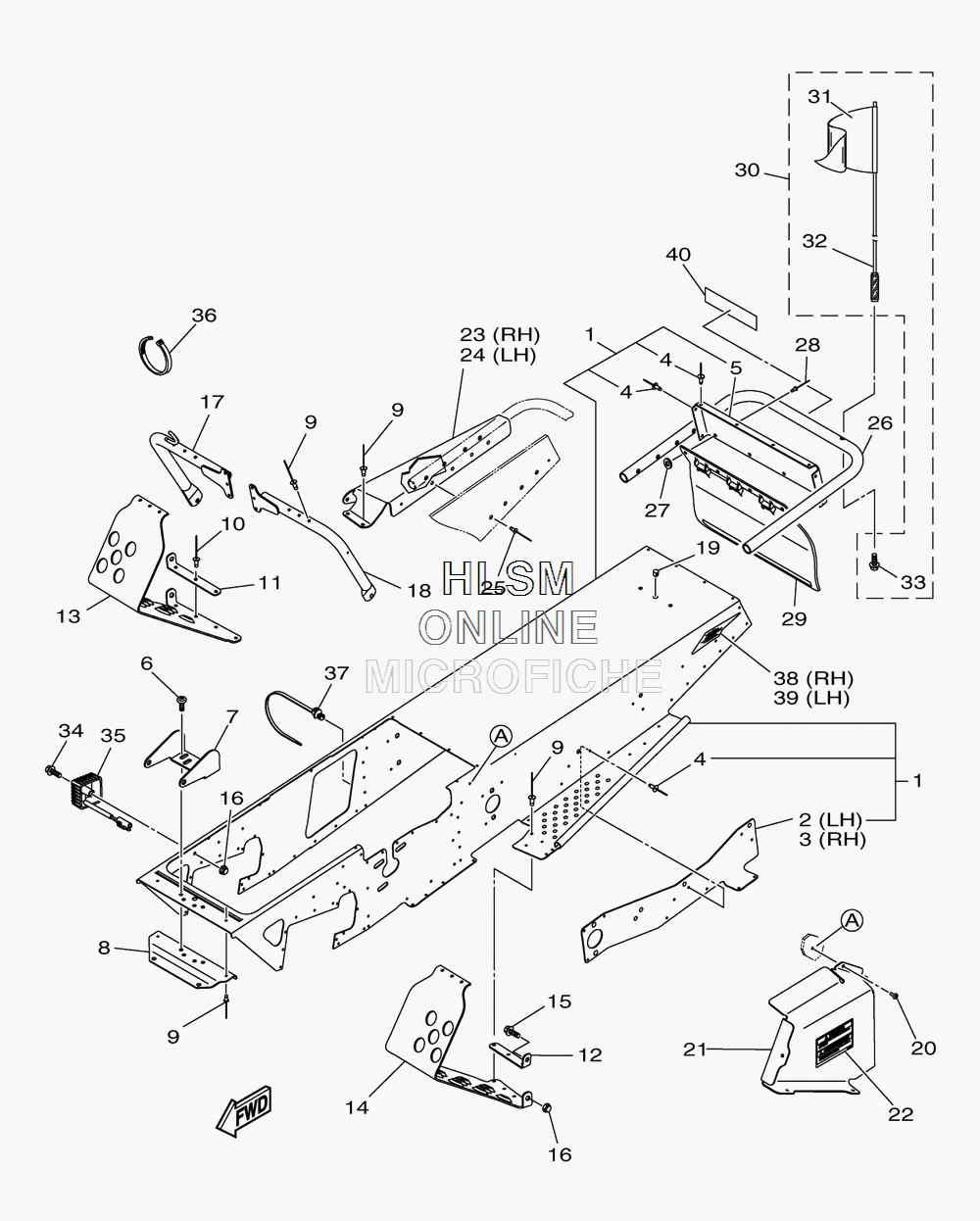

TUNNEL EXTENSION ASSEMBLY для Yamaha SX120 - 2013 года выпуска`
-
№АртикулНазвание
-
18JM-F1910-00-00 FRAME COMP.FRAME COMP.
-
28JM-F1943-00-00 ...PLATE,TUNNEL-REINF (RIGHT)...PLATE,TUNNEL-REINF (RIGHT)
-
38JM-F1953-00-00 ...PLATE,TUNNEL-REINF (LEFT)...PLATE,TUNNEL-REINF (LEFT)
-
48JM-RA504-00-00 ...RIVET, SOLID ALUM-.1...RIVET, SOLID ALUM-.1
-
58JM-F1923-00-00 ...PLATE,COVER-TUNNEL-P...PLATE,COVER-TUNNEL-P
-
68JM-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
78JM-F1979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
88JM-F191D-00-00 FRAME, FRONT ENDFRAME, FRONT END
-
98JM-RA500-00-00 RIVET, BLIND 1RIVET, BLIND 1
-
108JM-RA505-00-00 RIVET, BLIND 5RIVET, BLIND 5
-
118JM-F1931-00-00 REINFORCEMENT, FRAME FRONT (RIGHT)REINFORCEMENT, FRAME FRONT (RIGHT)
-
128JM-F1921-00-00 REINEFORCEMENT, FRAME REAR (LEFT)REINEFORCEMENT, FRAME REAR (LEFT)
-
138JM-F7421-00-00 FOOTREST - (RIGHT)FOOTREST - (RIGHT)
-
148JM-F7411-00-00 FOOTREST - (LEFT)FOOTREST - (LEFT)
-
158JM-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
168JM-RA300-00-00 NUT, SELF-LOCKING 1/4-20NUT, SELF-LOCKING 1/4-20
-
178JM-F192E-00-00 REINFORCEMENT, FRAME (RIGHT)REINFORCEMENT, FRAME (RIGHT)
-
188JM-F1929-00-00 REINFORCEMENT, FRAME SIDE (LEFT)REINFORCEMENT, FRAME SIDE (LEFT)
-
198JM-RA601-00-00 PLUG, HOLE-3/8 DIA-BPLUG, HOLE-3/8 DIA-B
-
208JM-RA203-00-00 SCREW, TAPPING 10-16X1/2SCREW, TAPPING 10-16X1/2
-
218JM-E3327-00-00 COVER, PUMP GEARCOVER, PUMP GEAR
-
228JM-K7762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
238JM-K7544-00-00 BUMPER, REAR 4 (RIGHT)BUMPER, REAR 4 (RIGHT)
-
248JM-K7543-00-00 BUMPER, REAR 3 (LEFT)BUMPER, REAR 3 (LEFT)
-
258JM-RA507-00-00 RIVET, BLIND 6RIVET, BLIND 6
-
268JM-K7541-00-00 BUMPER, REAR-PTD (BLACK)BUMPER, REAR-PTD (BLACK)
-
278JM-RA411-00-00 WASHER, PLAIN 0.194WASHER, PLAIN 0.194
-
288JM-RA508-00-00 RIVET, BLIND 7RIVET, BLIND 7
-
298JM-K7595-00-00 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
308JM-RAY04-00-00 FLAG ASSY.FLAG ASSY.
-
318JM-RAY05-00-00 ...FLAG...FLAG
-
328JM-RAY06-00-00 ...MOUNT, FLAG...MOUNT, FLAG
-
338JM-RA104-00-00 ...BOLT, FLANGE 5/16-18X1.25...BOLT, FLANGE 5/16-18X1.25
-
348JM-RA138-00-00 BOLT, FLANGE 1/4-20X1.5BOLT, FLANGE 1/4-20X1.5
-
358JM-H1910-00-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
368JM-RAB01-00-00 CLAMP, 2CLAMP, 2
-
378JM-RAB02-00-00 CLAMP, 3CLAMP, 3
-
388JM-H511F-00-00 DECAL, REFLECTOR (RIGHT)DECAL, REFLECTOR (RIGHT)
-
398JM-H511E-00-00 DECAL, REFLECTOR (LEFT)DECAL, REFLECTOR (LEFT)
-
408JM-F153A-00-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
