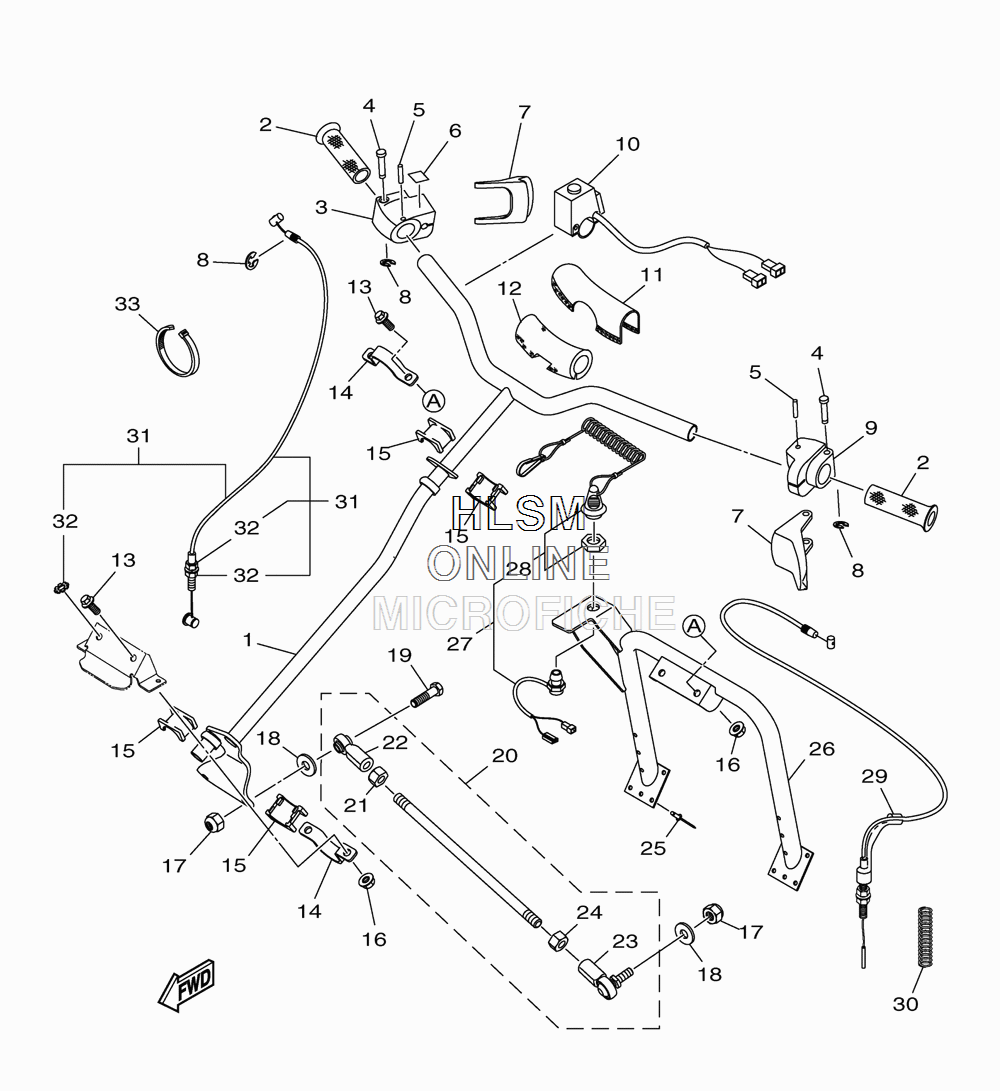

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha SX120 - 2013 года выпуска`
-
№АртикулНазвание
-
18JM-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
28JM-F6241-00-00 GRIPGRIP
-
38JM-H2921-00-00 HOLDER, LEVER 2HOLDER, LEVER 2
-
48JM-RAY07-00-00 PIN, 1/4D X 1 5/8PIN, 1/4D X 1 5/8
-
58JM-RAY08-00-00 PIN,SPRING-3/16X1-1/PIN,SPRING-3/16X1-1/
-
68JM-H2108-00-00 DECAL,SWITCH-EMERGENCYDECAL,SWITCH-EMERGENCY
-
78JM-H3912-00-00 LEVER 1LEVER 1
-
88JM-RAH02-00-00 CIRCLIP, 3CIRCLIP, 3
-
98JM-H2911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
108JM-H2575-00-00 ENGINE STOP SWITCH ASSYENGINE STOP SWITCH ASSY
-
118JM-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
128JM-F3817-00-00 PAD, STEERINGPAD, STEERING
-
138JM-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
148JM-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
158JM-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
168JM-RA300-00-00 NUT, SELF-LOCKING 1/4-20NUT, SELF-LOCKING 1/4-20
-
178JM-RA306-00-00 NUT, SELF-LOCKING 5/16-24NUT, SELF-LOCKING 5/16-24
-
188JM-RA403-00-00 WASHER, PLAIN 5/16WASHER, PLAIN 5/16
-
198JM-RA113-00-00 BOLT, HEXAGON 5/16-24X1.5BOLT, HEXAGON 5/16-24X1.5
-
208JM-F3830-00-00 TIE ROD ASSYTIE ROD ASSY
-
218JM-RA307-00-00 NUT, HEXAGON 5/16-24 LEFT HANDNUT, HEXAGON 5/16-24 LEFT HAND
-
228JM-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
238JM-F3847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
248JM-RA308-00-00 NUT, HEXAGON 5/16-24NUT, HEXAGON 5/16-24
-
258JM-RA500-00-00 RIVET, BLIND 1RIVET, BLIND 1
-
268JM-F3870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
278JM-H2551-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
288JM-H2552-00-00 CAP, SWITCHCAP, SWITCH
-
298JM-F6340-00-00 CABLE, BRAKECABLE, BRAKE
-
308JM-F5735-00-00 SPRING, RETURN 1SPRING, RETURN 1
-
318JM-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
328JM-RA407-00-00 ...WASHER, TOOTHED LOCK 1/4...WASHER, TOOTHED LOCK 1/4
-
338JM-RAB01-00-00 TIE, CABLE-8.5/7.5/7TIE, CABLE-8.5/7.5/7
