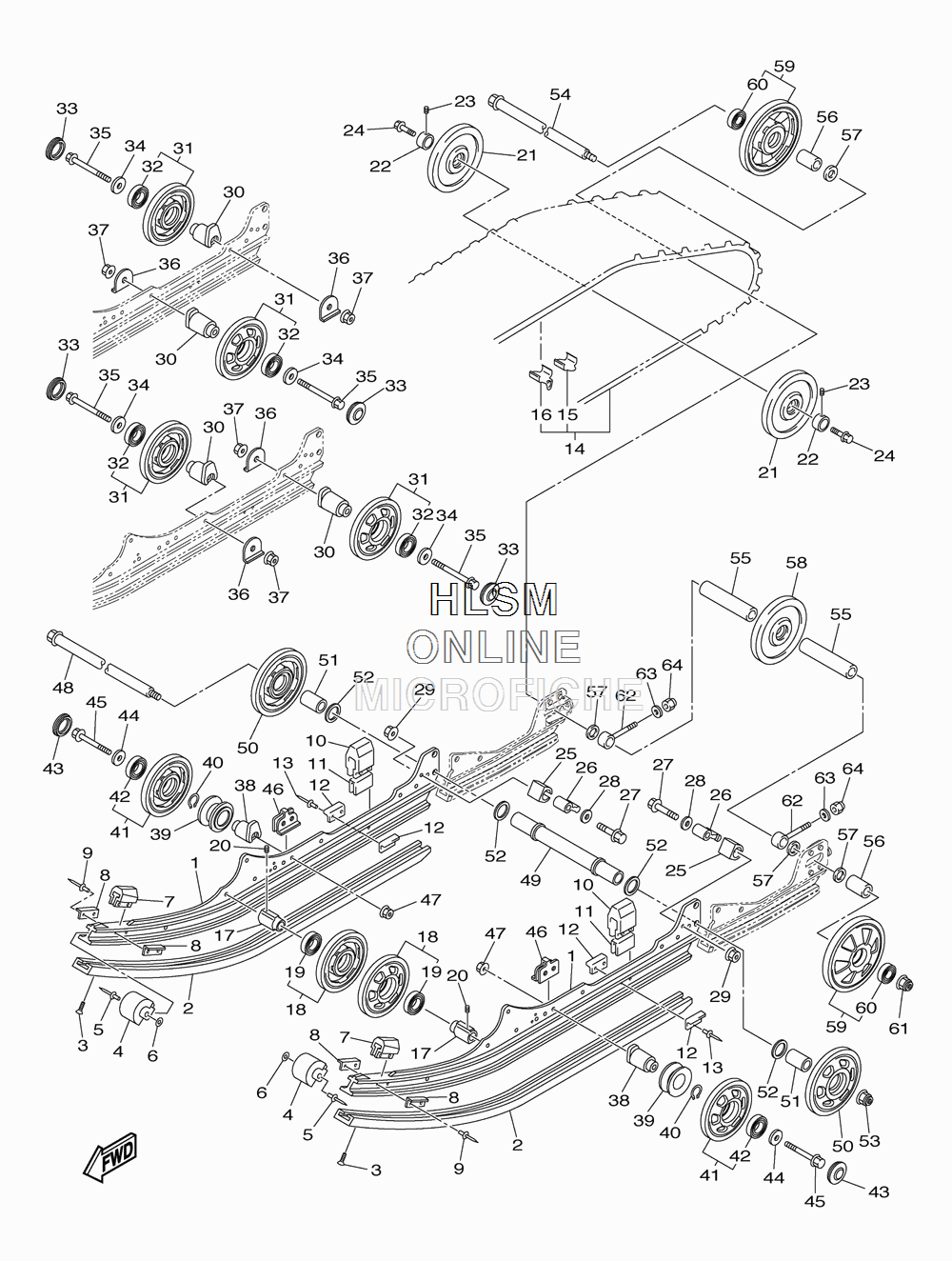

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VIKING PRO - 2013 года выпуска`
-
№АртикулНазвание
-
18JE-4741A-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28JE-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
390151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
48GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
590267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
690201-047R8-00 WASHER, PLATEWASHER, PLATE
-
78ES-47456-00-00 DAMPER 1DAMPER 1
-
88K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
990267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
108AC-47457-00-00 DAMPER 2DAMPER 2
-
118AC-47341-00-00 SPACERSPACER
-
128AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1390267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
148JD-47110-01-00 TRACK ASSYTRACK ASSY
-
158HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
168HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
178ES-47319-01-00 COLLARCOLLAR
-
188HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1993306-00507-00 ...BEARING...BEARING
-
2090113-06039-00 BOLT, SETBOLT, SET
-
218AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
228JD-47365-00-00 COLLAR 1COLLAR 1
-
2390113-06039-00 BOLT, SETBOLT, SET
-
2490109-10030-00 BOLTBOLT
-
258GC-47496-00-00 STOPPER 2STOPPER 2
-
268GN-47338-00-00 COLLARCOLLAR
-
2795812-10050-00 BOLT, FLANGEBOLT, FLANGE
-
2890201-10061-00 WASHER, PLATEWASHER, PLATE
-
2995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
308ES-47419-00-00 BRACKET 7BRACKET 7
-
318HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3293306-00507-00 ...BEARING...BEARING
-
338HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
3490201-10038-00 WASHER, PLATEWASHER, PLATE
-
3595812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3690214-10003-00 WASHER, CLAWWASHER, CLAW
-
3795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
388ES-47419-10-00 BRACKET 7BRACKET 7
-
398ET-47446-00-00 HOOK 1HOOK 1
-
4099009-35400-00 CIRCLIPCIRCLIP
-
418HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4293306-00507-00 BEARINGBEARING
-
438HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
4490201-10038-00 WASHER, PLATEWASHER, PLATE
-
4595812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
468HP-47384-00-00 WASHERWASHER
-
4795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
4883R-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4983R-47469-10-00 COLLAR 1COLLAR 1
-
508HP-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5190387-20022-00 COLLARCOLLAR
-
5290201-20022-00 WASHER, PLATEWASHER, PLATE
-
5395602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5483R-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
5590387-20023-00 COLLARCOLLAR
-
5690387-20022-00 COLLARCOLLAR
-
5790201-20022-00 WASHER, PLATEWASHER, PLATE
-
588CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
598HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
6093306-00444-00 ...BEARING...BEARING
-
6195602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
628DM-47479-00-00 COLLAR 3COLLAR 3
-
6392902-10600-00 WASHER, PLATEWASHER, PLATE
-
6495702-10300-00 NUT, NYLONNUT, NYLON
