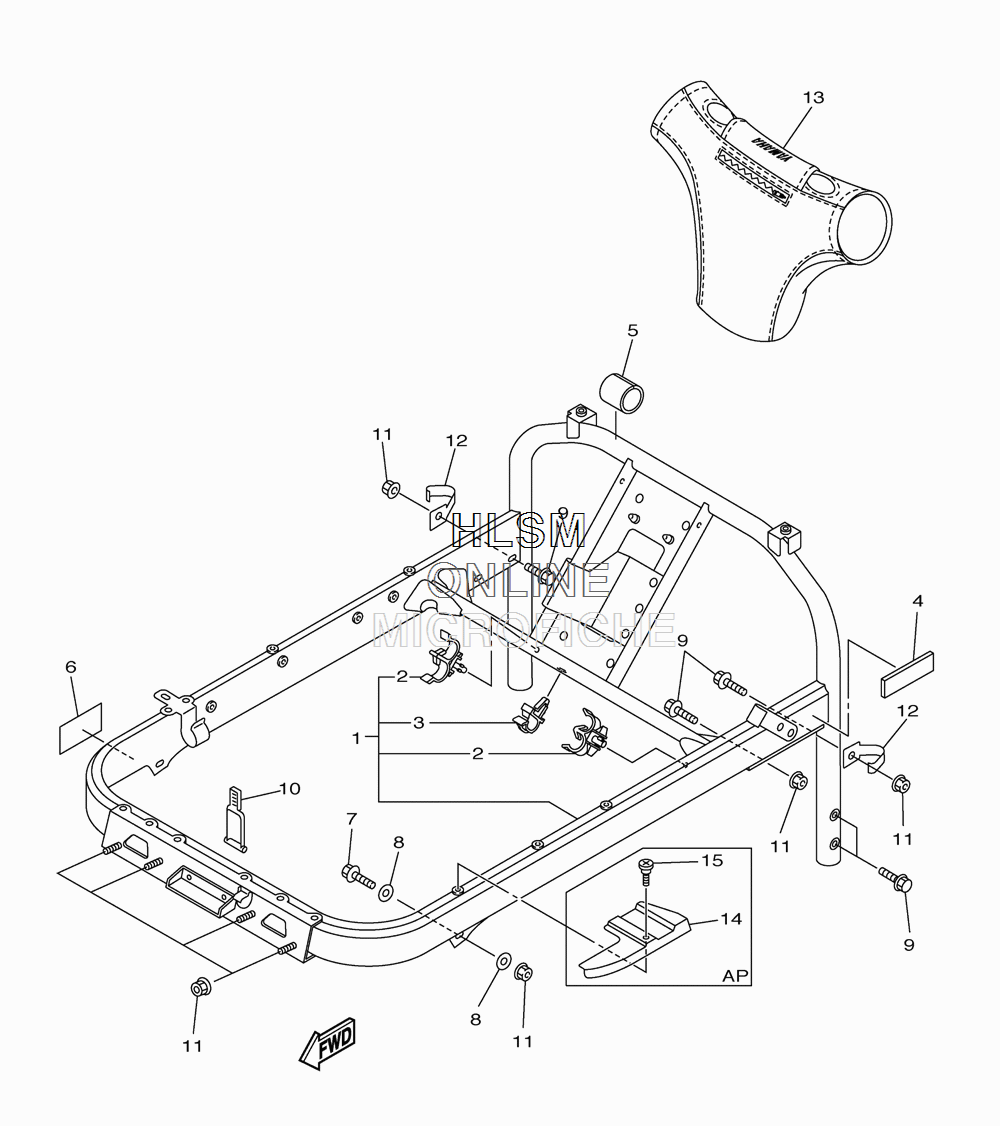

HANDLEBAR PAD W/ STEERING GATE для Yamaha RS VIKING PRO - 2013 года выпуска`
-
№АртикулНазвание
-
18GS-23870-01-00 STEERING GATE COMP.STEERING GATE COMP.
-
290464-11007-00 ...CLAMP...CLAMP
-
390464-14M55-00 ...CLAMP...CLAMP
-
48FN-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
58FN-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
68FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
790105-081A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
890201-08326-00 WASHER, PLATEWASHER, PLATE
-
995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
108FA-2389E-00-00 LATCHLATCH
-
1195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1290462-10022-00 CLAMPCLAMP
-
138FN-23815-00-00 PAD, STEERINGPAD, STEERING
-
148ES-14146-00-00 PLATEPLATE
-
1590150-06015-00 SCREW, ROUND HEADSCREW, ROUND HEAD
