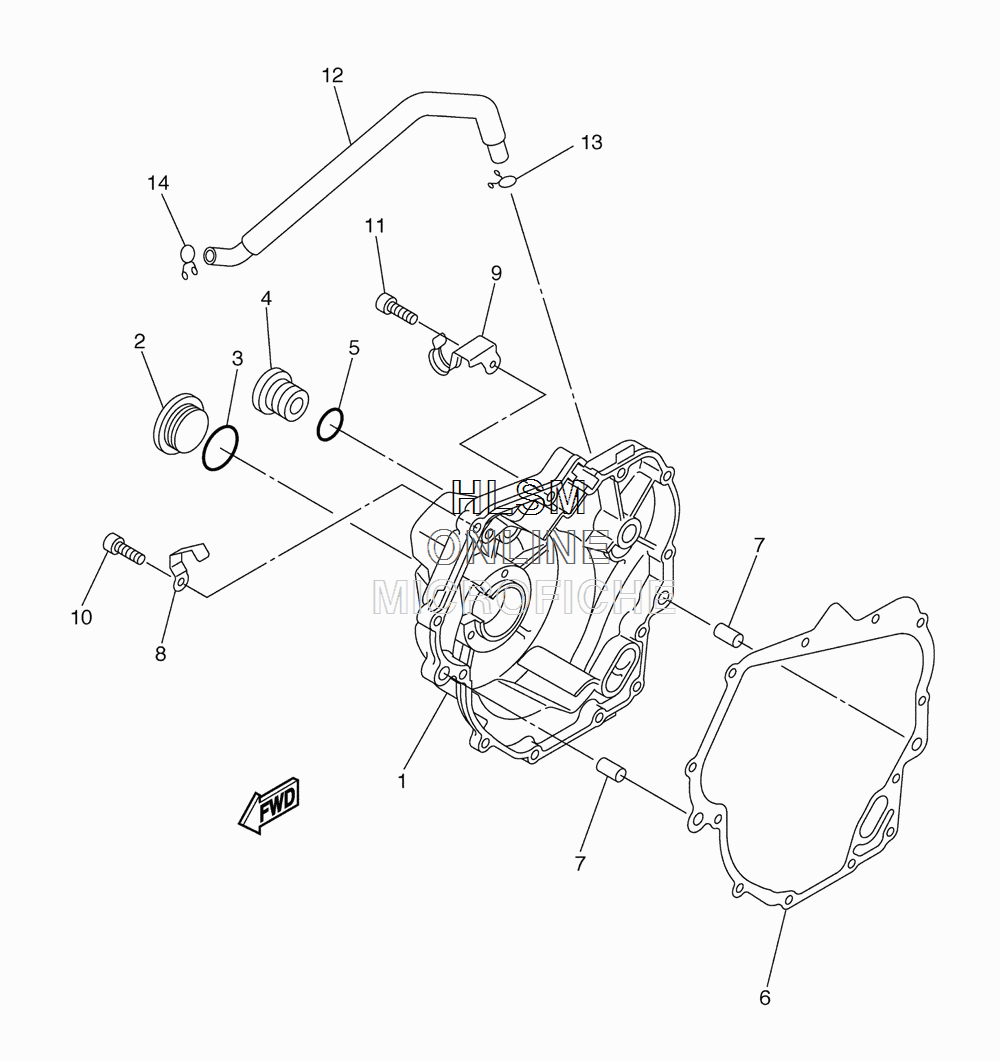

CRANKCASE COVER ASSY для Yamaha RS VIKING PRO - 2013 года выпуска`
-
№АртикулНазвание
-
18ES-15421-01-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
290340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-32172-00 O-RINGO-RING
-
490340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-14369-00 O-RINGO-RING
-
68ES-15461-01-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
799530-08012-00 PIN, DOWELPIN, DOWEL
-
890462-08225-00 CLAMPCLAMP
-
990465-10038-00 CLAMPCLAMP
-
1090109-06015-00 BOLTBOLT
-
1190110-06234-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
128ES-1531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
1390467-100A1-00 CLIPCLIP
-
1490467-11019-00 CLIPCLIP
