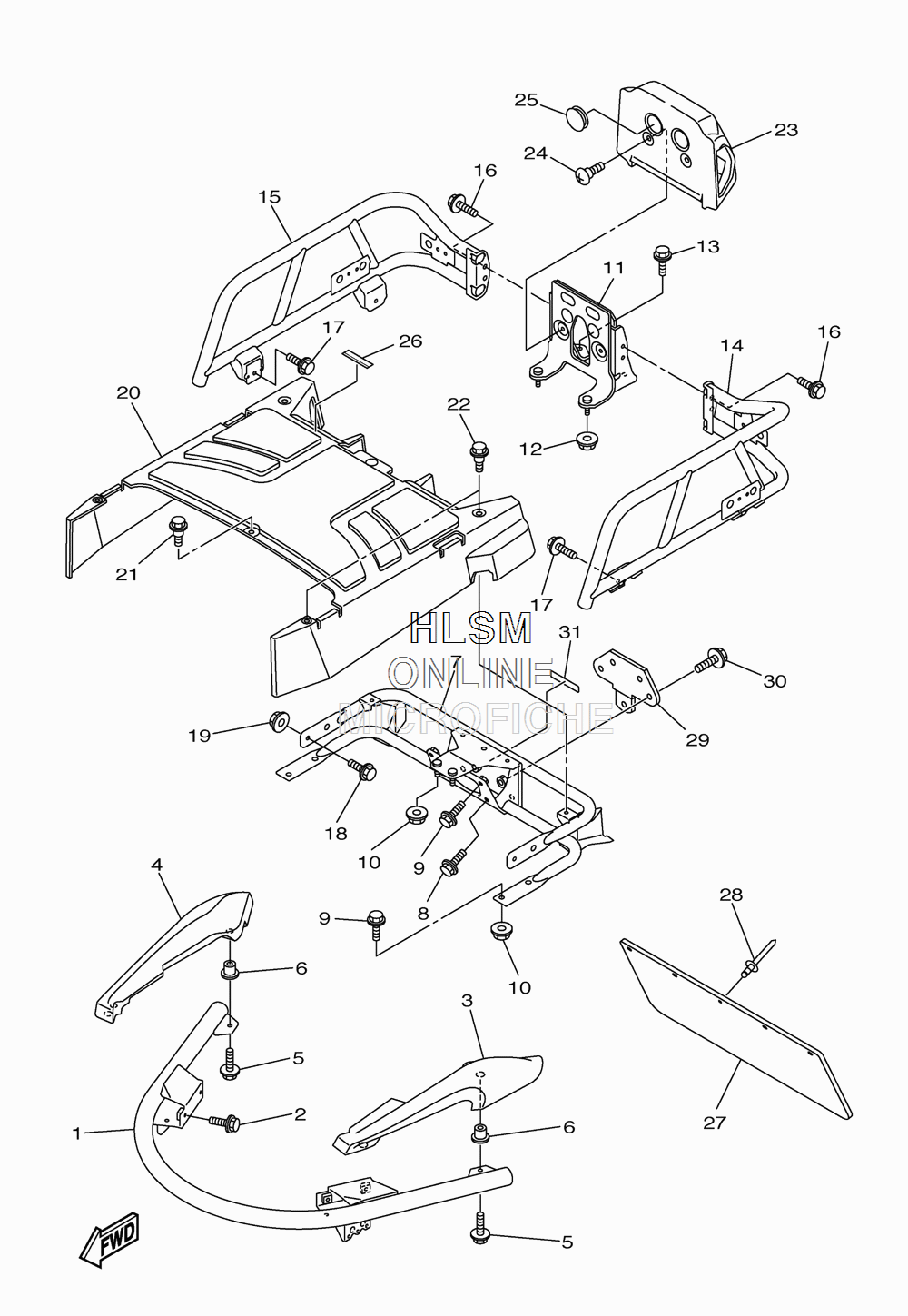

BUMPER - FRONT AND REAR для Yamaha RS VIKING PRO - 2013 года выпуска`
-
№АртикулНазвание
-
18FN-77511-20-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
38FN-77523-00-00 END, BUMPEREND, BUMPER
-
48FN-77524-00-00 END, BUMPEREND, BUMPER
-
595822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
690179-06520-00 NUTNUT
-
78FN-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
895822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
995822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1095702-08500-00 NUT, FLANGENUT, FLANGE
-
118FN-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
1295702-08500-00 NUT, FLANGENUT, FLANGE
-
1395812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
148JE-77543-00-00 BUMPER, REAR 3BUMPER, REAR 3
-
158JE-77544-00-00 BUMPER, REAR 4BUMPER, REAR 4
-
1695827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1795822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1895802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1995702-06500-00 NUT, FLANGENUT, FLANGE
-
208FN-77551-00-00 PROTECTOR 1PROTECTOR 1
-
2190109-06272-00 BOLTBOLT
-
2290109-063F1-00 BOLTBOLT
-
238FN-77552-00-00 PROTECTOR 2PROTECTOR 2
-
2490154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2590338-28242-00 PLUGPLUG
-
268FM-24897-01-00 EMBLEMEMBLEM
-
2783R-77595-00-00 FLAPFLAP
-
2890267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
2984R-77592-00-00 BRACKET, HITCH 2BRACKET, HITCH 2
-
3095827-08025-00 BOLT, FLANGEBOLT, FLANGE
-
318GS-2817S-E0-00 LABEL, PULLING LOAD LIMITLABEL, PULLING LOAD LIMIT
