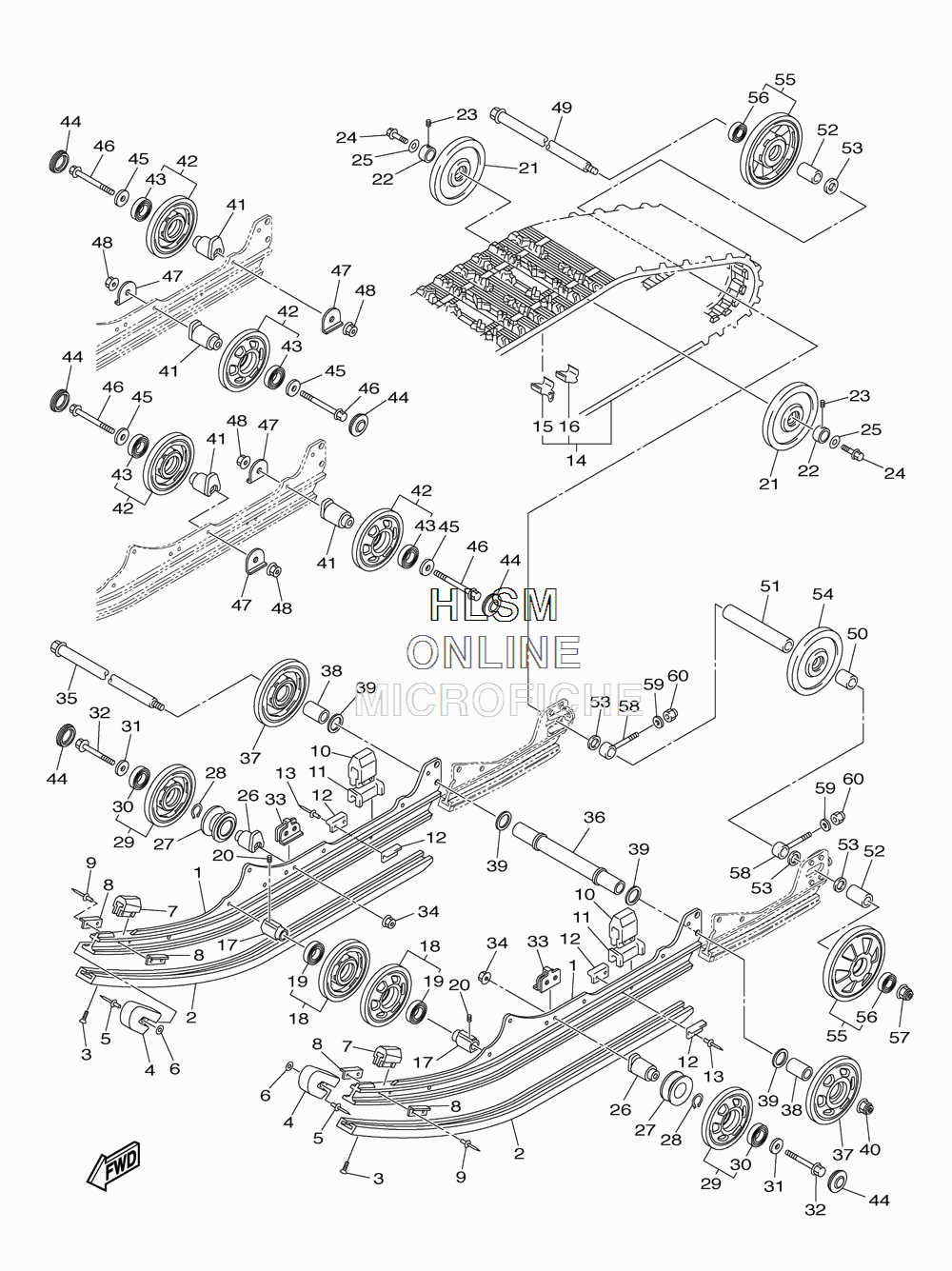

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VENTURE TF - 2013 года выпуска`
-
№АртикулНазвание
-
18FM-4741A-01-00 FRAME, SLIDINGFRAME, SLIDING
-
28FM-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
390151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
48ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
590267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
690201-047R8-00 WASHER, PLATEWASHER, PLATE
-
78ES-47456-00-00 DAMPER 1DAMPER 1
-
88K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
990267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
108CM-47457-00-00 DAMPER 2DAMPER 2
-
118CM-47341-00-00 SPACERSPACER
-
128AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1390267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
148FM-47110-20-00 TRACK ASSYTRACK ASSY
-
158HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
168HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
178ES-47319-01-00 COLLARCOLLAR
-
188HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1993306-00507-00 ...BEARING...BEARING
-
2090113-06039-00 BOLT, SETBOLT, SET
-
218CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
228ES-47365-00-00 COLLAR 1COLLAR 1
-
2390113-06039-00 BOLT, SETBOLT, SET
-
2490109-10030-00 BOLTBOLT
-
2590201-10039-00 WASHER, PLATEWASHER, PLATE
-
268ES-47419-10-00 BRACKET 7BRACKET 7
-
278ET-47446-00-00 HOOK 1HOOK 1
-
2899009-35400-00 CIRCLIPCIRCLIP
-
298HF-47310-10-00 SUSPENSION WHEEL ASSY (BLACK)SUSPENSION WHEEL ASSY (BLACK)
-
3093306-00507-00 ...BEARING...BEARING
-
3190201-10038-00 WASHER, PLATEWASHER, PLATE
-
3295812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
338HP-47384-00-00 WASHERWASHER
-
3495602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
358L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
368FM-47469-00-00 COLLAR 1COLLAR 1
-
378HP-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3890387-20019-00 COLLARCOLLAR
-
3990201-20022-00 WASHER, PLATEWASHER, PLATE
-
4095602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
418ES-47419-00-00 BRACKET 7BRACKET 7
-
428HF-47310-10-00 SUSPENSION WHEEL ASSY (BLACK)SUSPENSION WHEEL ASSY (BLACK)
-
4393306-00507-00 ...BEARING...BEARING
-
448HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
4590201-10038-00 WASHER, PLATEWASHER, PLATE
-
4695812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
4790214-10003-00 WASHER, CLAWWASHER, CLAW
-
4895602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
498L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
5090387-20015-00 COLLARCOLLAR
-
5190387-20016-00 COLLARCOLLAR
-
5290387-20019-00 COLLARCOLLAR
-
5390201-20022-00 WASHER, PLATEWASHER, PLATE
-
548CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
558HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5693306-00444-00 ...BEARING...BEARING
-
5795602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
588DM-47479-00-00 COLLAR 3COLLAR 3
-
5992902-10600-00 WASHER, PLATEWASHER, PLATE
-
6095702-10300-00 NUT, NYLONNUT, NYLON
