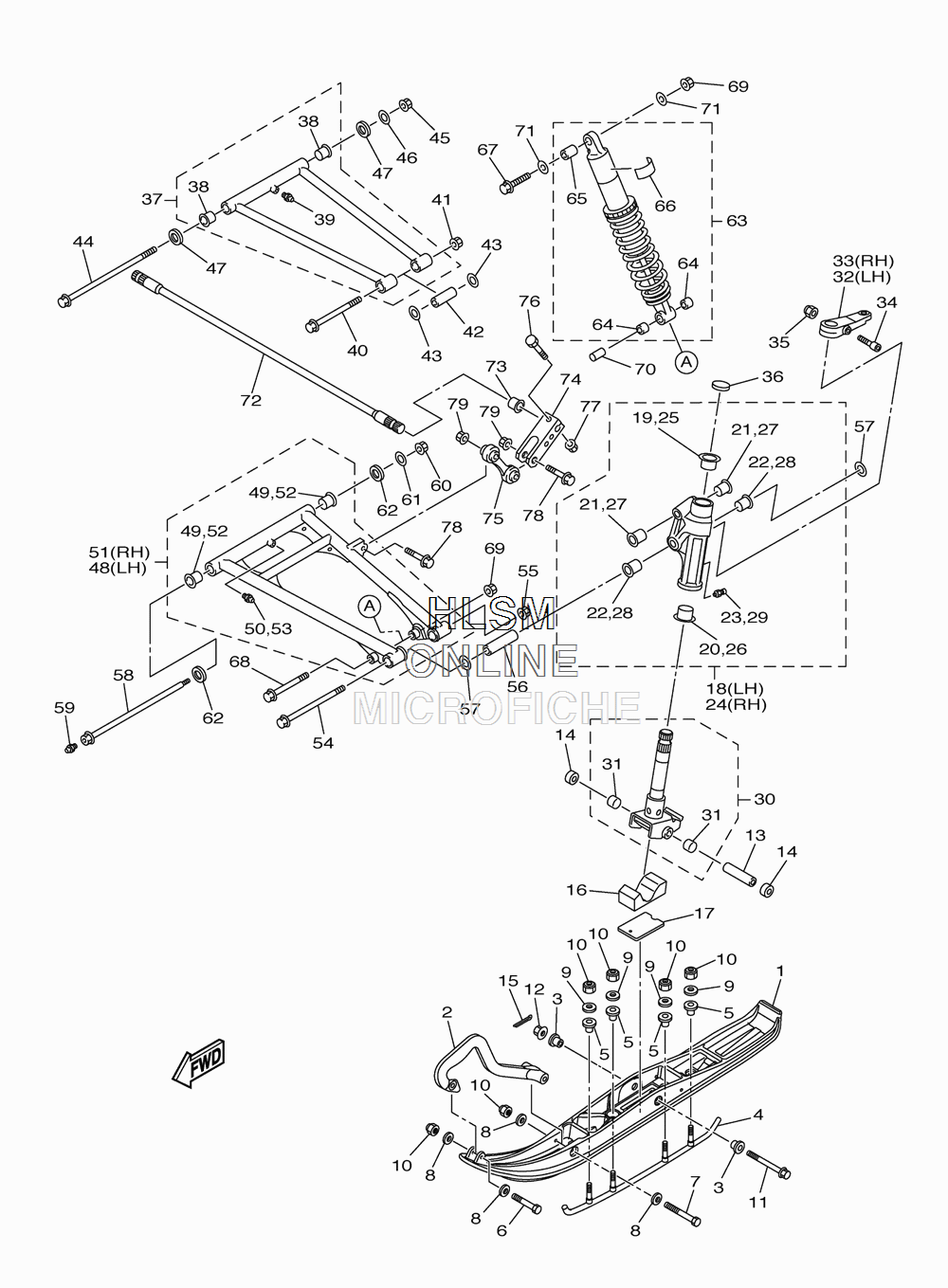

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RS VENTURE TF - 2013 года выпуска`
-
№АртикулНазвание
-
18FN-F3711-00-00 SKI 1SKI 1
-
28DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EN-F3731-01-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68HG-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
78HG-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
88HG-F3737-00-00 WASHER 1WASHER 1
-
98HG-F3738-00-00 WASHER 2WASHER 2
-
108HG-F3778-00-00 NUTNUT
-
1190105-10410-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1490387-10029-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168HG-23743-00-00 STOPPER 1STOPPER 1
-
178FM-23744-00-00 STOPPER 2STOPPER 2
-
188HG-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1990381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-32001-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2290381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
248HG-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2590381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2690381-32001-00 ...BUSH, SOLID...BUSH, SOLID
-
2790381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2890381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
308HG-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
3190384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
328FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
338FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
3490110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
363YK-22472-40-00 CAP, CASECAP, CASE
-
378HG-23540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3890381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4090105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
4195602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
4290387-10099-00 COLLARCOLLAR
-
4390201-10052-00 WASHER, PLATEWASHER, PLATE
-
4490109-10056-00 BOLTBOLT
-
4595602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
4690201-10052-00 WASHER, PLATEWASHER, PLATE
-
4790209-15N50-00 WASHERWASHER
-
488HG-23570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4990381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5093700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
518HG-23580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
5290381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
5490105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
5595602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5690387-12054-00 COLLARCOLLAR
-
5790201-120T5-00 WASHER, PLATEWASHER, PLATE
-
5890401-10045-00 BOLT, UNIONBOLT, UNION
-
5993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
6095602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
6190201-10052-00 WASHER, PLATEWASHER, PLATE
-
6290209-15N50-00 WASHERWASHER
-
638HG-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
6490384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
658FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
664AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
6790105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
6890105-10288-00 BOLT, FLANGEBOLT, FLANGE
-
6995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
7090387-10N59-00 COLLARCOLLAR
-
7190201-10052-00 WASHER, PLATEWASHER, PLATE
-
728FG-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
738FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
748FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
758ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
7690101-06046-00 BOLTBOLT
-
7795604-06200-00 NUT, U FLANGENUT, U FLANGE
-
7895814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7995604-08200-00 NUT, U FLANGENUT, U FLANGE
