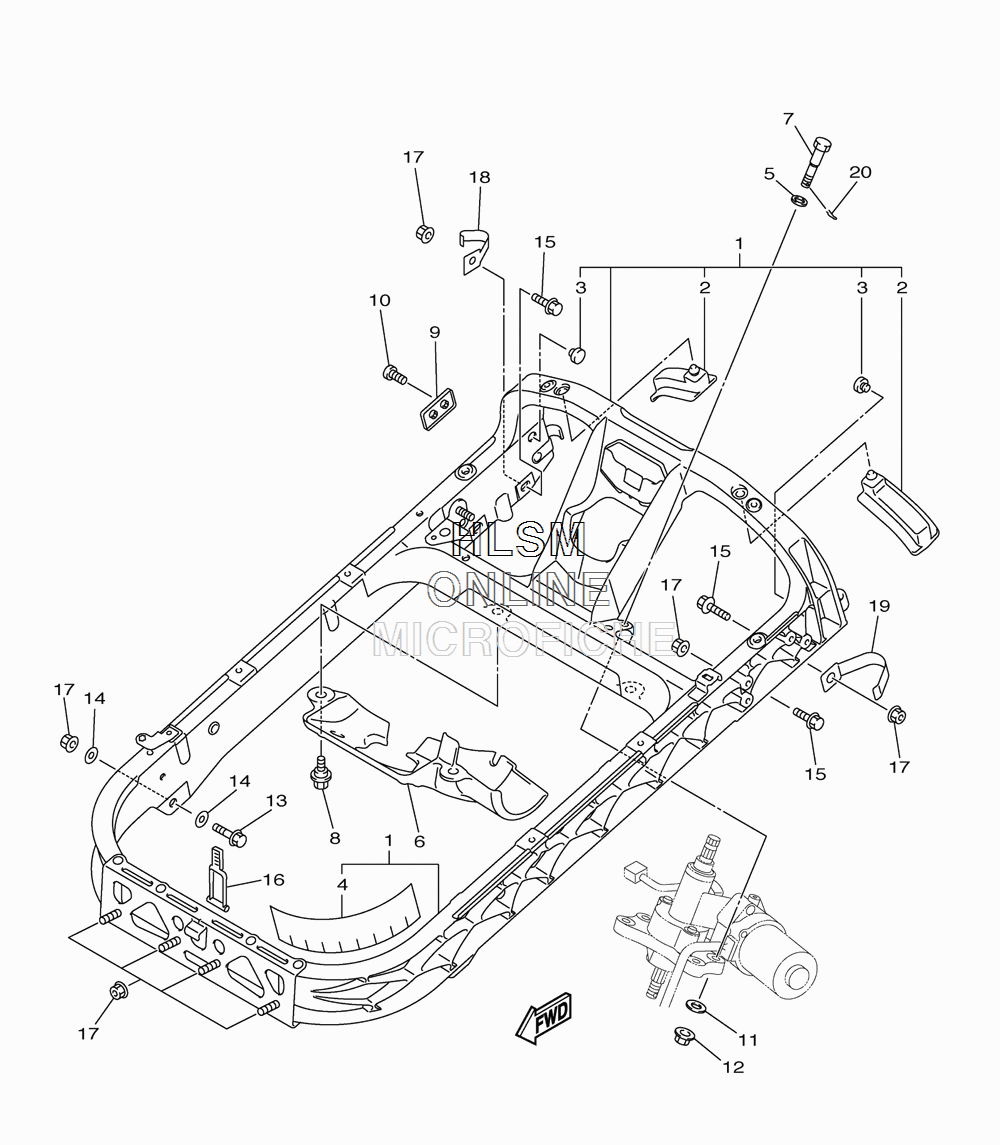

HANDLEBAR PAD W/ STEERING GATE для Yamaha RS VENTURE TF - 2013 года выпуска`
-
№АртикулНазвание
-
18HX-23870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
28HG-23376-00-00 ...STOPPER...STOPPER
-
38FA-24768-00-00 ...STOPPER...STOPPER
-
48HV-23858-00-00 ...SPACER...SPACER
-
590201-10032-00 WASHER, PLATEWASHER, PLATE
-
68HG-238B6-01-00 COVER, MOTORCOVER, MOTOR
-
790102-08006-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
890109-063F1-00 BOLTBOLT
-
9JT1-83614-00-00 BRACKETBRACKET
-
1098902-06016-00 SCREW, BINDSCREW, BIND
-
1190201-087H6-00 WASHER, PLATEWASHER, PLATE
-
1295702-08500-00 NUT, FLANGENUT, FLANGE
-
1390105-08236-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-08326-00 WASHER, PLATEWASHER, PLATE
-
1590105-08239-00 BOLT, FLANGEBOLT, FLANGE
-
168FA-2389E-00-00 LATCHLATCH
-
1795602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890462-10022-00 CLAMPCLAMP
-
1990462-10035-00 CLAMPCLAMP
-
2090468-12006-00 CLIPCLIP
