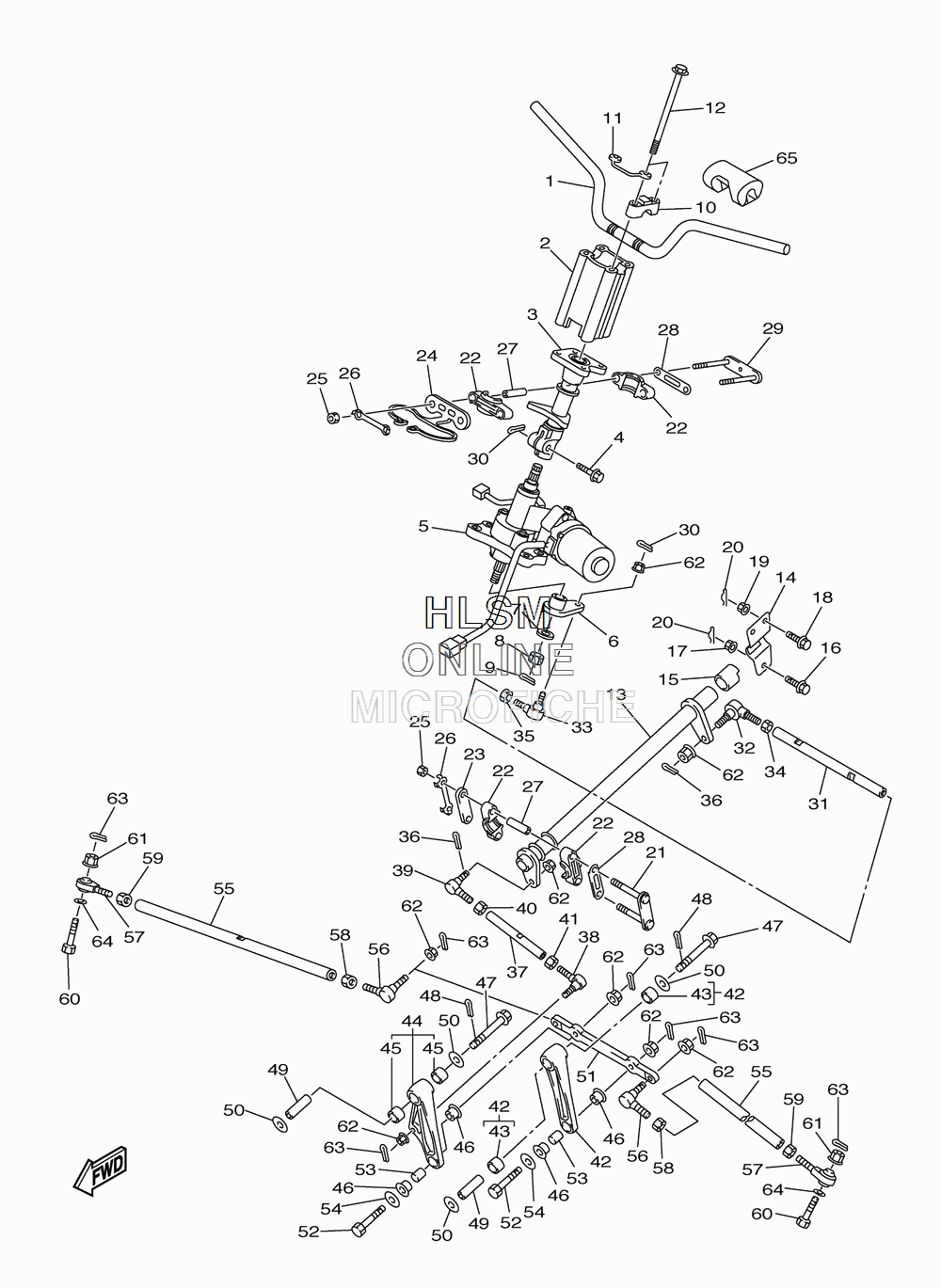

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha RS VENTURE GT - 2013 года выпуска
-
№АртикулНазвание
-
18HX-26111-00-00 HANDLEBARHANDLEBAR
-
28HX-2381B-00-00 JOINTJOINT
-
38HG-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
490119-08143-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
53B4-238B0-30-00 POWER STEERING ACTUATOR ASSYPOWER STEERING ACTUATOR ASSY
-
68HG-23816-00-00 ARM, PITMANARM, PITMAN
-
790201-16021-00 WASHER, PLATEWASHER, PLATE
-
895612-16100-00 NUT, UNUT, U
-
991401-20030-00 PIN, COTTERPIN, COTTER
-
108K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
118FP-23857-00-00 HOLDERHOLDER
-
1290105-08072-00 BOLT, FLANGEBOLT, FLANGE
-
138FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
148FA-23818-02-00 COVER, STEERINGCOVER, STEERING
-
158FA-23873-01-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
1690105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1890105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
1995602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090468-12006-00 CLIPCLIP
-
218FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
228FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
238FA-23867-00-00 HOLDER 2HOLDER 2
-
248HV-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2595312-08600-00 NUTNUT
-
261UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
278HF-2412G-00-00 COLLARCOLLAR
-
288FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
298HG-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
3091401-20020-00 PIN, COTTERPIN, COTTER
-
318FA-23828-00-00 ROD, STEERINGROD, STEERING
-
328CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
338CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3495307-10700-00 NUTNUT
-
3590170-10186-00 NUT, HEXAGON (LEFT HAND THREAD)NUT, HEXAGON (LEFT HAND THREAD)
-
3691401-20020-00 PIN, COTTERPIN, COTTER
-
378HG-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
388CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
398CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
4095307-10700-00 NUTNUT
-
4190170-10186-00 NUT, HEXAGON (LEFT HAND THREAD)NUT, HEXAGON (LEFT HAND THREAD)
-
428FG-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
4390383-17001-00 ...BUSH, FORMED...BUSH, FORMED
-
448FA-2389M-00-00 ARM PIVOT ASSY., 2ARM PIVOT ASSY., 2
-
4593317-41785-00 ...BEARING...BEARING
-
4690381-14001-00 BUSH, SOLIDBUSH, SOLID
-
4790105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
488FA-2384N-00-00 CLIP, RINGCLIP, RING
-
498FA-2412G-00-00 COLLARCOLLAR
-
5090201-121U3-00 WASHER, PLATEWASHER, PLATE
-
518FU-23826-00-00 ARM, IDLERARM, IDLER
-
5290102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
5390387-10008-00 COLLARCOLLAR
-
5490201-10742-00 WASHER, PLATEWASHER, PLATE
-
558HG-23831-00-00 ROD, TIEROD, TIE
-
568CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
578FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
5895307-10700-00 NUTNUT
-
5990170-10186-00 NUT, HEXAGON (LEFT HAND THREAD)NUT, HEXAGON (LEFT HAND THREAD)
-
6090102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
6195702-10300-00 NUT, NYLONNUT, NYLON
-
6295702-10500-00 NUT, FLANGENUT, FLANGE
-
6391401-20020-00 PIN, COTTERPIN, COTTER
-
6490201-08759-00 WASHER, PLATEWASHER, PLATE
-
658FR-23815-00-00 PAD, STEERINGPAD, STEERING
