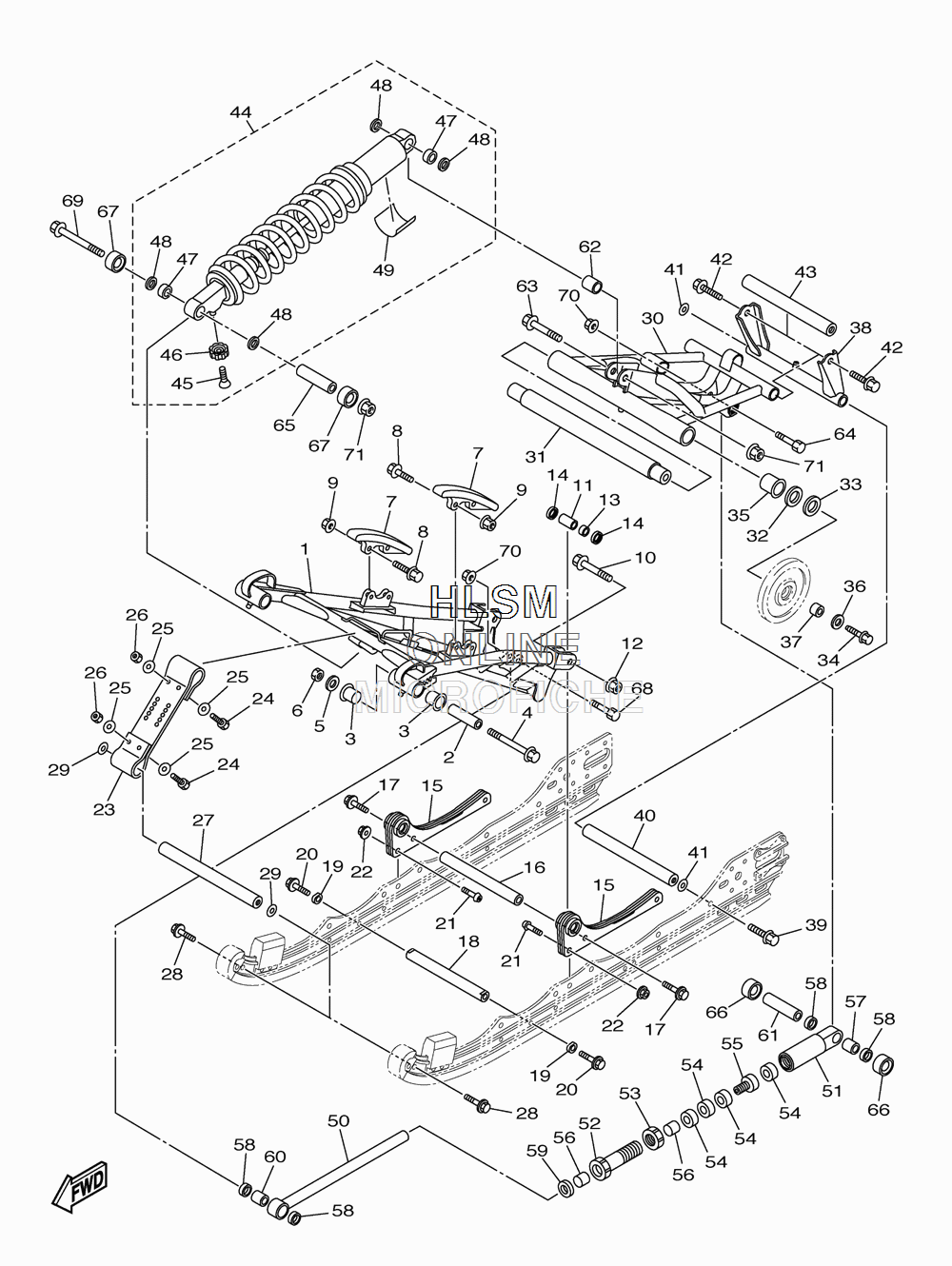

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha RS VECTOR - 2013 года выпуска`
-
№АртикулНазвание
-
18JA-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-10038-00 WASHER, PLATEWASHER, PLATE
-
690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090105-10387-00 BOLT, FLANGEBOLT, FLANGE
-
1190387-10095-00 COLLARCOLLAR
-
1290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1393315-31750-00 BEARINGBEARING
-
1493109-17071-00 OIL SEALOIL SEAL
-
158JA-47415-00-00 BRACKET 1BRACKET 1
-
168JA-47486-00-00 SHAFT 4SHAFT 4
-
1790105-10385-00 BOLT, FLANGEBOLT, FLANGE
-
188GL-47486-00-00 SHAFT 4SHAFT 4
-
198GL-47341-00-00 SPACERSPACER
-
2090105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2190111-10045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2295602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
238GM-47495-00-00 STOPPER 1STOPPER 1
-
2497002-06025-00 BOLTBOLT
-
2590201-06081-00 WASHER, PLATEWASHER, PLATE
-
2695702-06300-00 NUT, NYLONNUT, NYLON
-
278FU-47485-00-00 SHAFT 3SHAFT 3
-
2890105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2990201-10126-00 WASHER, PLATEWASHER, PLATE
-
308JA-47332-01-00 ARM, PIVOT 2ARM, PIVOT 2
-
318FU-47475-00-00 SHAFT 2SHAFT 2
-
3290201-251G8-00 WASHER, PLATEWASHER, PLATE
-
3390201-250T6-00 WASHER, PLATEWASHER, PLATE
-
3490109-10030-00 BOLTBOLT
-
3590381-28108-00 BUSH, SOLIDBUSH, SOLID
-
3690201-10039-00 WASHER, PLATEWASHER, PLATE
-
3790387-25005-00 COLLARCOLLAR
-
388FU-47417-11-00 BRACKET 3BRACKET 3
-
3990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
408FU-47485-00-00 SHAFT 3SHAFT 3
-
4190201-10136-00 WASHER, PLATEWASHER, PLATE
-
4290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
438FU-47486-00-00 SHAFT 4SHAFT 4
-
448HV-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
4590142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
465JW-2319W-00-00 ...KNOB (TEN)...KNOB (TEN)
-
4793315-31758-00 ...BEARING...BEARING
-
4893109-17071-00 ...OIL SEAL...OIL SEAL
-
494AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
508JA-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
518JA-4745C-00-00 ROD, CONTROL 3ROD, CONTROL 3
-
528JA-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
538JA-47368-00-00 NUTNUT
-
548GM-47384-10-00 WASHERWASHER
-
558FU-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5690384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
5793315-31841-00 BEARING, CYL.#15BEARING, CYL.#15
-
5893109-18001-00 OIL SEALOIL SEAL
-
59C68-43822-00-00 SEAL, TRIM DUSTSEAL, TRIM DUST
-
6090387-12051-00 COLLARCOLLAR
-
6190387-12052-00 COLLARCOLLAR
-
6290387-1012A-00 COLLARCOLLAR
-
6395812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
6490101-12043-00 BOLTBOLT
-
6590387-10034-00 COLLARCOLLAR
-
668JA-47341-00-00 SPACERSPACER
-
678FU-47341-00-00 SPACERSPACER
-
6890101-12042-00 BOLTBOLT
-
6995812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
7090185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
7195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
