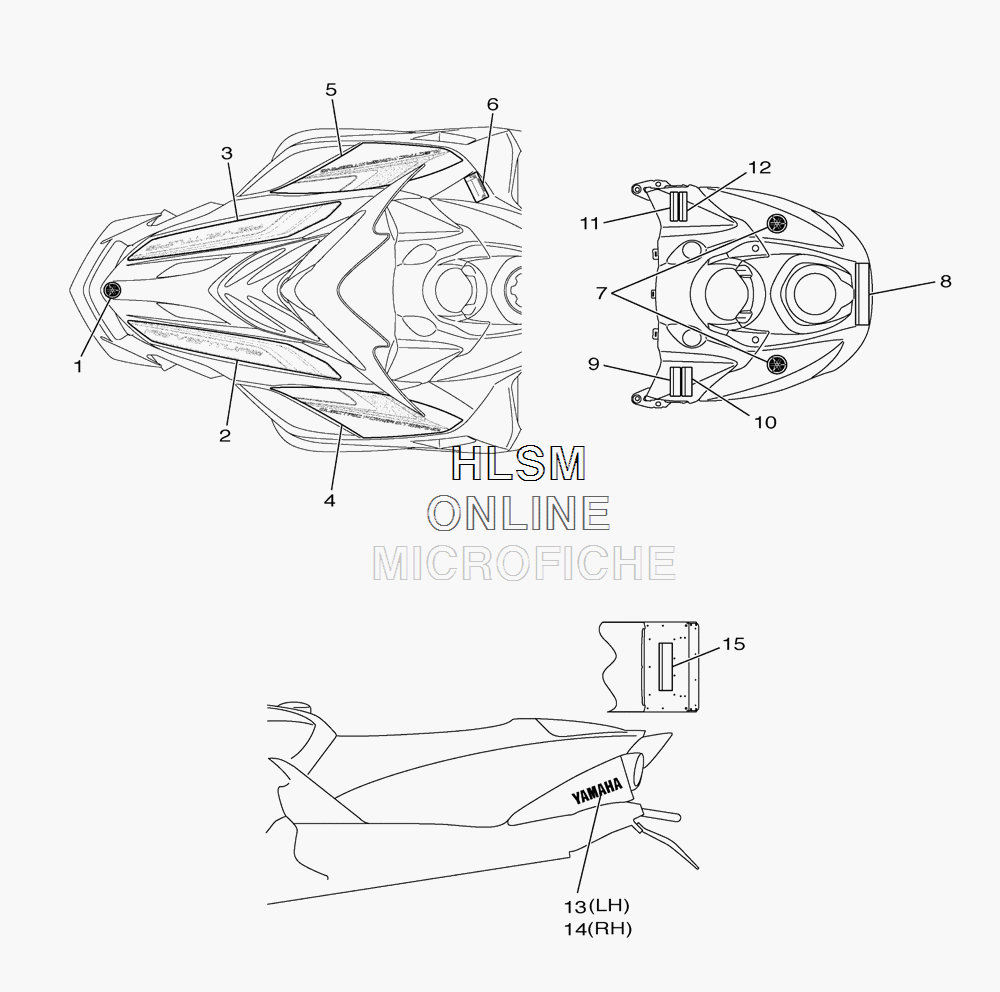

DECALS для Yamaha RS VECTOR LTX - 2013 года выпуска`
-
№АртикулНазвание
-
18AC-2414B-01-00 EMBLEMEMBLEM
-
28HV-7711L-30-00 GRAPHIC, SHROUD (FOR YB - BLACK METALLIC)GRAPHIC, SHROUD (FOR YB - BLACK METALLIC)
-
28HV-7711L-20-00 GRAPHIC, SHROUD (FOR DPBML - PURPLISH BLUE)GRAPHIC, SHROUD (FOR DPBML - PURPLISH BLUE)
-
38HV-7711M-30-00 GRAPHIC, SHROUD (FOR YB - BLACK METALLIC)GRAPHIC, SHROUD (FOR YB - BLACK METALLIC)
-
38HV-7711M-20-00 GRAPHIC, SHROUD (FOR DPBML - PURPLISH BLUE)GRAPHIC, SHROUD (FOR DPBML - PURPLISH BLUE)
-
48HV-7711A-30-00 GRAPHIC 1 (FOR YB - BLACK METALLIC)GRAPHIC 1 (FOR YB - BLACK METALLIC)
-
48HV-7711A-20-00 GRAPHIC 1 (FOR DPBML - PURPLISH BLUE)GRAPHIC 1 (FOR DPBML - PURPLISH BLUE)
-
58HV-7711B-30-00 GRAPHIC 2 (FOR YB - BLACK METALLIC)GRAPHIC 2 (FOR YB - BLACK METALLIC)
-
58HV-7711B-20-00 GRAPHIC 2 (FOR DPBML - PURPLISH BLUE)GRAPHIC 2 (FOR DPBML - PURPLISH BLUE)
-
68FR-77763-E0-00 LABEL, WARNING 3LABEL, WARNING 3
-
75PW-2413B-00-00 EMBLEMEMBLEM
-
88FR-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
98ET-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
108ET-2815K-10-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
118GC-77762-A0-00 LABEL, WARNING 2LABEL, WARNING 2
-
128GC-77762-B0-00 LABEL, WARNING 2LABEL, WARNING 2
-
1399246-00140-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
1499246-00140-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
158HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- • DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
