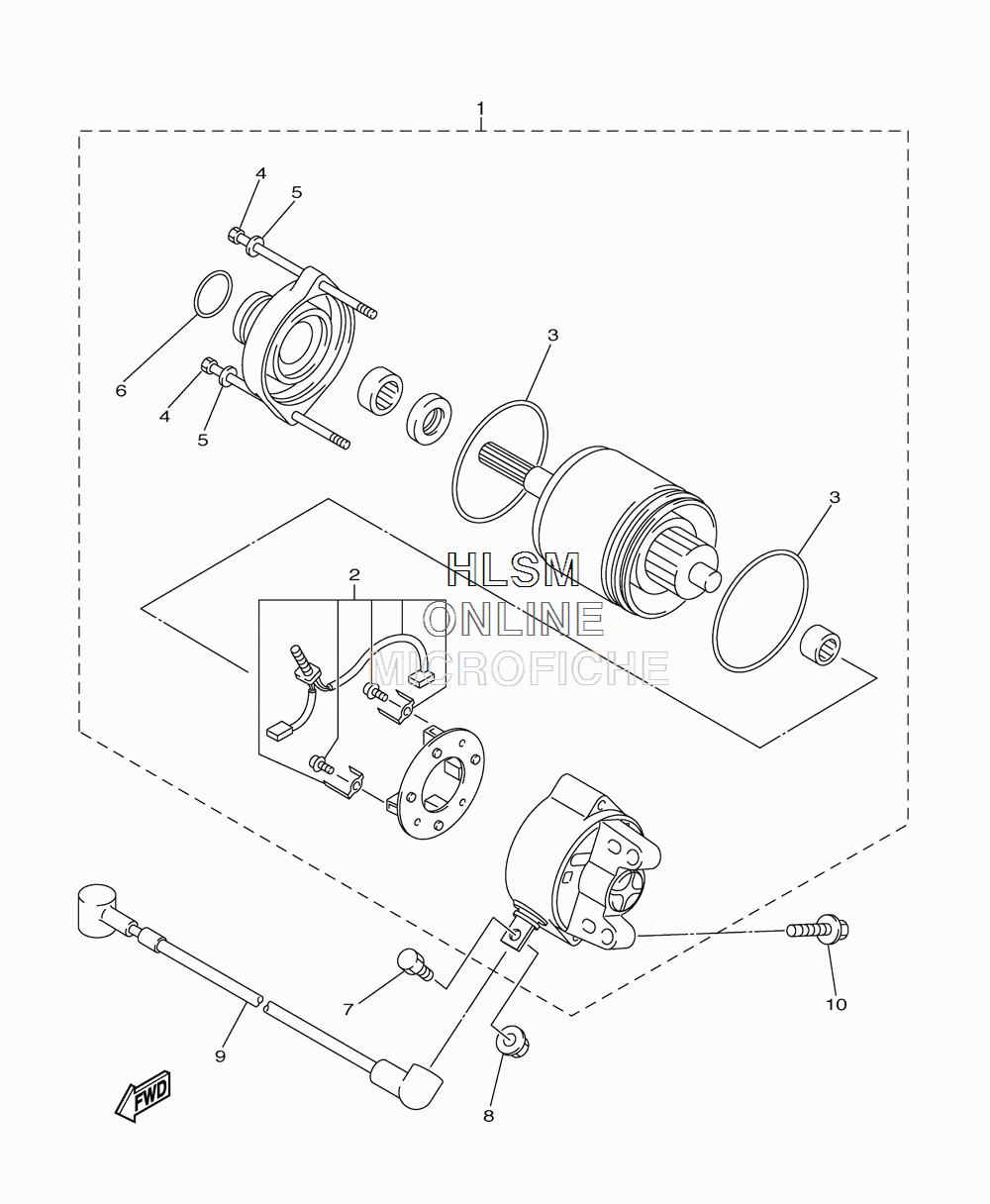

STARTER - ELECTRICAL STARTER ASSY для Yamaha PHAZER MTX - 2013 года выпуска`
-
№АртикулНазвание
-
18GC-81890-01-00 MOTOR ASSYMOTOR ASSY
-
28GC-81801-00-00 ...BRUSH SET...BRUSH SET
-
393210-55669-00 ...O-RING...O-RING
-
48GC-81846-00-00 ...SCREW...SCREW
-
58GC-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
693210-25711-00 ...O-RING...O-RING
-
75PW-81828-00-00 SCREW 2SCREW 2
-
895380-05700-00 NUTNUT
-
98GC-8183G-00-00 CORD COMP.CORD COMP.
-
1095812-06025-00 BOLT, FLANGEBOLT, FLANGE
