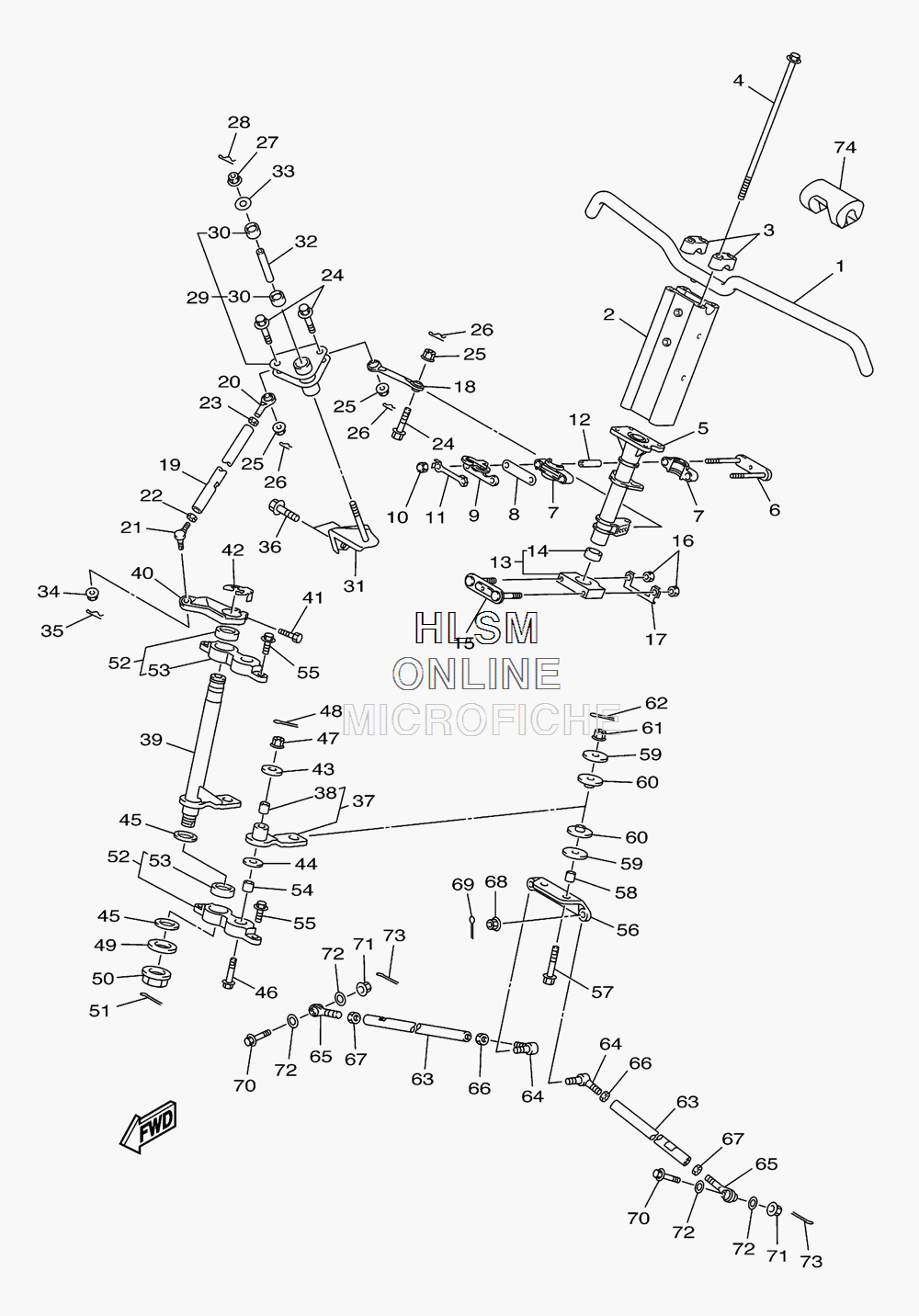

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha PHAZER GT - 2013 года выпуска
-
№АртикулНазвание
-
18GN-26111-10-00 HANDLEBARHANDLEBAR
-
28GC-2381B-00-00 JOINTJOINT
-
38K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
48GC-23436-00-00 BOLTBOLT
-
58GC-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
68GC-23867-00-00 HOLDER 2HOLDER 2
-
78FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
88FA-23867-00-00 HOLDER 2HOLDER 2
-
98GC-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1095302-08800-00 NUT, CROWNNUT, CROWN
-
111UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1290387-09006-00 COLLARCOLLAR
-
138GC-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
1493315-42536-00 ...BEARING, CYL.#15...BEARING, CYL.#15
-
158GJ-23857-00-00 HOLDERHOLDER
-
1695312-08600-00 NUTNUT
-
178GJ-23894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
188GC-23828-00-00 ROD, STEERINGROD, STEERING
-
198GC-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
208GC-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
218CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2295302-10700-00 NUTNUT
-
2390170-10186-00 NUT, HEXAGON (LEFT THREAD)NUT, HEXAGON (LEFT THREAD)
-
2490105-08321-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2595702-08500-00 NUT, FLANGENUT, FLANGE
-
2690468-16001-00 CLIPCLIP
-
2795702-10500-00 NUT, FLANGENUT, FLANGE
-
2890468-18189-00 CLIPCLIP
-
298GC-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
3093317-41767-00 BEARINGBEARING
-
318GK-23881-00-00 BRACKET 1BRACKET 1
-
328GC-23846-00-00 SHAFT, PITMANSHAFT, PITMAN
-
3390201-121U3-00 WASHER, PLATEWASHER, PLATE
-
3495702-10500-00 NUT, FLANGENUT, FLANGE
-
3591402-20012-00 PIN, COTTERPIN, COTTER
-
3695812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
378GC-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
388GC-23526-00-00 ...BUSH...BUSH
-
398GC-2389M-01-00 PIVOT ARM ASSY 2PIVOT ARM ASSY 2
-
408GC-2381A-00-00 ARM, INSIDEARM, INSIDE
-
4191312-08025-00 BOLTBOLT
-
428GC-23183-00-00 CIRCLIPCIRCLIP
-
4390201-124G7-00 WASHER, PLATEWASHER, PLATE
-
4490201-25291-00 WASHER, PLATEWASHER, PLATE
-
4590201-256E4-00 WASHER, PLATE (T=1.5)WASHER, PLATE (T=1.5)
-
468GC-23346-00-00 BOLT 1BOLT 1
-
4795702-12500-00 NUT, FLANGENUT, FLANGE
-
4891402-25020-00 PIN, COTTERPIN, COTTER
-
4990201-220T0-00 WASHER, PLATEWASHER, PLATE
-
5090179-22412-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
5191402-20035-00 PIN, COTTERPIN, COTTER
-
528GC-2389H-00-00 BRACKET, PIVOTBRACKET, PIVOT
-
5393315-42536-00 ...BEARING, CYL.#15...BEARING, CYL.#15
-
548GC-23113-00-00 COLLARCOLLAR
-
5595822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
568GC-23826-00-00 ARM, IDLERARM, IDLER
-
5790105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5890387-10070-00 COLLARCOLLAR
-
5990201-100S2-00 WASHER, PLATEWASHER, PLATE
-
608GC-23362-10-00 BUSH 1BUSH 1
-
6190185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6291402-20012-00 PIN, COTTERPIN, COTTER
-
638GC-23831-00-00 ROD, TIEROD, TIE
-
648CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
658GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
6695302-10700-00 NUTNUT
-
6790170-10186-00 NUT, HEXAGON (LEFT THREAD)NUT, HEXAGON (LEFT THREAD)
-
6895702-10500-00 NUT, FLANGENUT, FLANGE
-
6991402-20012-00 PIN, COTTERPIN, COTTER
-
708GC-23493-00-00 BOLTBOLT
-
7195702-08500-00 NUT, FLANGENUT, FLANGE
-
7290201-06018-00 WASHER, PLATEWASHER, PLATE
-
7391402-20012-00 PIN, COTTERPIN, COTTER
-
748FR-23815-00-00 PAD, STEERINGPAD, STEERING
