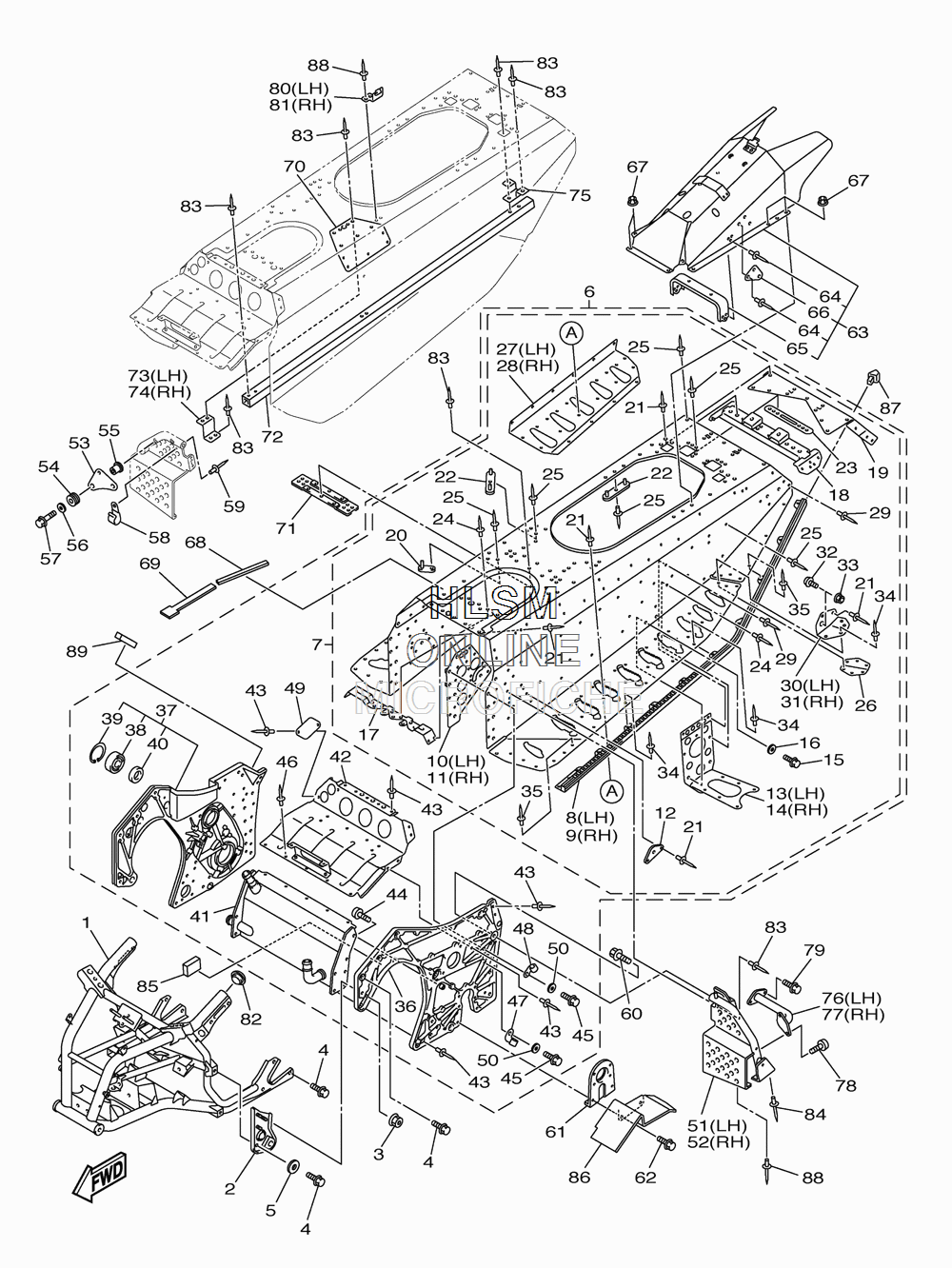

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO - 2013 года выпуска`
-
№АртикулНазвание
-
18GL-21940-03-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GL-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
390185-08054-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590201-086A3-00 WASHER, PLATEWASHER, PLATE
-
68HK-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
78HK-21950-09-00 ...REAR FRAME COMP....REAR FRAME COMP.
-
88HK-21926-00-00 ......REINFORCEMENT, FOOTREST 1......REINFORCEMENT, FOOTREST 1
-
98HK-21936-00-00 ......REINFORCEMENT, FOOTREST 2......REINFORCEMENT, FOOTREST 2
-
108GL-21943-00-00 ......BRACKET, MAIN TRACK 1......BRACKET, MAIN TRACK 1
-
118GL-21953-00-00 ......BRACKET, MAIN TRACK 2......BRACKET, MAIN TRACK 2
-
128FU-21919-00-00 ......BRACKET, MAIN TRACK 3......BRACKET, MAIN TRACK 3
-
138HK-21944-00-00 ......BRACKET, RR. TRACK SUSP......BRACKET, RR. TRACK SUSP
-
148HK-21954-00-00 ......BRACKET, RR. TRACK SUSP......BRACKET, RR. TRACK SUSP
-
1595812-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1690201-10035-00 ...WASHER, PLATE...WASHER, PLATE
-
178GL-2194H-00-00 ......PROTECTOR, MUFFLER......PROTECTOR, MUFFLER
-
188GL-2197N-00-00 ......BRACKET 7......BRACKET 7
-
198GL-21923-00-00 ......REINEFORCEMENT, FRAME REA......REINEFORCEMENT, FRAME REA
-
208CR-2194N-00-00 ......BRACKET, FUEL TANK 1......BRACKET, FUEL TANK 1
-
2190267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW) QTY.104...RIVET, BLIND (4.7X16.4 YELLOW) QTY.104
-
228GL-22512-00-00 ......BRACKET 8......BRACKET 8
-
238GL-21295-00-00 ......NUT......NUT
-
2490267-48010-00 ....RIVET, BLIND (4.8X12 YELLOW)....RIVET, BLIND (4.8X12 YELLOW)
-
2590267-48023-00 ...RIVET, BLIND (4.8X12.1 YELL...RIVET, BLIND (4.8X12.1 YELL
-
268HK-21961-00-00 ......PATCH 1......PATCH 1
-
278HK-21963-00-00 ......PATCH 3......PATCH 3
-
288HK-21964-00-00 ......PATCH 4......PATCH 4
-
2990267-48016-00 ...RIVET, BLIND (4.8X16.4 YELLOW)...RIVET, BLIND (4.8X16.4 YELLOW)
-
308HK-21965-00-00 ......PATCH 5......PATCH 5
-
318HK-21966-00-00 ......PATCH 6......PATCH 6
-
3292012-10016-00 ......BOLT, BUTTON HEAD......BOLT, BUTTON HEAD
-
3390176-10075-00 ......NUT, CROWN......NUT, CROWN
-
3490267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
3590267-48177-00 ......RIVET, BLIND (4.8X14 YELL......RIVET, BLIND (4.8X14 YELL
-
368GL-21925-00-00 ...REINF., HOUSING 1...REINF., HOUSING 1
-
378GL-21930-00-00 ...HOUSING, REINF SUB-ASSY (RIGHT HAND)...HOUSING, REINF SUB-ASSY (RIGHT HAND)
-
3893306-20601-00 ......BEARING......BEARING
-
3999009-62500-00 ...CIRCLIP...CIRCLIP
-
4093102-30012-00 ......OIL SEAL......OIL SEAL
-
418GL-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
428GL-21915-00-00 ...PANEL, SUB FRAME 4...PANEL, SUB FRAME 4
-
4390267-47195-00 .RIVET, BLIND (4.7X16.4 YELLOW).RIVET, BLIND (4.7X16.4 YELLOW)
-
4492012-08016-00 .BOLT, BUTTON HEAD.BOLT, BUTTON HEAD
-
4597012-08016-00 ...BOLT...BOLT
-
4690267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)...RIVET, BLIND (4.8X12 YELLOW)
-
4790462-08061-00 ...CLAMP...CLAMP
-
4890462-08064-00 ...CLAMP...CLAMP
-
498GL-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
5090201-08512-00 ...WASHER, PLATE...WASHER, PLATE
-
518GL-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
528GL-21970-02-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
538JH-83386-00-00 STAY, BUZZERSTAY, BUZZER
-
5490480-14004-00 GROMMETGROMMET
-
5590387-07391-00 COLLARCOLLAR
-
5690201-06057-00 WASHER, PLATEWASHER, PLATE
-
5795822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
5890462-06022-00 CLAMPCLAMP
-
5990267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
6095827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
618GL-21920-00-00 HOUSING, REINF SUB-ASSY (LEFT HAND)HOUSING, REINF SUB-ASSY (LEFT HAND)
-
6295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
638GL-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
6490267-47195-00 .RIVET, BLIND (4.7X16.4 YELLOW).RIVET, BLIND (4.7X16.4 YELLOW)
-
658GL-2194L-00-00 ...STAY, MUFFER...STAY, MUFFER
-
668GL-21946-00-00 ...BRACKET, SEAT FITTING...BRACKET, SEAT FITTING
-
6790176-06016-00 NUT, CROWNNUT, CROWN
-
688GL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
698GL-22152-00-00 SEAL, GUARDSEAL, GUARD
-
708GL-21967-00-00 PATCH 7PATCH 7
-
718GL-21988-00-00 PATCH 8PATCH 8
-
728GL-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
738GL-2196M-00-00 BRACKET, 5BRACKET, 5
-
748GL-2197M-00-00 BRACKET, 6BRACKET, 6
-
758GL-21443-00-00 BRACKET, PROTECTOR REARBRACKET, PROTECTOR REAR
-
768GL-27471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
778GL-27472-00-00 BAR, FOOTREST 2BAR, FOOTREST 2
-
7892012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7995812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
808GL-21151-00-00 BRACKET, REAR FENDER 1BRACKET, REAR FENDER 1
-
818GL-21152-00-00 BRACKET, REAR FENDER 2BRACKET, REAR FENDER 2
-
82180-22117-00-00 CAPCAP
-
8390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
8490267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
858GL-21852-00-00 DAMPERDAMPER
-
868GL-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
878FS-2312G-00-00 PLUGPLUG
-
8890267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
8990520-05012-00 DAMPER, PLATEDAMPER, PLATE
