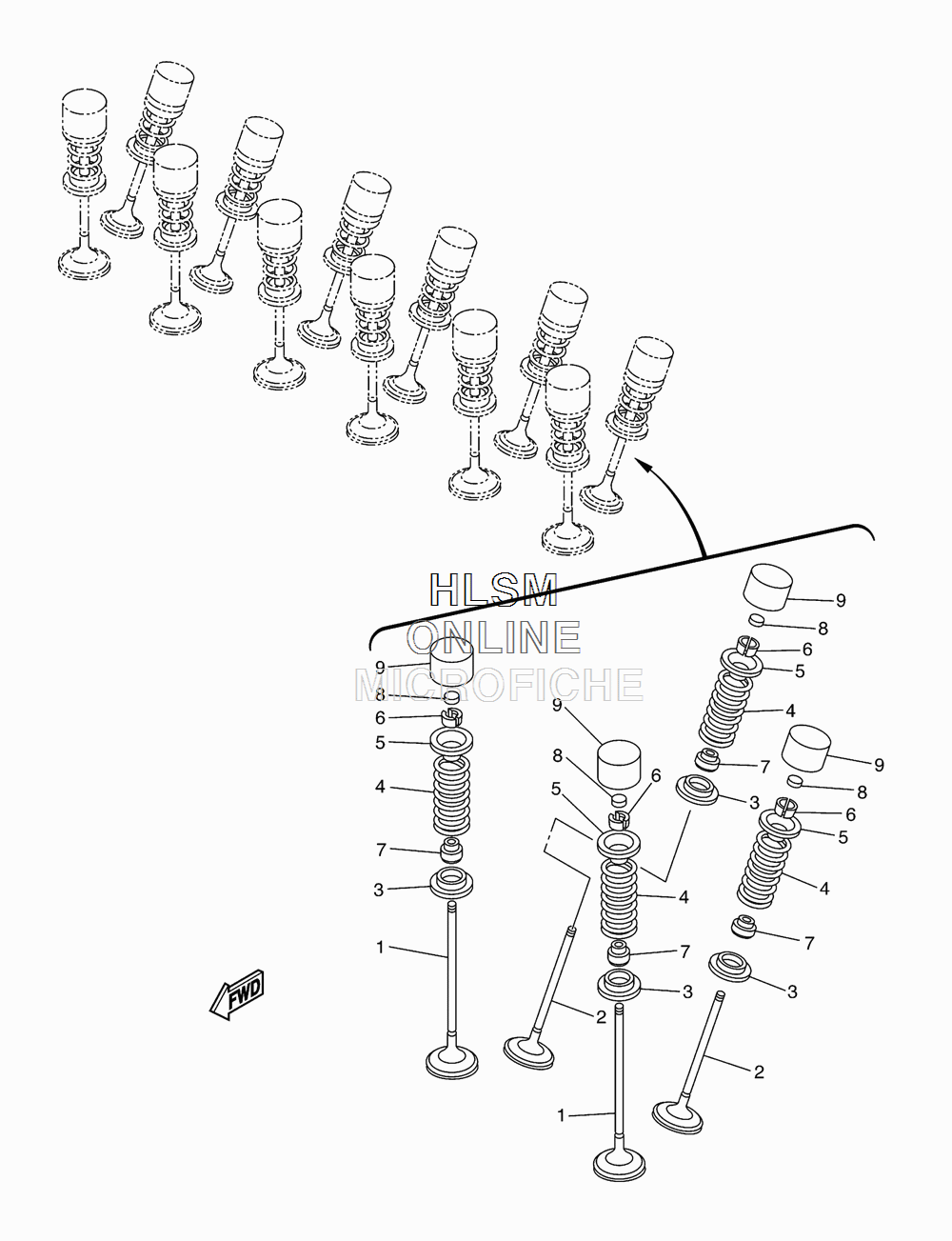

VALVE ASSY для Yamaha FX NYTRO XTX 175 - 2013 года выпуска`
-
№АртикулНазвание
-
18GL-12111-01-00 VALVE, INTAKEVALVE, INTAKE
-
28GL-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
33D7-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
48GL-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
53D7-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
61WG-12118-00-00 COTTER, VALVECOTTER, VALVE
-
74TE-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
81HX-12168-H1-00 PAD, ADJUSTING 2 (1.55)PAD, ADJUSTING 2 (1.55)
-
81HX-12168-K1-00 PAD, ADJUSTING 2 (1.60)PAD, ADJUSTING 2 (1.60)
-
81HX-12168-F0-00 PAD, ADJUSTING 2 (1.50)PAD, ADJUSTING 2 (1.50)
-
81HX-12168-A0-00 PAD, ADJUSTING 2 (1.45)PAD, ADJUSTING 2 (1.45)
-
81HX-12168-80-00 PAD, ADJUSTING 2 (1.40)PAD, ADJUSTING 2 (1.40)
-
81HX-12168-60-00 PAD, ADJUSTING 2 (1.35)PAD, ADJUSTING 2 (1.35)
-
81HX-12168-40-00 PAD, ADJUSTING 2 (1.30)PAD, ADJUSTING 2 (1.30)
-
81HX-12168-20-00 PAD, ADJUSTING 2 (1.25)PAD, ADJUSTING 2 (1.25)
-
81HX-12168-00-00 PAD, ADJUSTING 2 (1.20)PAD, ADJUSTING 2 (1.20)
-
81HX-12168-M1-00 PAD, ADJUSTING 2 (1.65)PAD, ADJUSTING 2 (1.65)
-
81HX-12169-T0-00 PAD, ADJUSTING 2 (2.40)PAD, ADJUSTING 2 (2.40)
-
81HX-12168-R1-00 PAD, ADJUSTING 2 (1.70)PAD, ADJUSTING 2 (1.70)
-
81HX-12168-U1-00 PAD, ADJUSTING 2 (1.75)PAD, ADJUSTING 2 (1.75)
-
81HX-12168-W1-00 PAD, ADJUSTING 2 (1.80)PAD, ADJUSTING 2 (1.80)
-
81HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85)PAD, ADJUSTING 2 (1.85)
-
81HX-12169-11-00 PAD, ADJUSTING 2 (1.90)PAD, ADJUSTING 2 (1.90)
-
81HX-12169-31-00 PAD, ADJUSTING 2 (1.95)PAD, ADJUSTING 2 (1.95)
-
81HX-12169-50-00 PAD, ADJUSTING 2 (2.00)PAD, ADJUSTING 2 (2.00)
-
81HX-12169-70-00 PAD, ADJUSTING 2 (2.05)PAD, ADJUSTING 2 (2.05)
-
81HX-12169-90-00 PAD, ADJUSTING 2 (2.10)PAD, ADJUSTING 2 (2.10)
-
81HX-12169-E0-00 PAD, ADJUSTING 2 (2.15)PAD, ADJUSTING 2 (2.15)
-
81HX-12169-G0-00 PAD, ADJUSTING 2 (2.20)PAD, ADJUSTING 2 (2.20)
-
81HX-12169-J0-00 PAD, ADJUSTING 2 (2.25)PAD, ADJUSTING 2 (2.25)
-
81HX-12169-L0-00 PAD, ADJUSTING 2 (2.30)PAD, ADJUSTING 2 (2.30)
-
81HX-12169-N0-00 PAD, ADJUSTING 2 (2.35)PAD, ADJUSTING 2 (2.35)
-
94C8-12153-09-00 LIFTER, VALVE (O/S) (GREEN)LIFTER, VALVE (O/S) (GREEN)
-
94C8-12153-10-00 LIFTER, VALVE (YELLOW)LIFTER, VALVE (YELLOW)
