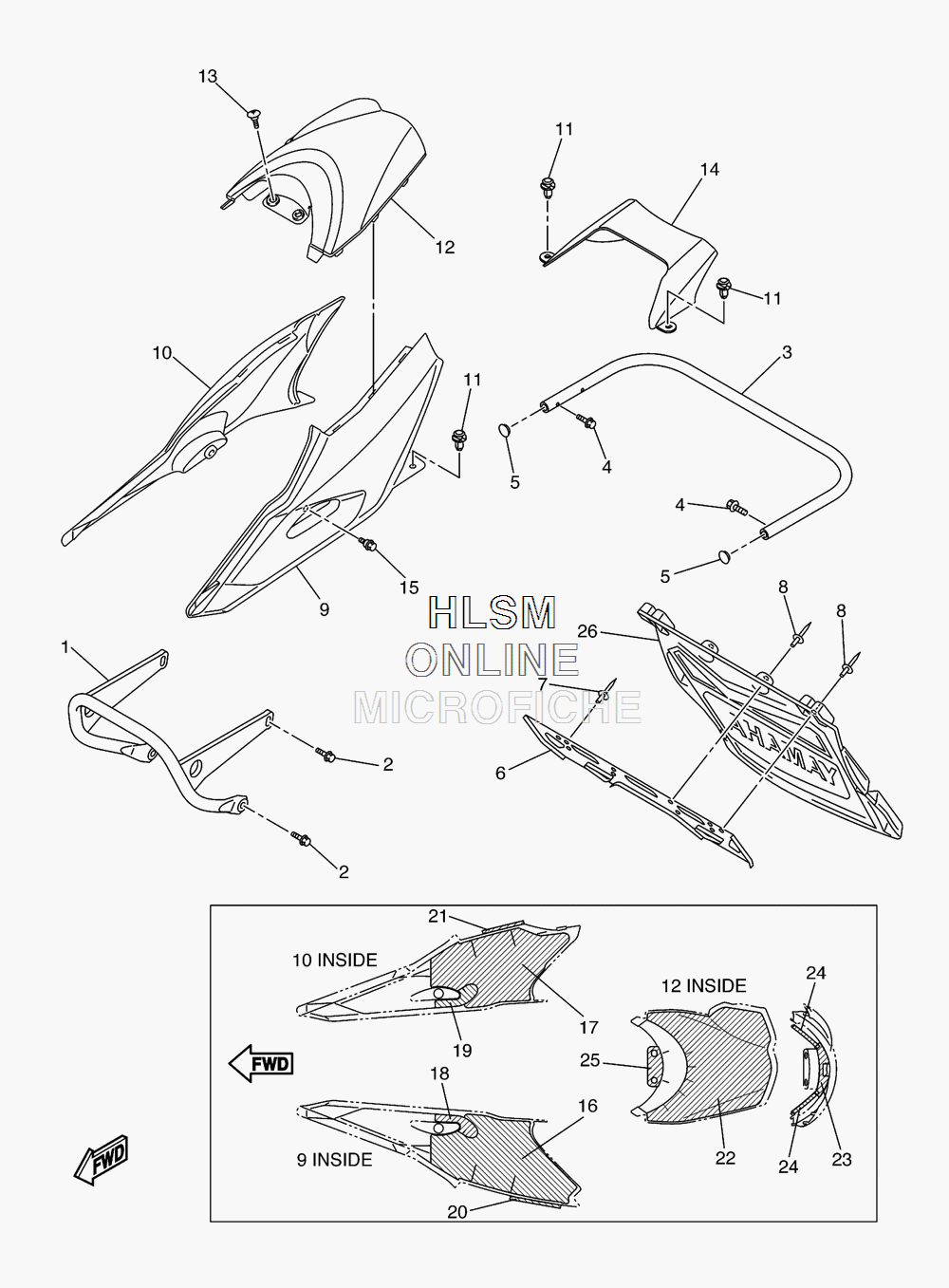

BUMPER - FRONT AND REAR для Yamaha FX NYTRO RTX - 2013 года выпуска`
-
№АртикулНазвание
-
18JH-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
38HK-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
590338-21145-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
68GL-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
790267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
890267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
98GL-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
108GL-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1190269-08006-00 RIVETRIVET
-
128GL-24756-00-00 COVER, TAILCOVER, TAIL
-
1390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
148GL-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
1590109-06174-00 BOLTBOLT
-
168GL-77551-00-00 PROTECTOR 1PROTECTOR 1
-
178GL-77552-00-00 PROTECTOR 2PROTECTOR 2
-
188GL-77553-00-00 PROTECTOR 3PROTECTOR 3
-
198GL-77554-00-00 PROTECTOR 4PROTECTOR 4
-
208GL-77555-00-00 PROTECTOR 5PROTECTOR 5
-
218GL-77555-10-00 PROTECTOR 5PROTECTOR 5
-
228GL-77556-00-00 PROTECTOR 6PROTECTOR 6
-
238GL-77557-00-00 PROTECTOR 7PROTECTOR 7
-
248GL-7717E-00-00 TAPE 1TAPE 1
-
258GL-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
268GT-K7595-00-00 FLAPFLAP
