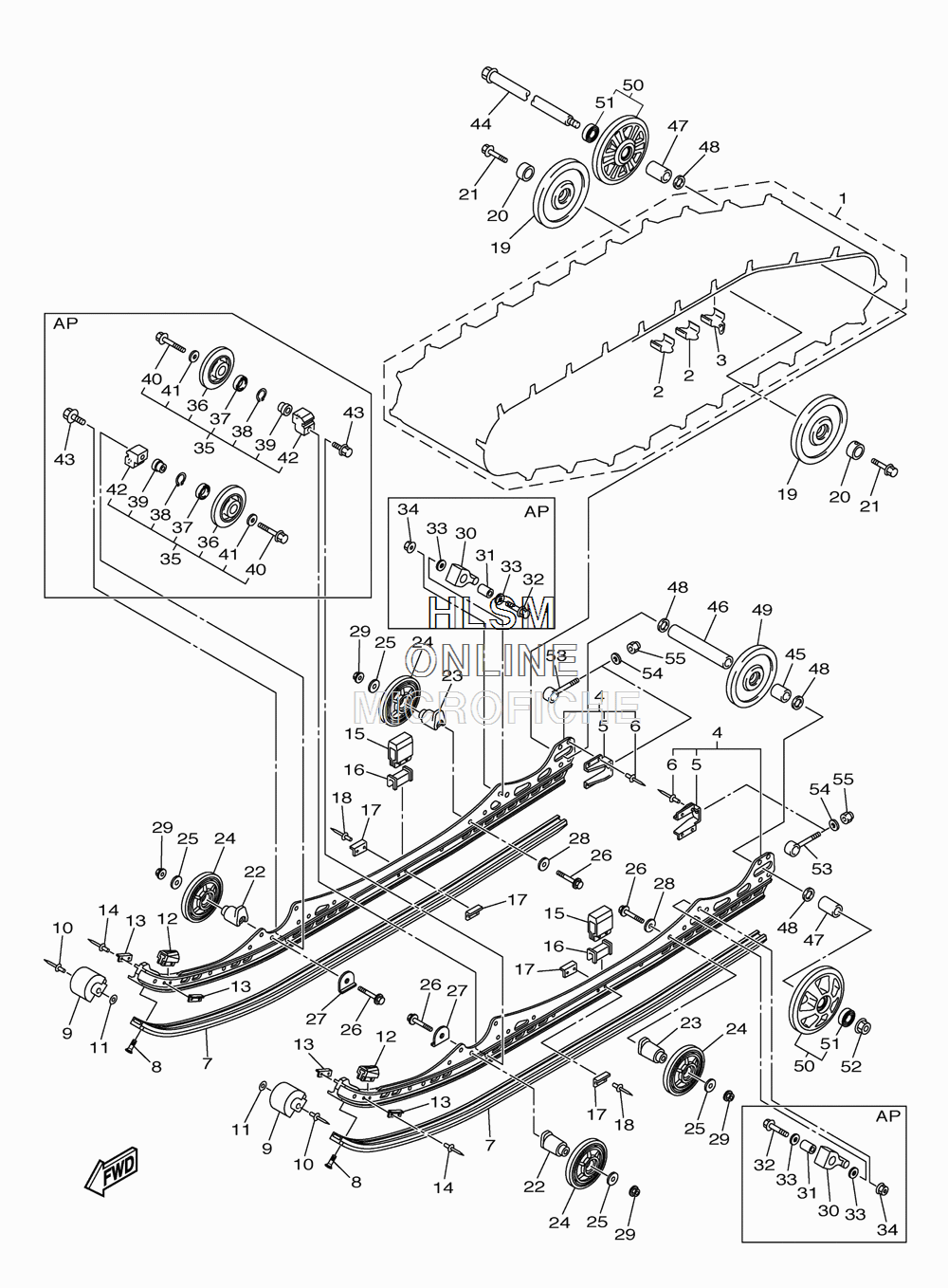

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO MTX 153 - 2013 года выпуска`
-
№АртикулНазвание
-
18HA-47110-10-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48HU-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
58DM-4741B-00-00 ...BRACKET...BRACKET
-
68V0-47468-00-00 ...RIVET...RIVET
-
78HU-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
98GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1090267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1190201-047R8-00 WASHER, PLATEWASHER, PLATE
-
128ES-47456-00-00 DAMPER 1DAMPER 1
-
138K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1490267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
158GL-47457-00-00 DAMPER 2DAMPER 2
-
168GL-47573-00-00 SPACERSPACER
-
178AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1890267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
198AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2090387-25005-00 COLLARCOLLAR
-
2190109-10030-00 BOLTBOLT
-
228ES-47419-20-00 BRACKET 7BRACKET 7
-
238ES-47419-00-00 BRACKET 7BRACKET 7
-
248FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2590201-101U2-00 WASHER, PLATEWASHER, PLATE
-
2695812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
2790214-10004-00 WASHER, CLAWWASHER, CLAW
-
2890201-10052-00 WASHER, PLATEWASHER, PLATE
-
2995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
308JH-47496-00-00 STOPPER 2STOPPER 2
-
3190387-105G5-00 COLLARCOLLAR
-
3297012-10050-00 BOLTBOLT
-
3390201-10051-00 WASHER, PLATEWASHER, PLATE
-
3495602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
358GP-47320-10-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
368AC-47320-00-00 ...SUSPENSION WHEEL COMP....SUSPENSION WHEEL COMP.
-
3793306-00444-00 ...BEARING...BEARING
-
3899009-42500-00 ...CIRCLIP...CIRCLIP
-
398GP-47319-00-00 ...COLLAR...COLLAR
-
4095812-10045-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4190201-10052-00 ...WASHER, PLATE...WASHER, PLATE
-
428GP-47419-10-00 ...BRACKET 7...BRACKET 7
-
4390105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
448L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4590387-20015-00 COLLARCOLLAR
-
4690387-20016-00 COLLARCOLLAR
-
4790387-20019-00 COLLARCOLLAR
-
4890201-20022-00 WASHER, PLATEWASHER, PLATE
-
498CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
508HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5193306-00444-00 ...BEARING...BEARING
-
5295602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538DM-47479-00-00 COLLAR 3COLLAR 3
-
5492902-10600-00 WASHER, PLATEWASHER, PLATE
-
5595702-10300-00 NUT, NYLONNUT, NYLON
